A subscriber can originate calls from any of the configured locations. All other locations
are unable to originate calls until all calls are released.
It is recommended to use the phone number plus an index (<phoneNumber>_<index>)
when provisioning the unique AoR for each shared line, for example: 2405551111_2. If a
phone number does not exist, use the Media Access Control (MAC) address plus an index
(<macAddress>_<index>).
Application
Server
Bob's Phone
Joe's Phone
Subscriber Bob's Profile
Configuration
Line/Port:/AoR 2405551111_1
Auth UserID: bobsmith
Auth Password: bobs
Subscriber Joe's Profile
Configuration
Line/Port:/AoR 2405552222_1
Auth UserID: joebrown
Auth Password: joeb
Shared Call Appearance
Configuration
Bob's 2nd Line
Line/Port:/AoR 2405551111_2
Shared Call Appearance
Configuration
Joe's 2nd Line
Line/Port:/AoR 2405552222_2
Bob's Line
Joe's Line

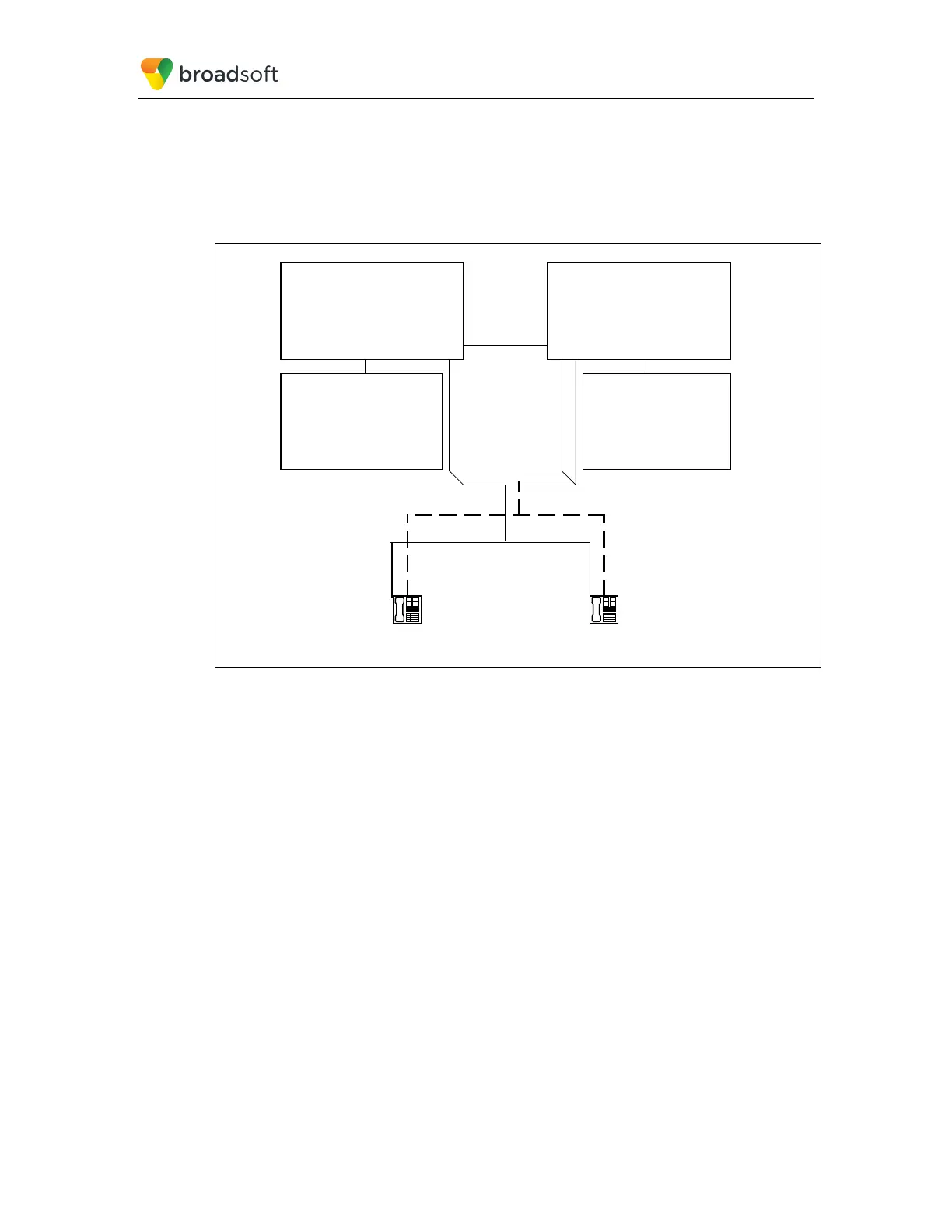

Figure 2 Shared Call Appearance Configuration
Figure 2 shows that Bob and Joe each have two lines and that Bob shares a line with Joe
and Joe shares a line with Bob. The figure also shows the applicable Subscriber Profile
and Shared Call Appearance configuration data for subscribers Bob and Joe.
When Bob (2405551111) is called, Bob’s first line and Joe’s second line ring. When Joe
(2405552222) is called, Joe’s first line and Bob’s second line ring.
The following steps show how to configure both phones for this Shared Call Appearance
configuration.
For configurations of SCA for the device, see the example in the following section.

Yealink SIP-T41S Specifications

General

Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Keypad illumination	Yes
Wi-Fi	No
Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Supported network protocols	SIP v1, SIP v2, LLDP/CDP/DHCP, OpenVPN, IEEE802.1X, IPv6, FTP/TFTP/HTTP/HTTPS
Volume control	Digital
Number of programmable keys	6
Lines quantity	6 lines
Phonebook capacity	1000 entries
Dual-Tone Multi-Frequency (DTMF) modes	In-band, Out-of band, SIP info
Input frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	1.2 A
AC adapter output voltage	5 V
Display diagonal	2.7 \
Display resolution	192 x 64 pixels
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Voice codecs	CNG, G.711Mu, G.711a, G.723.1, G.726, G.729ab, VAD, iLBC
Certification	CE
Cables included	LAN (RJ-45)
Number of handles included	1 pc(s)
Harmonized System (HS) code	85171800

Weight and Dimensions

Depth	189 mm
Width	212 mm
Height	175 mm
Package depth	223 mm
Package width	246 mm
Package height	120 mm
