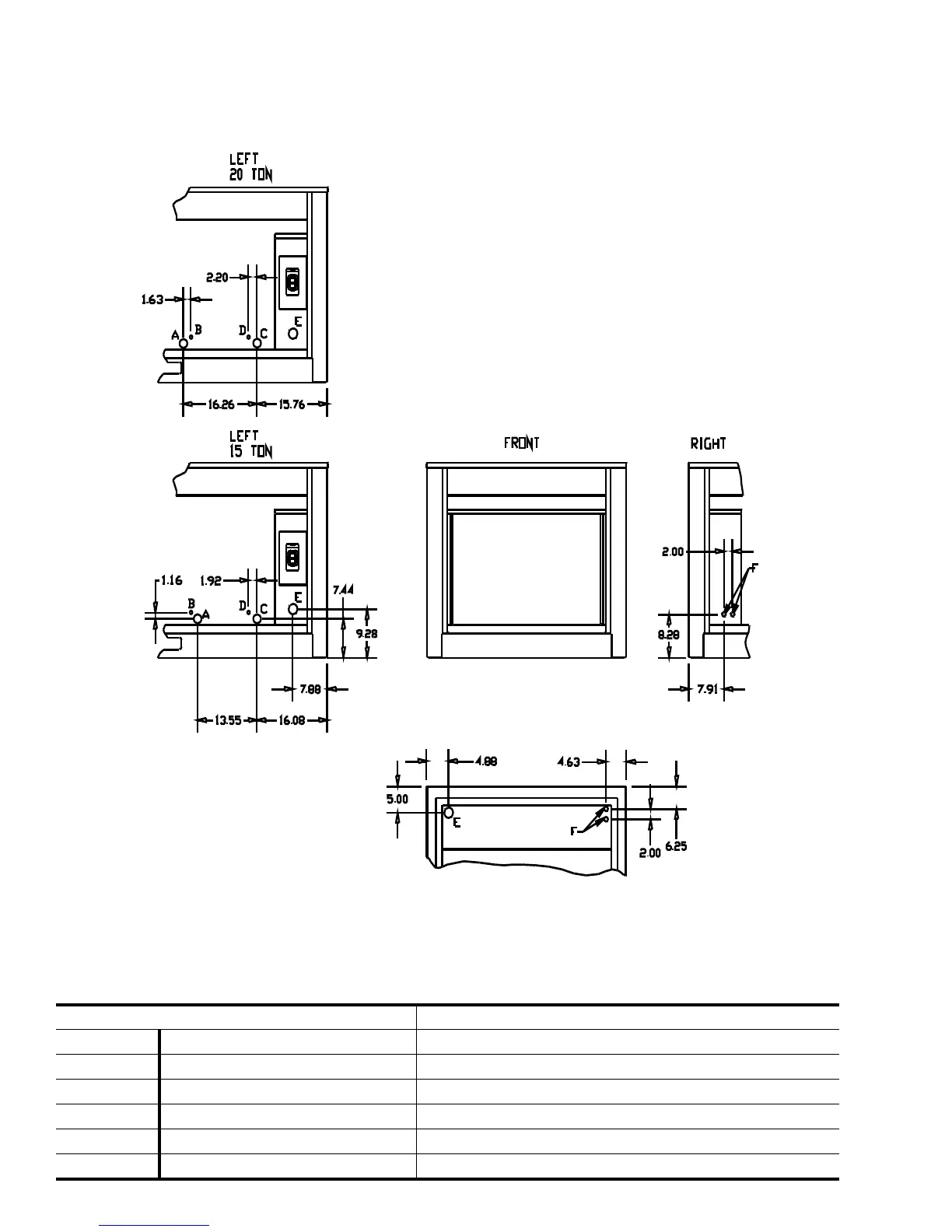

FIGURE 7 - PIPING AND ELECTRICAL CONNECTION LOCATIONS
TABLE 11: PIPING AND ELECTRICAL CONNECTION SIZES
CONNECTION ENTRY
SIZE
A
SUCTION LINE SYS. #1 1-1/8 ID (15 Ton); 1-3/8 ID (20 Ton)
B
LIQUID LINE SYS. #1 5/8 ID
C
SUCTION LINE SYS. #2 1-1/8 ID (15 Ton); 1-3/8 ID (20 Ton)
D
LIQUID LINE SYS. #2 5/8 ID
E
POWER WIRING 2” KO
F
CONTROL WIRING 7/8 KO
