036-21323-002-C-0206
Unitary Products Group
19

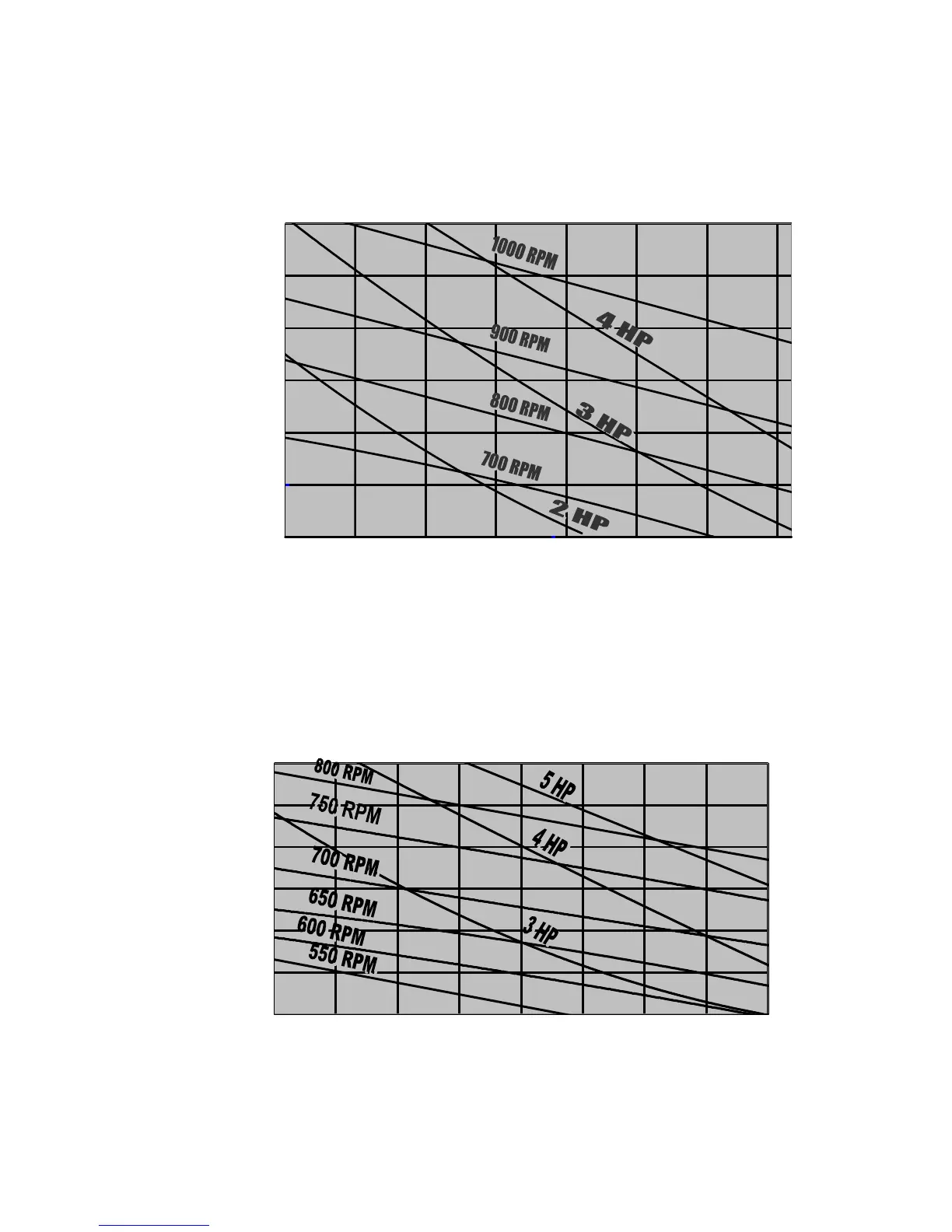

FIGURE 8 -
15 TON BLOWER PERFORMANC
E
15 TON BLOWER PERFORMANCE
0.4
0.6
0.8
1
1.2
1.4
1.6
4200
4700
5200
5700
6200
6700
7200
7700
CFM
ESP
FIGURE 9 -
20 TON BLOWER PERFORMANC
E
20 TON BLOWER PERFORMANCE
0.4
0.6
0.8
1
1.2
1.4
1.6
6000
6500
7000
7500
8000
8500
9000
9500
10000
CFM
ESP
18
20
Table of Contents
General Specifications
1
Outdoor Unit
1
Indoor Unit
1
Table of Contents
2
Description
3
Application Flexibility Outdoor
3
Application Flexibility Indoor
3
Typical Indoor Unit Applications
3
Outdoor Unit
4
Accessories
4
Indoor Product Nomenclature
4
Indoor Unit
5
Accessories Indoor Unit (Field Installed)
5
Indoor Product Nomenclature
5
Vertical Arrangements - Lb180 and Lb240
6
Horizontal Arrangements - Lb180 and Lb240
6
Unit Application Data
7
Ari Ratings - Cooling and Sound
7
Electrical Data Compressors
7
Electrical Data Fan Motors
7
Electrical Data, Outdoor Mca & Max
7
Fuse Size
7
Outdoor Unit Physical Data
8
Indoor Unit Physical Data
8
Corner Weight
9
Connections
9
Unit Clearances
9
Piping and Electrical Connection Locations
10
Piping and Electrical Connection Sizes
10
Refrigerant Line Charge
11
Suction Lines
12
Liquid Lines
12
15 Ton Capacity Table - 85° and 95°F
13
15 Ton Capacity Table - 105° and 115°F
14
15 Ton Capacity Table - 125°F
15
20 Ton Capacity Table - 85° and 95°F
16
20 Ton Capacity Table - 105° & 115°F
17
20 Ton Capacity Table - 125°F
18
Lb180 15 Ton Airflow Table
18
Lb240 20 Ton Airflow Table
18
15 Ton Blower Performance
19
Blower Drive Data
20
Blower Data
20
Indoor Electrical Ratings
20
Horizontal Application Corner Weights
21
Vertical Application Corner Weights
21
Indoor Unit Weights and Corner Weights
21
Unit Dimensions Lb180 and Lb240
22
Lb180 Supply Air Plenum Dimensions
23
Return Air Grille for Lb180 Dimensions
23
Guide Specifications
24
