036-21323-002-C-0206
Unitary Products Group 3
DESCRIPTION
Both the outdoor and indoor units are completely piped and
wired at the factory and are shipped ready for immediate
installation. Only the interconnecting liquid and suction lines,
control wiring, and the main power wiring are required to
complete the installation. Every outdoor unit is dehydrated,
evacuated, leak tested and pressure tested at 450 psig
before being pressurized with a holding charge of refrigerant-
22 for shipment and/or storage.
To eliminate the costly cabinet deterioration problems usually
associated with outdoor equipment, all sheet metal parts are
constructed of commercial grade (G90) galvanized steel.
After fabrication, each part is thoroughly cleaned to remove
any grease or dirt from its surfaces. The parts that will be
exposed to the weather are then coated with a desert sand
powder paint to assure a quality finish for many years. This
coating system has passed the 750-hour, salt spray test per
ASTM Standard B117.
APPLICATION FLEXIBILITY OUTDOOR
The outdoor units are lightweight and can be installed on
almost any roof.
Units can be lifted using nylon straps with hooks at the holes
provided in the base rails, or they may be lifted with a forklift
through the slotted openings in the base rails.
A quality appearance and low sound levels make these units
suitable for most ground level locations.
APPLICATION FLEXIBILITY INDOOR
The indoor units are built in a single cabinet with one conden-
sate drain pan. These units can be installed in either the verti-
cal or horizontal position for maximum flexibility.
NOTE: On vertical applications, the air velocity across the
indoor coil keeps the condensate from dripping off
the finned surface onto the filters.
NOTE: On horizontal applications the unit must be installed
with the condensate drain pan under the entire
indoor coil.
NOTE: The Supply Air Plenum and the Return Air Grille
accessories can be used on either arrangement.
NOTE: The Base accessory can only be used on the verti-
cal arrangement.

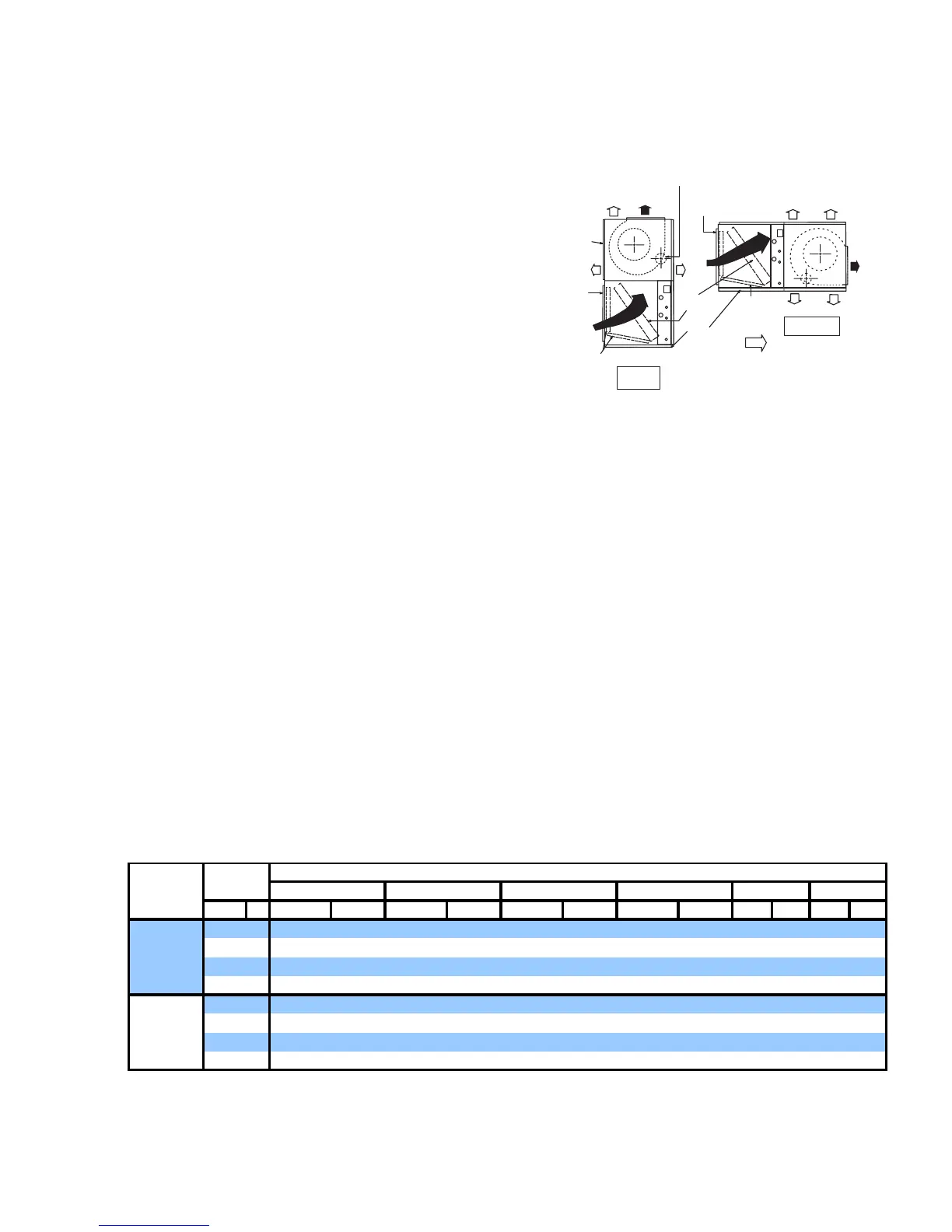

FIGURE 1 - TYPICAL INDOOR UNIT
APPLICATIONS
B L O W E R M O T O R
L O C A T I O N
R E T U R N A I R
D U C T F L A N G E
B L O W E R
S E C T I O N
A I R O U T
( S t d . A r r a n g e m e n t )
B L O W E R
S E C T I O N
R E T U R N A I
R
D U C T F L A N G E
A I R
I N
F I L T E R S
V E R T I C A L
P O S I T I O N
C O I L
S E C T I O N
E V A P O R A T O R
C O I L
H O R I Z O N T A L
P O S I T I O N
F I L T E R S
A L T E R N A T E A I R
D I S C H A R G E A R R A N G E M E N T S
N O T E :
C E R T A I N B L O W E R P O S I T I O N S A R E N O T R E C O M M E N D E D .
B E C A U S E T
H E B L O W E R M O T O R S H O U L D N O T B E M O U N T E D
U P S I D E D O W N .
CONDENSER ONLY CAPACITY
*Power consumption includes outdoor fans and compressors only.
PSIG ºF MBH KW* MBH KW* MBH KW* MBH KW* MBH KW* MBH KW*
61.5 35 255 17.2 243 18.6 231 20.1 219 21.9 207 23.9 195 26.2
68.5 40 275 17.6 263 19.0 250 20.6 238 22.4 225 24.4 212 26.7
76 45 296 18.1 283 19.5 270 21.1 257 22.9 243 24.9 230 27.2
84 50 319 18.7 305 20.0 291 21.6 277 23.4 263 25.5 248 27.7
61.5 35 191 12.7 182 13.7 172 14.9 163 16.2 153 17.7 143 19.4
68.5 40 207 13.0 197 14.0 187 15.2 177 16.5 167 18.0 157 19.8
76 45 224 13.3 214 14.4 203 15.5 193 16.9 182 18.4 171 20.2
84 50 241 13.7 230 14.7 219 15.9 208 17.3 197 18.8 186 20.6
240
180
Model HB
Suction
Press. &
Temperature of Air on Condenser Coil, ºF
65 75 85 95 105 115
