SECTION 2 - OPTIVIEW™ CONTROL CENTER
Optiview Control Center
COMMS SCREEN
Overview
This screen allows definition of the necessary commu-
nications parameters. Refer to Printer Section of this
book for details of the printer connections and setup.
Presently, there are no COM 2 communications fea-
tures available.
Display Only
None
Programmable
Chiller ID
Access Level Required: OPERATOR
Define the numeric chiller ID when used within an ISN
network of chillers. This ID number is also printed at
the top of reports obtained with a local printer.
Printer Setup and COM 2 Setup
Access Level Required: OPERATOR
Pressing either key places a green selection box around
the first changeable parameter. Use the ▲ and ▼ keys
to place the selection box around the desired param-
eter to be changed. With the selection box around the
desired parameter, press the ENTER (√) key. A dialog
box is displayed permitting data entry.

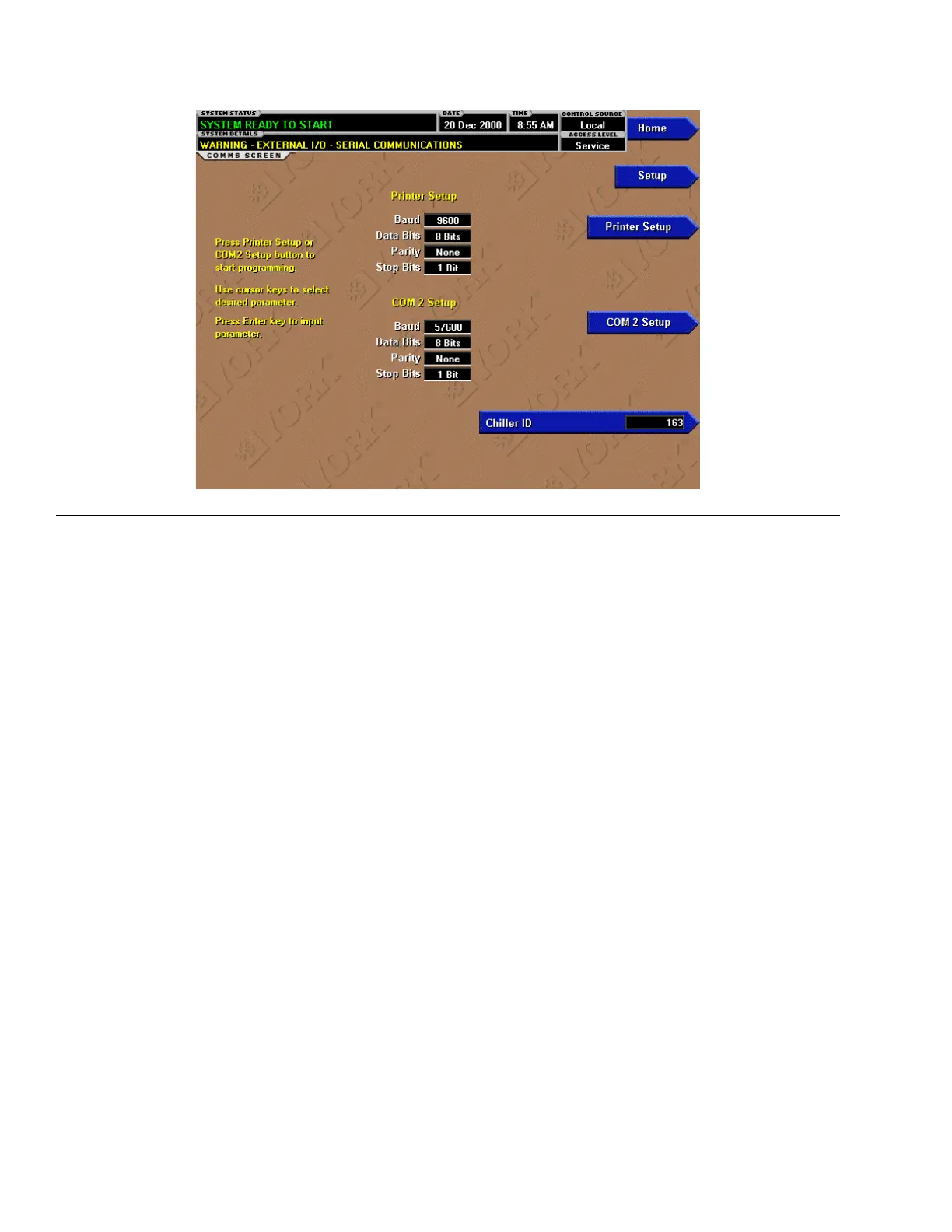

FIGURE 20 - COMMS SCREEN
00470VIP
Printer Baud Rate
Access Level Required: OPERATOR
Define the baud rate at which the panel shall commu-
nicate to the printer.
Printer Data Bit(s)
Access Level Required: OPERATOR
Define the number of data bits with which the panel
shall communicate to the printer.
Printer Parity Bit(s)
Access Level Required: OPERATOR
Define the number of parity bits with which the panel
shall communicate to the printer.
Printer Stop Bit(s)
Access Level Required: OPERATOR
Define the number of stop bits with which the panel
shall communicate to the printer.
COM 2 Baud Rate
Access Level Required: OPERATOR
Define the baud rate at which the panel shall communi-
cate through the modem port.
