JOHNSON CONTROLS
60
FORM 160.81-O1 (1020)
ISSUE DATE 10/05/2020
SECTION 2 - OPTIVIEW™ CONTROL CENTER
Optiview Control Center
PRINTER SCREEN
Overview
This screen allows definition of the necessary com-
munications parameters for the printer. Refer to Printer
Section of this book for details of the printer connec-
tions and setup.
Display Only
Time Remaining Until Next Print
Displays the time until the next print log will occur, if
the function is enabled.
Programmable
Log Start Time
Access Level Required: OPERATOR
Set the time at which scheduled print logs will begin.
Output Interval
Access Level Required: OPERATOR
Define the interval at which log printing will occur.
Automatic Printer Logging (Enabled / Disabled)
Access Level Required: OPERATOR
Enable the printer to begin printing status reports be-
ginning at the programmed start time and recurring at
the interval defined above.
Printer Type
Access Level Required: OPERATOR
Define the printer type connected to the chiller system.
Print Report
Access Level Required: OPERATOR
Select the report type to print when the PRINT REPORT
key is selected. This can vary from status report (pres-
ent system parameters), setpoints report (present value of
the system setpoints), Schedule report (present value of
the system schedule times), or a Sales Order Data report
(information provided on the SALES ORDER screen). A
print report is generated upon completion of selection.
Print All Histories
Access Level Required: OPERATOR
Generate a report of the system data at the time of all
stored shutdowns.
Navigation
Home
Access Level Required: VIEW
Causes an instant return to the HOME screen.
Setup
Access Level Required: VIEW
Return to the SETUP screen.

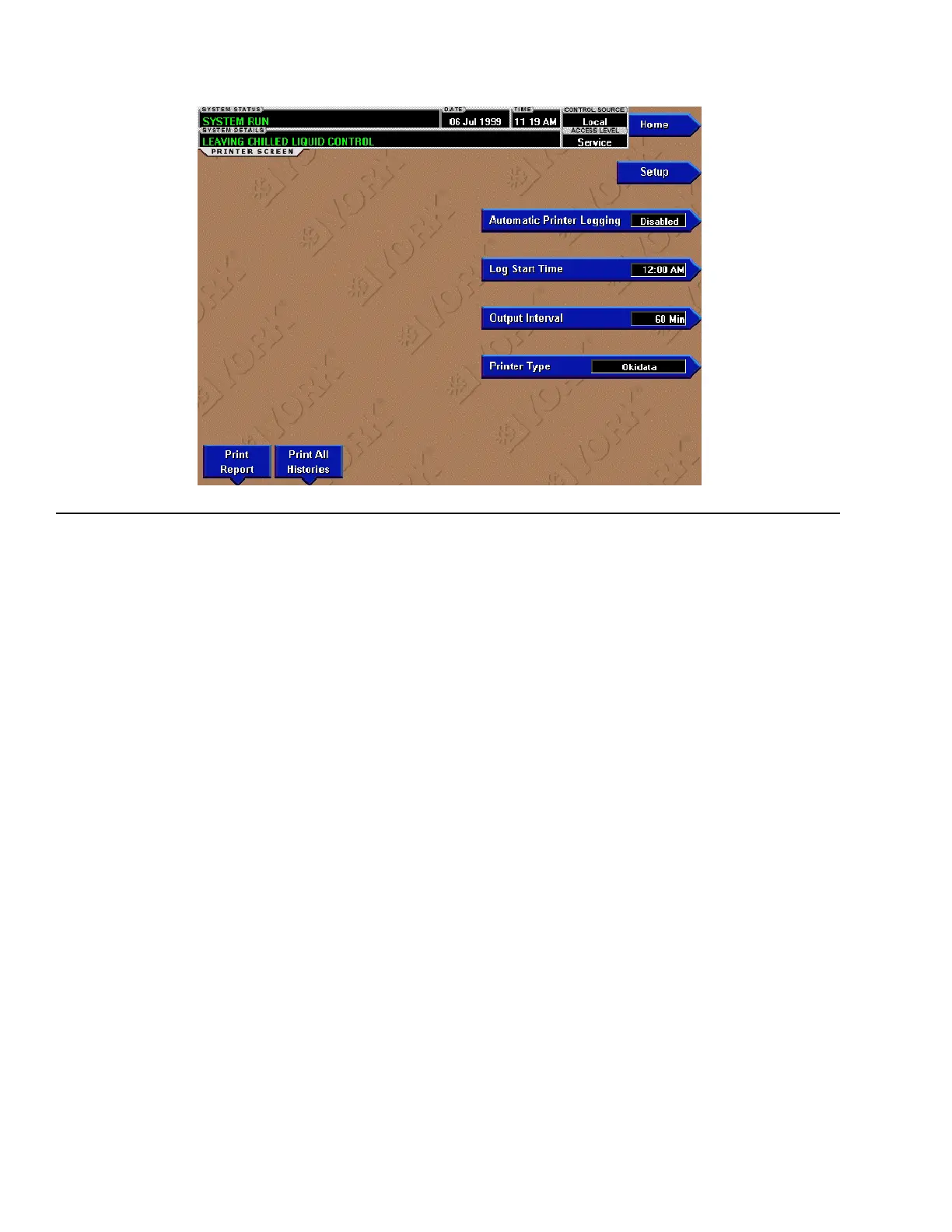

FIGURE 21 - PRINTER SCREEN
00235VIP
