Zebra 110Xi4 User Manual

Routine Maintenance
Cleaning Schedule and Procedures
124
P1009874-001 Xi4 User Guide 3/12/09
Clean the Snap Plate
Clean the snap plate when label adhesive or a label is stuck to the underside. Figure 20 shows
the location of the snap plate.

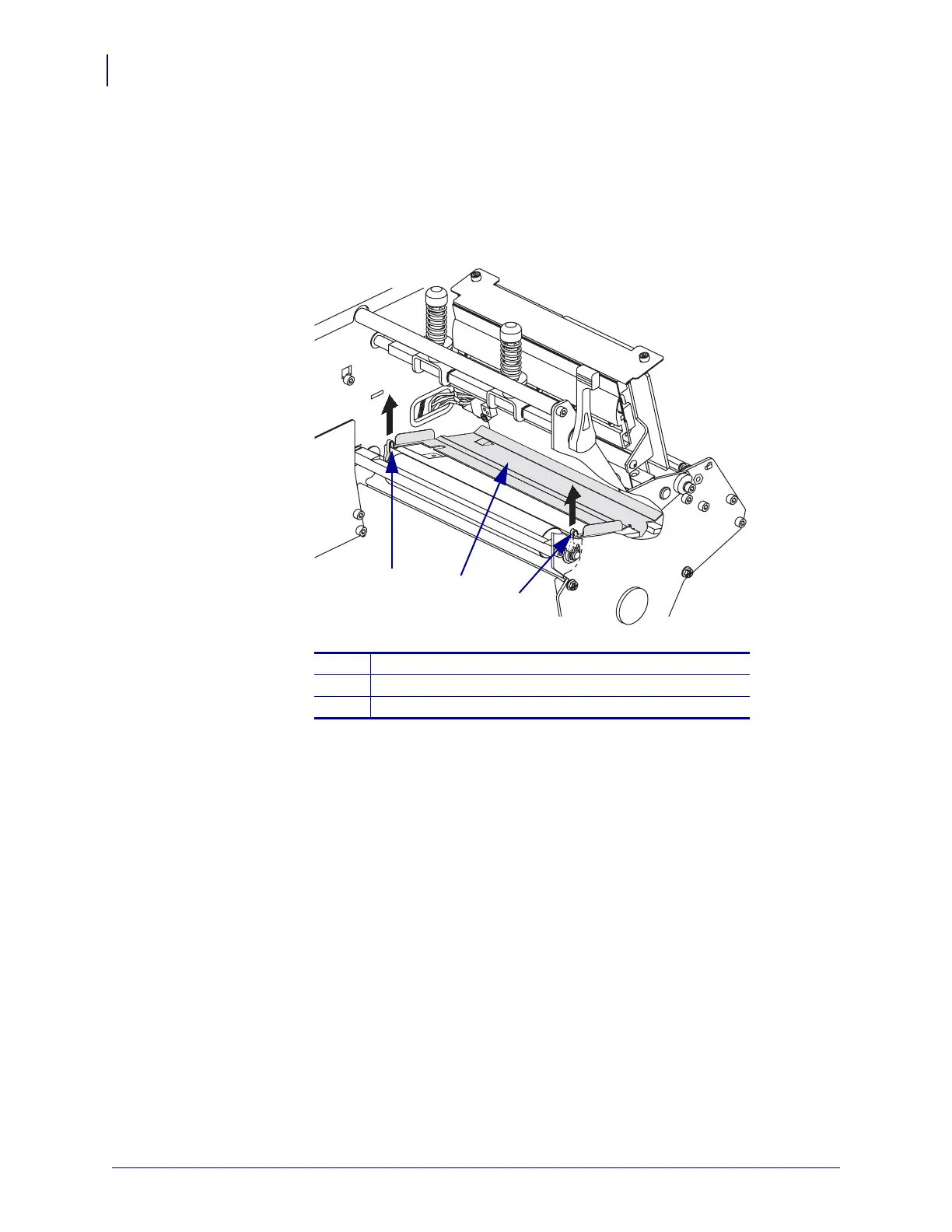

Figure 20 • Snap Plate Location
To clean the snap plate, complete these steps:
1. See Figure 20. Insert a small-blade screwdriver or similar tool into the loop on the left side
of the snap plate.
2. Gently lift the left side of the snap plate.
3. Insert a small-blade screwdriver or similar tool into the loop on the right side of the snap
plate.
4. Gently lift the right side of the snap plate.
5. Remove the snap plate from the printer.
6. Using the swab from the Preventive Maintenance Kit (part number 47362), clean the snap
plate. In place of the Preventive Maintenance Kit, you may use a clean swab or soft cloth
dipped in a solution of isopropyl alcohol (minimum 90%) and deionized water (maximum
10%). Allow the solvent to evaporate.
1
Left loop
2
Snap plate
3
Right loop
1
2
3

Zebra 110Xi4 Specifications

General

Maximum resolution	203 x 203 DPI
Core diameter	76 mm
Ribbon length	300 m
Media thickness	0.076 - 0.305 mm
Maximum media length	3810 mm
Maximum roll diameter	203 mm
Supported paper width	102 mm
Media thickness (imperial)	0.003 - 0.012 \
Maximum media length (imperial)	150 \
Supported paper width (imperial)	4 \
RS-232 ports	1
Standard interfaces	USB 2.0
Connectivity technology	Wired
Weight (imperial)	50 lbs
Dimensions (WxDxH)	261.9 x 517.5 x 393.7 mm
Flash memory	8 MB
Certification	-BSMI, -cTUVus, -CCC, -CE, -C-Tick, -EN55022 Class B, -EN55024, -EN61000-3-2, 3, -FCC Class B, -GOST-R, -ICES-003 Class B, -IEC 60950-1 / EN60950, -KCC, -NOM, -S Mark, -STB, -UkrSEPRO, -VCCI, -ZIK.
Internal memory	16 MB
Built-in barcodes	Code 39, Code 49, Code 93, MaxiCode, PDF417, Postnet, QR Code, UPC-A, UPC-E
Page description languages	XML, ZPL, ZPL II
Storage temperature (T-T)	-40 - 140 °F
Operating temperature (T-T)	5 - 40 °C
Storage relative humidity (H-H)	5 - 85 %
Operating relative humidity (H-H)	20 - 85 %
Power requirements	90 - 264 VAC, 48 - 62 Hz

Weight and Dimensions

Weight	22700 g
