Adjust Printhead Pressure and Toggle Position
3/12/09 Xi4 User Guide P1009874-001
Adjust Printhead Pressure and Toggle Position
Print quality depends on the labels and ribbon used as well as the toggle pressure and position.
Make sure that your labels and ribbon are acceptable for your application. If they are, check
the toggle position and then the printhead pressure.
Toggle Position Adjustment
You may need to adjust the toggles if printing is too light on one side or if thick labels are used.
If the toggle pressure is too light or uneven, the labels and ribbon may slip.
To position the toggles, complete these steps:

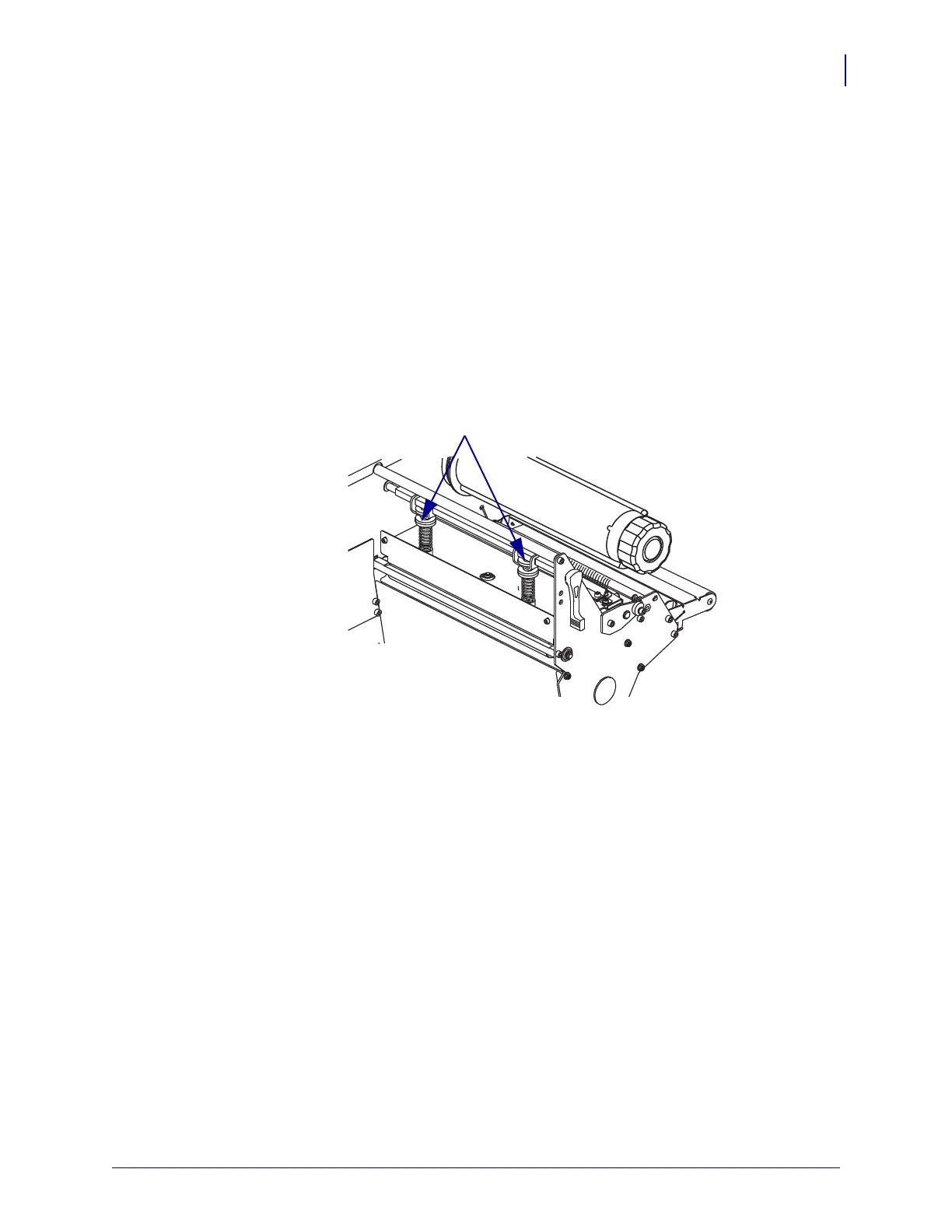

1. Loosen the locking nuts (1) at the top of the toggle assemblies.
2. Slide the toggles until they provide even pressure on the media. For extremely narrow
media, position one toggle over the center of the labels, and decrease the pressure on the
unused toggle.
3. Tighten the locking nuts.
