Introduction
Control Panel
3/12/09 Xi4 User Guide P1009874-001
Control Panel
All controls and indicators for the printer are located on the control panel (Figure 3).
•The control panel Liquid Crystal Display (LCD) shows the operating status and printer
parameters.
•The control panel buttons are used to control the printer operations and to set parameters.
•The control panel lights (LEDs) show the printer’s operating status or indicate which
control panel buttons are active.

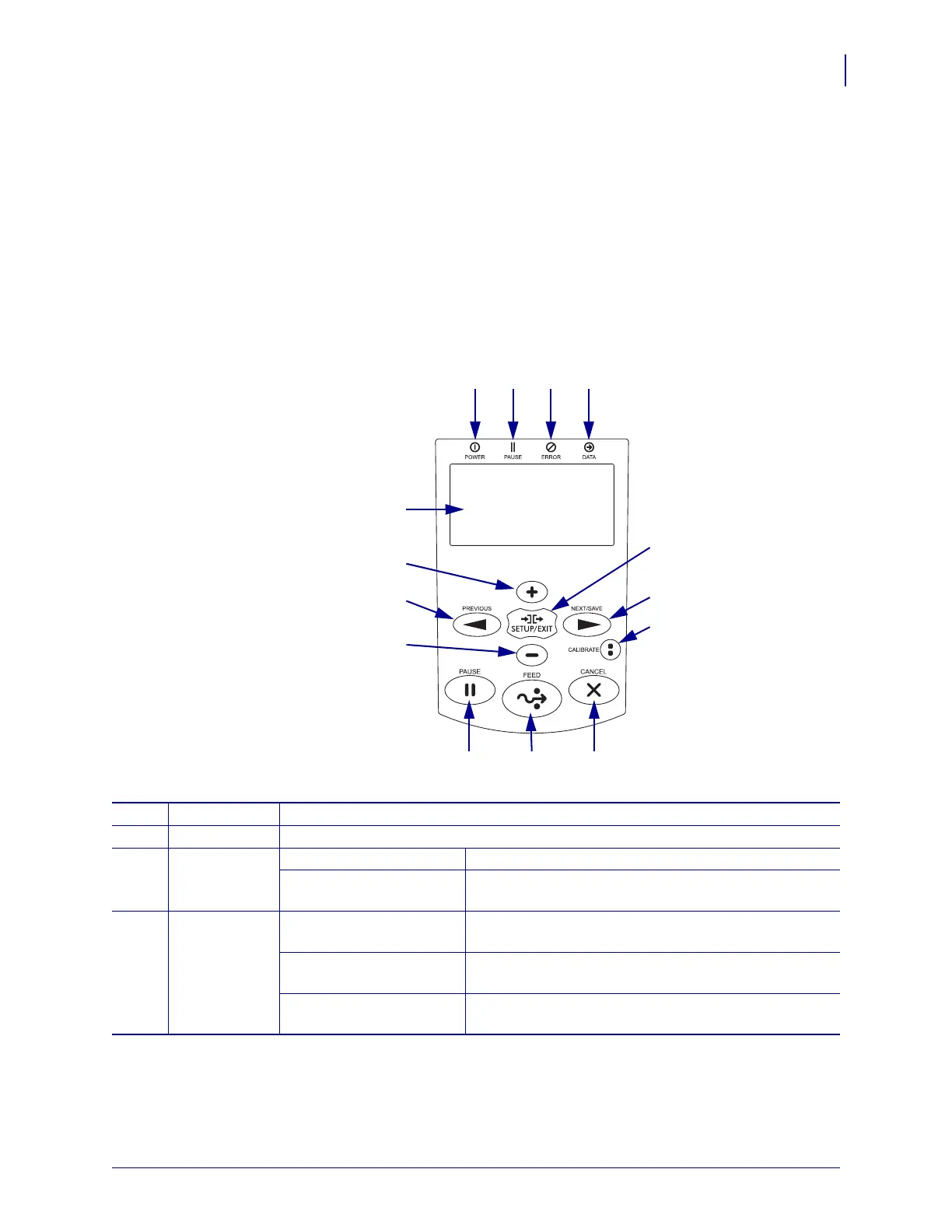

Figure 3 • Location of Control Panel Buttons and Lights
1 2 3 4
5
7
12 13 14
11
6
8
10
9
1
Power light On when the printer is on.
2
PAUSE light On when the printer is paused.
3
Error light Off Normal operation—no printer errors.
Blinking A printer error exists. Check the LCD for more
information.
4
Data light Off Normal operation. No data being received or
processed.
On The printer is processing data or is printing. No data is
being received.
Blinking quickly The printer is receiving data from or sending status
information to the host computer.

Zebra 110Xi4 Specifications

General

Maximum resolution	203 x 203 DPI
Core diameter	76 mm
Ribbon length	300 m
Media thickness	0.076 - 0.305 mm
Maximum media length	3810 mm
Maximum roll diameter	203 mm
Supported paper width	102 mm
Media thickness (imperial)	0.003 - 0.012 \
Maximum media length (imperial)	150 \
Supported paper width (imperial)	4 \
RS-232 ports	1
Standard interfaces	USB 2.0
Connectivity technology	Wired
Weight (imperial)	50 lbs
Dimensions (WxDxH)	261.9 x 517.5 x 393.7 mm
Flash memory	8 MB
Certification	-BSMI, -cTUVus, -CCC, -CE, -C-Tick, -EN55022 Class B, -EN55024, -EN61000-3-2, 3, -FCC Class B, -GOST-R, -ICES-003 Class B, -IEC 60950-1 / EN60950, -KCC, -NOM, -S Mark, -STB, -UkrSEPRO, -VCCI, -ZIK.
Internal memory	16 MB
Built-in barcodes	Code 39, Code 49, Code 93, MaxiCode, PDF417, Postnet, QR Code, UPC-A, UPC-E
Page description languages	XML, ZPL, ZPL II
Storage temperature (T-T)	-40 - 140 °F
Operating temperature (T-T)	5 - 40 °C
Storage relative humidity (H-H)	5 - 85 %
Operating relative humidity (H-H)	20 - 85 %
Power requirements	90 - 264 VAC, 48 - 62 Hz

Weight and Dimensions

Weight	22700 g
