Load Media in Rewind Mode
3/12/09 Xi4 User Guide P1009874-001
Load Media in Rewind Mode
Rewind mode (Figure 10) allows the media to be wound on a core after printing. This section
shows how to load media for Rewind mode in printers that do not have a Cutter option.

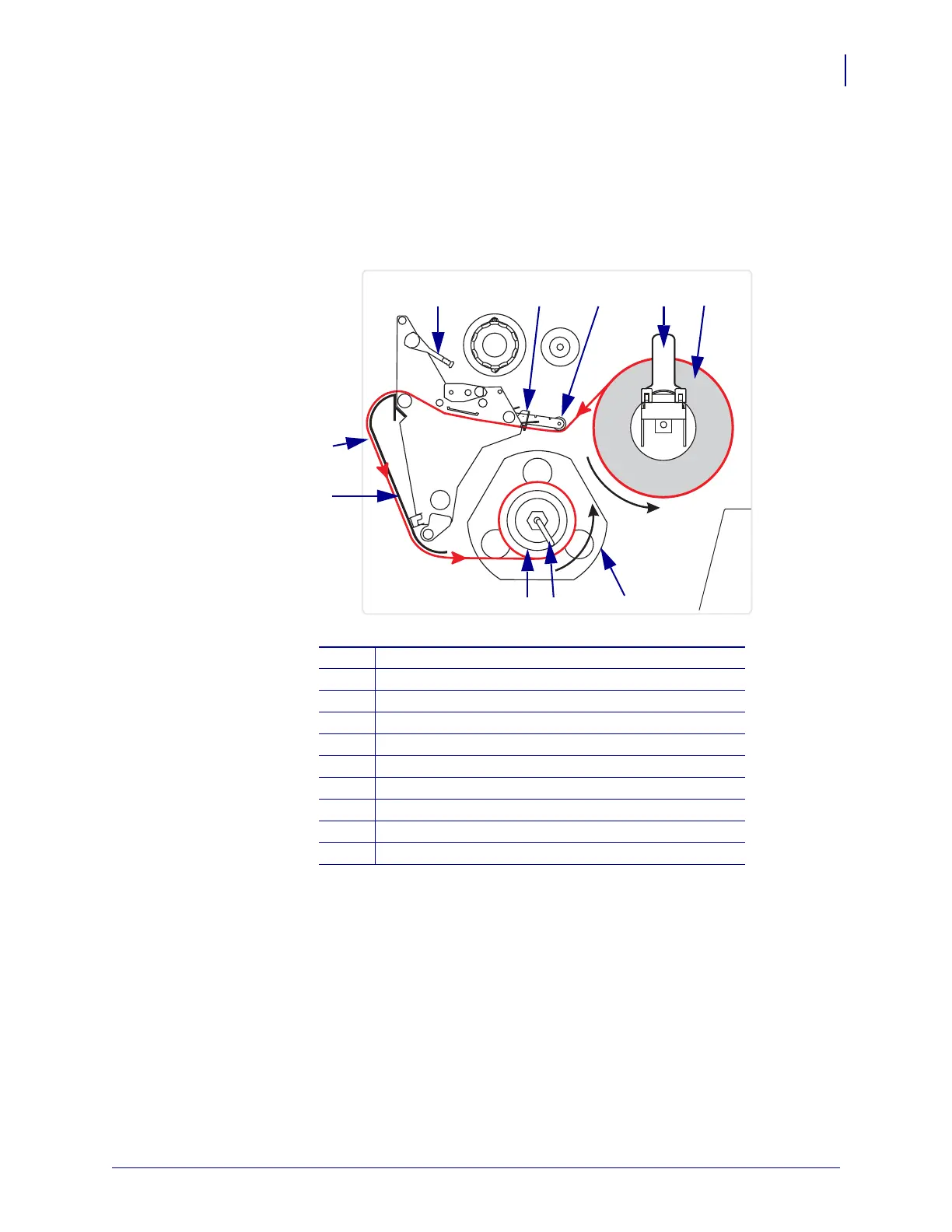

Figure 10 • Media Loaded in Rewind Mode
1
Printhead-open lever
2
Media guide
3
Media guide roller
4
Media supply guide
5
Labels
6
Guide plate
7
Spindle hook
8
Rewind spindle
9
Rewind plate (for Rewind mode only)*
10
Printed labels
* In new printers, remove the protective plastic covering from the rewind
plate before using.
1
2 4
5
8 7
6
9
10
3

Zebra 110Xi4 Specifications

General

Maximum resolution	203 x 203 DPI
Core diameter	76 mm
Ribbon length	300 m
Media thickness	0.076 - 0.305 mm
Maximum media length	3810 mm
Maximum roll diameter	203 mm
Supported paper width	102 mm
Media thickness (imperial)	0.003 - 0.012 \
Maximum media length (imperial)	150 \
Supported paper width (imperial)	4 \
RS-232 ports	1
Standard interfaces	USB 2.0
Connectivity technology	Wired
Weight (imperial)	50 lbs
Dimensions (WxDxH)	261.9 x 517.5 x 393.7 mm
Flash memory	8 MB
Certification	-BSMI, -cTUVus, -CCC, -CE, -C-Tick, -EN55022 Class B, -EN55024, -EN61000-3-2, 3, -FCC Class B, -GOST-R, -ICES-003 Class B, -IEC 60950-1 / EN60950, -KCC, -NOM, -S Mark, -STB, -UkrSEPRO, -VCCI, -ZIK.
Internal memory	16 MB
Built-in barcodes	Code 39, Code 49, Code 93, MaxiCode, PDF417, Postnet, QR Code, UPC-A, UPC-E
Page description languages	XML, ZPL, ZPL II
Storage temperature (T-T)	-40 - 140 °F
Operating temperature (T-T)	5 - 40 °C
Storage relative humidity (H-H)	5 - 85 %
Operating relative humidity (H-H)	20 - 85 %
Power requirements	90 - 264 VAC, 48 - 62 Hz

Weight and Dimensions

Weight	22700 g
