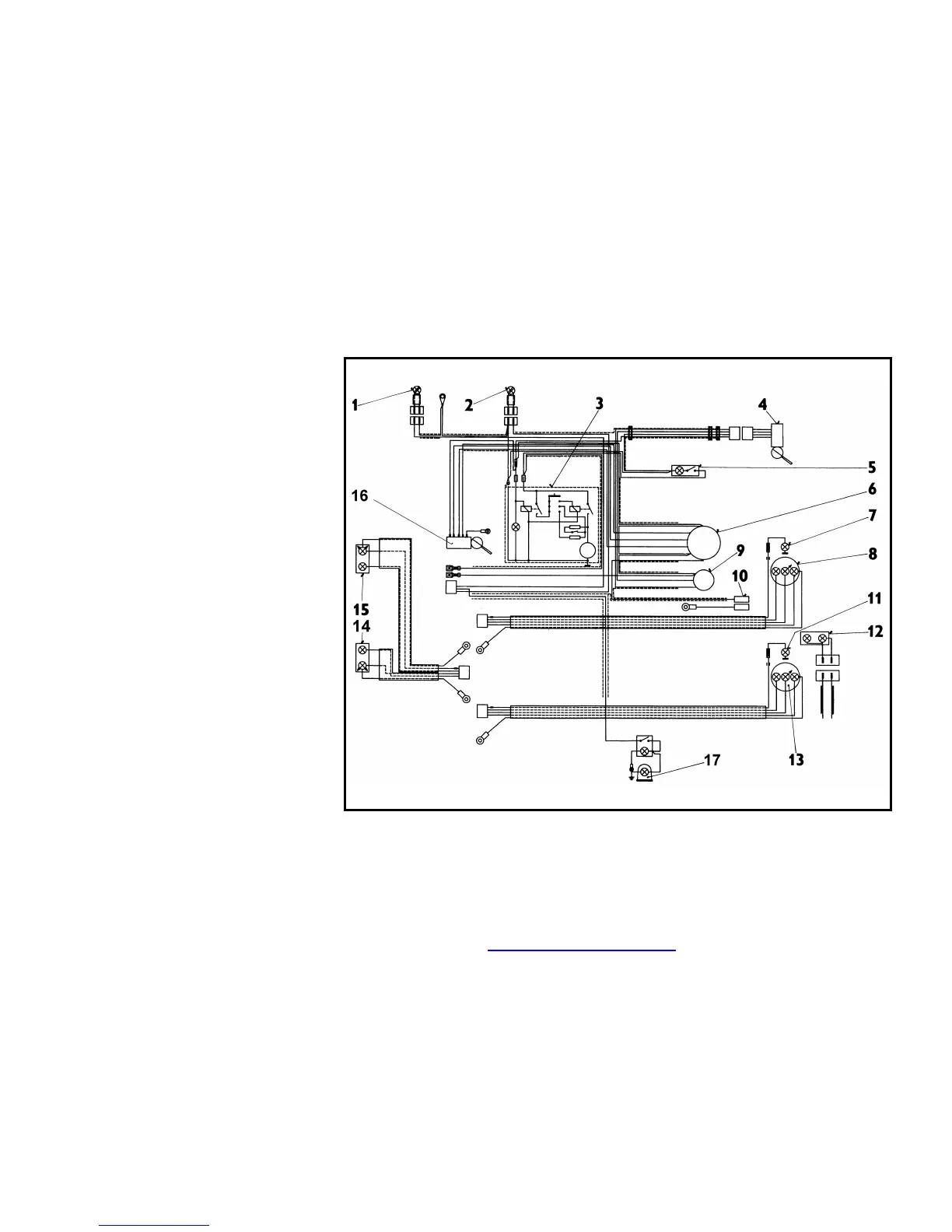

WIRING HARNESS DIAGRAM OF TRACTOR Z 3321 - Z 7341 (WITH CAB)
1. left roof headlight
2. right roof headlight
3. heating
4. rear wiper
5. cab illumination
6. front wiper switch
7. working light (right hand side traffic)
8. right rear light
9. rear wiper switch
10. washer
11. working light (left hand side traffic)
12. license number plate illumination
13. left rear light
14. left front headlight
15. right front headlight
16. front wiper
17. flash beacon
A 205
