HYDRAULIC SYSTEM
A 109
CONNECTION OF MACHINES AND
IMPLEMENT TO HYDRAULIC OUTER
CIRCUIT

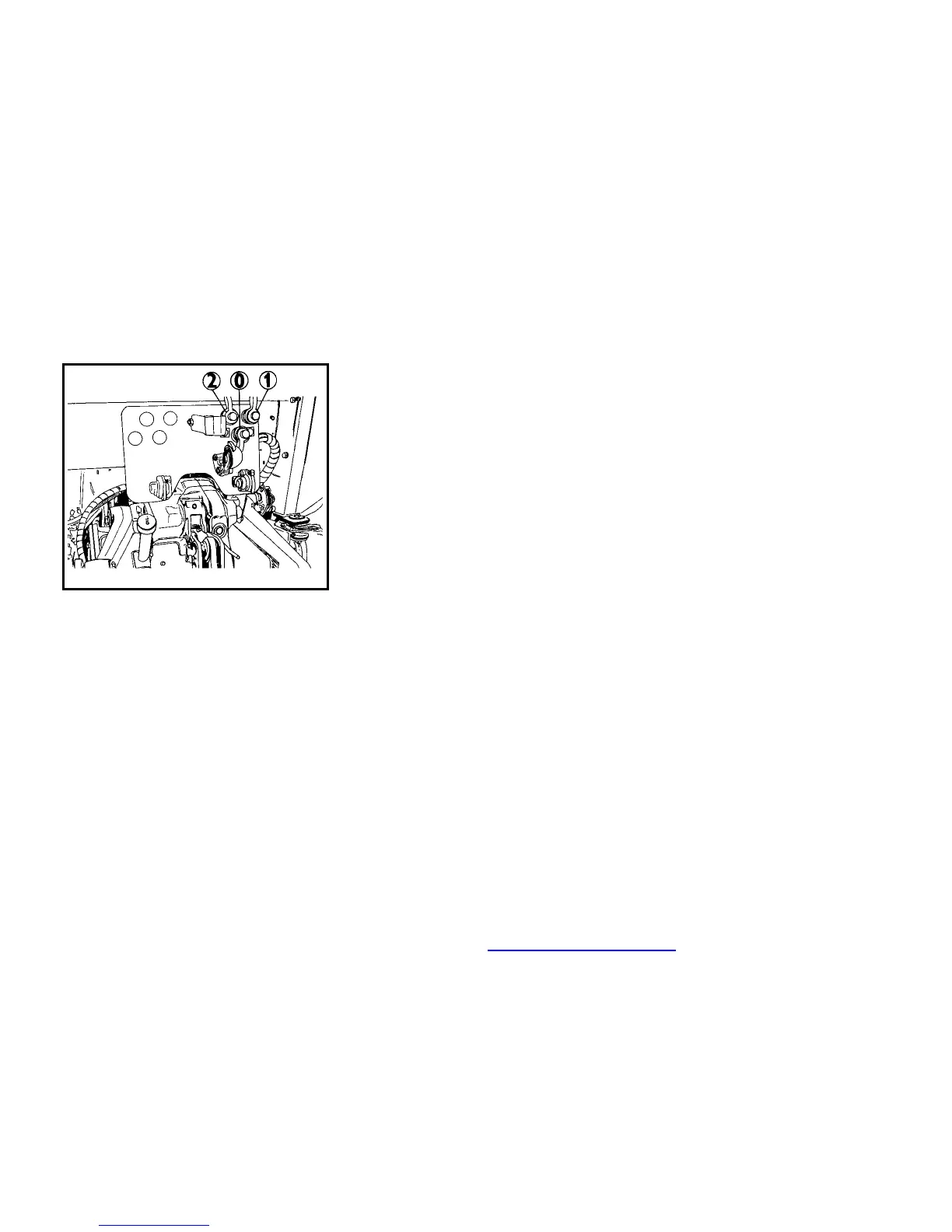

ROTARY HYDROMOTOR OR SCV
Oil inlet line into these implements
(marked P) is connected with quick-
coupler "1", oil return line is connected
with quick-coupler "0". If the reversible
hydromotor is used the oil lines are
connected with quick-couplers "1" and
"2".
