∗FRONT THREE POINT HITCH
A 120 A 121 A 122

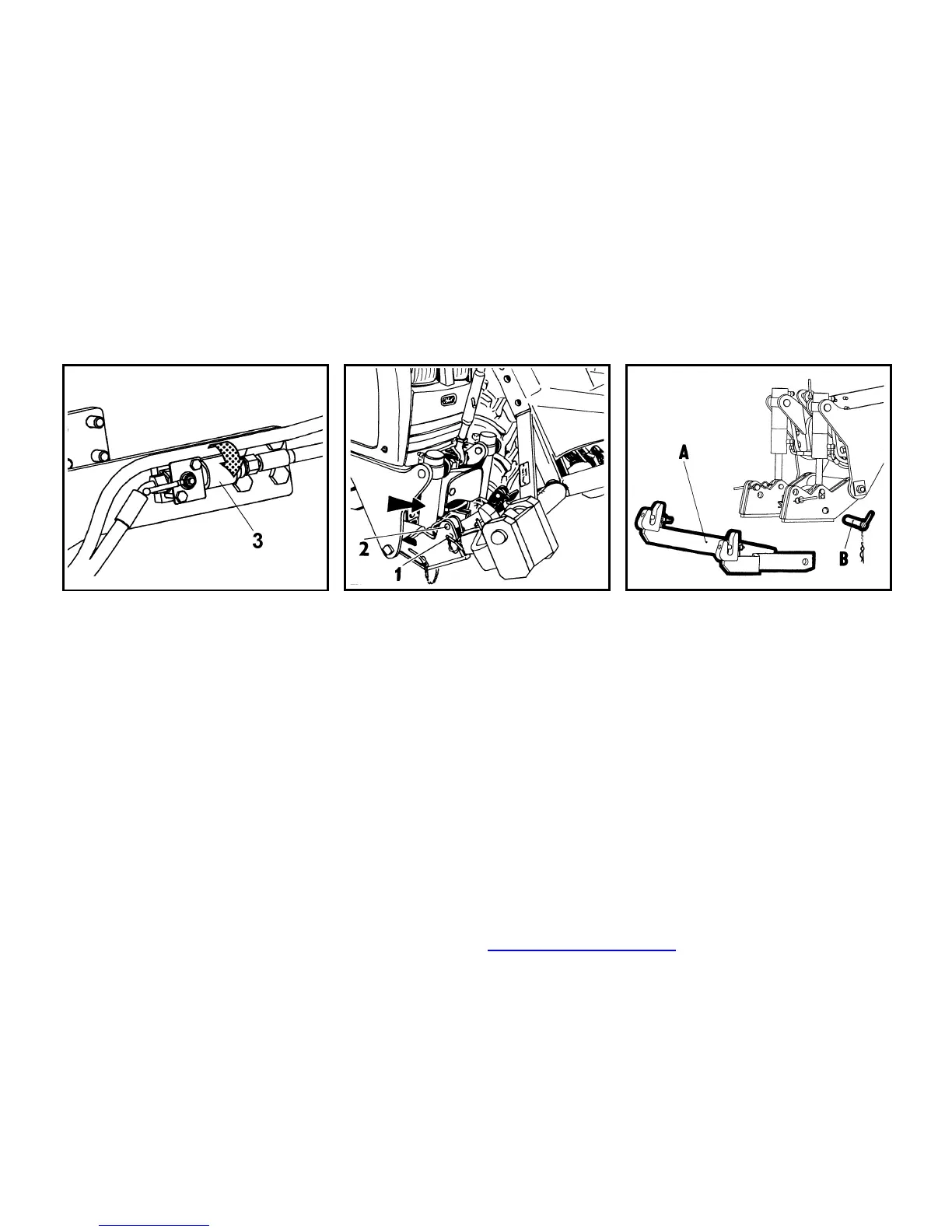

REDUCTION VALVE SETTING
Reduction valve (3) setting is re-
commended before starting work with at-
tached implement in front three point
hitch that way the time needed for im-
plement lowering from the upper position
is 1 to 1,5 second. Lowering speed is in-
creased by turning the valve body into
left (in arrow direction).
CARRIED IMPLEMENT ATTACHING
The implement is attached into the front
three point hitch forks and is locked by
pins. Fixed and floating position is pro-
vided by pins:
- fixed position of attached implement is
provided by assembly of pins into po-
sition 1
- floating position of attached implement
is provided by assembly of pins into
position 2
WARNING
The highest allowed speed of tractor with
agricultural machine attached into the
front three point hitch is 15 kmph.
We recommend removing of lower lifting
arms (A) from supports at tractor equip-
ped with front three point hitch if not
used for attaching implement. Front
lower links are disassembled after re-
moving of safety pins and hitch pins (B).
