AGRICULTURAL MACHINE PTO DRIVE
A 94a A 95
∗ PNEUMATIC CONTROL WITH ME-
CHANICAL LINKAGE
PTO clutch is disengaged by raising of
lever handle. Lever is automatically
latched in the upper position.

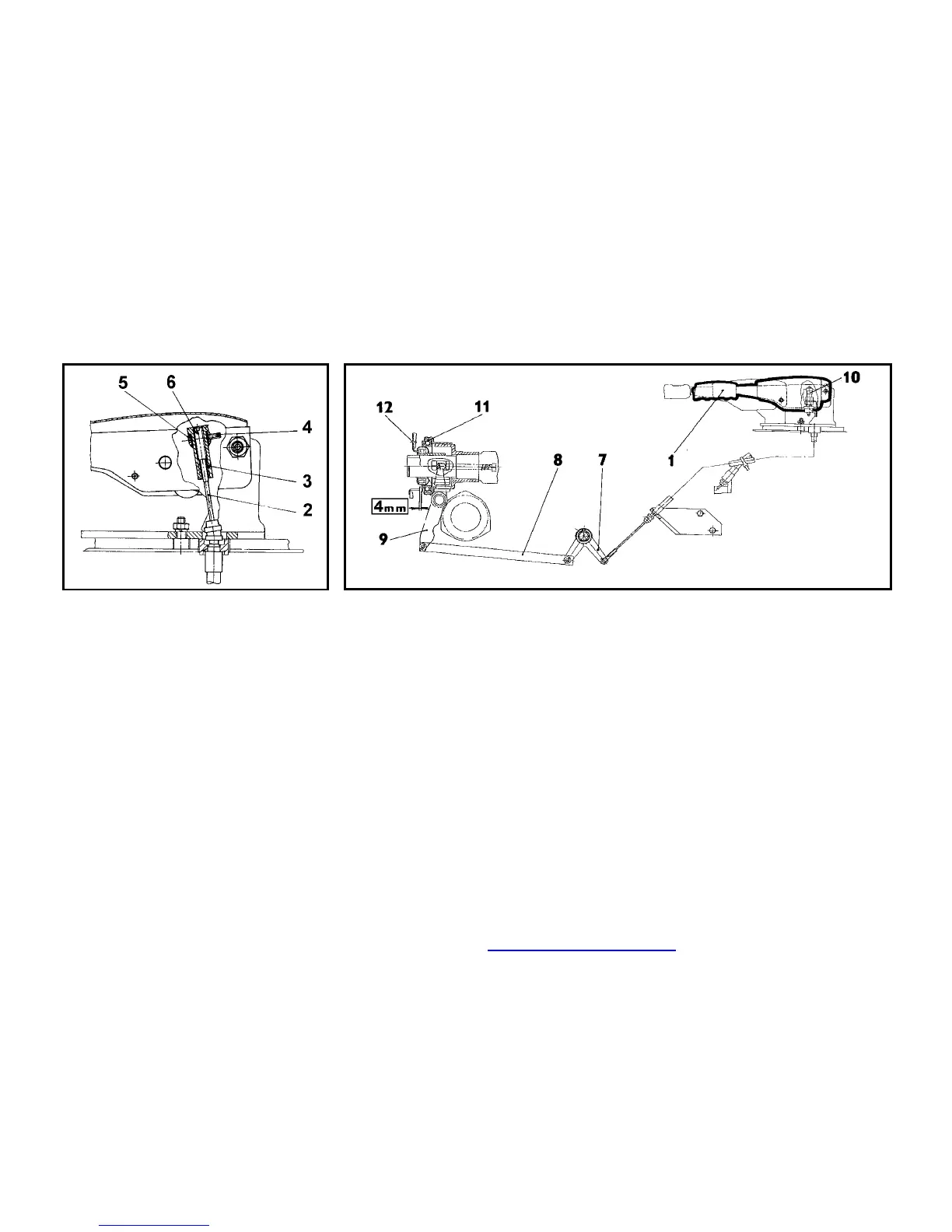

1. Lever
2. Push-pull cable
3. Adjusting nut
4. Adjusting screw
5. Pin
6. Push-pull cable bolt
7. Two arm lever
8. Pin
9. Shaft with lever
10. Switch
11. Bearing
12. Travel clutch disengage levers
13. Adjusting link
14. Link
15. Pneumatic cylinder
16. Electromagnetic valve.
ADJUSTING PROCESS FOR PNEUMA-
TIC CONTROL WITH MECHANICAL
LINKAGE
1. Remove the plastic cover of PTO
clutch hand control lever.
2. Adjust the play between bearing (11)
and clutch levers (12). Do the ad-
justing by means of link (13) that way
the play between bearing (11) and
clutch levers (12) is 4 mm, this must
not be lower than 2,5 mm.
3. Pneumatic cylinder piston (15) must
be in its initial stop position when
adjusting.
