ZIEHL-ABEGG AM-CAN-OPEN User Manual

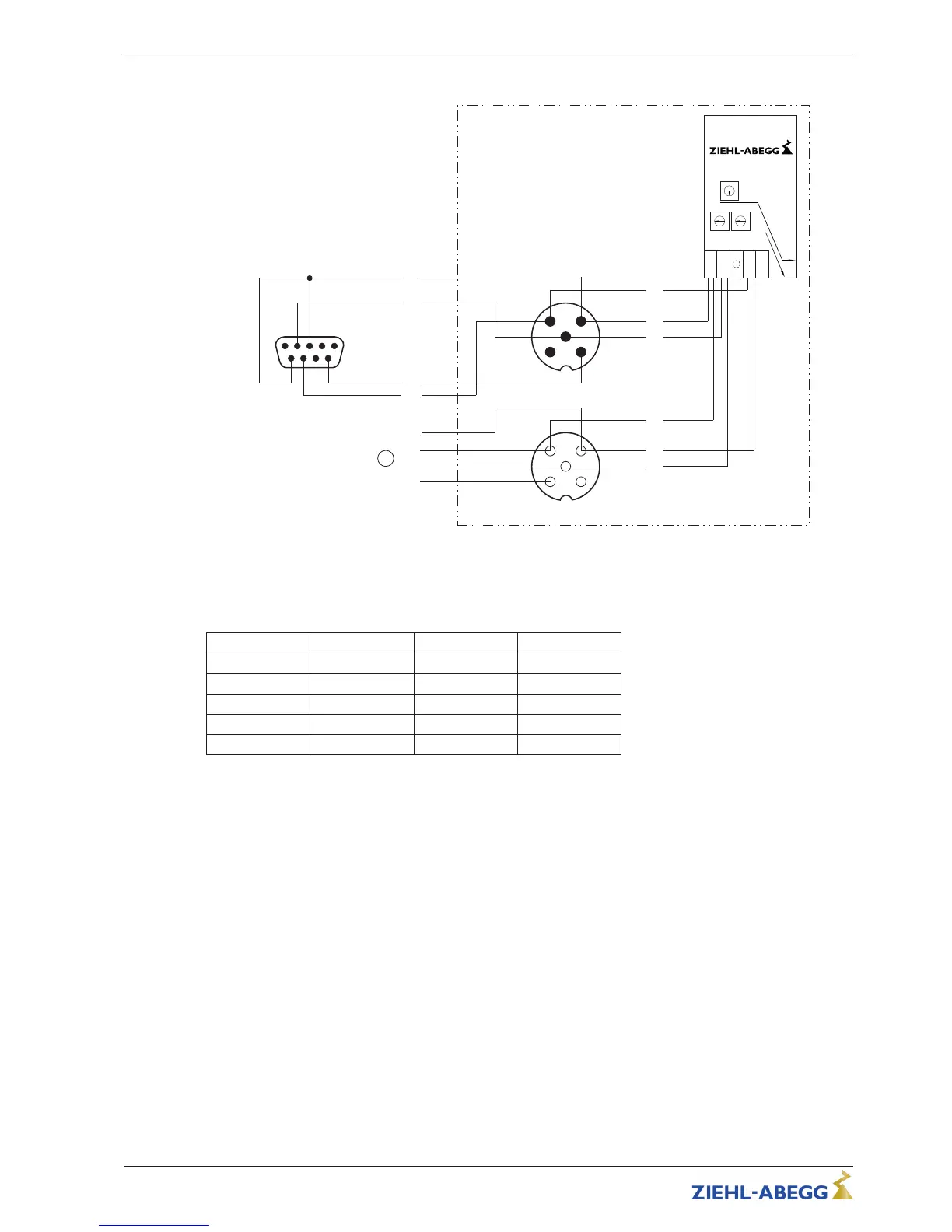

8.2 Connection diagram
43
2 1
5
54321
9876
34
1 2
5
MOSI15K1
19.11.2013
Anschluss für Termination
Connection for termination
BK
BK
WH
BU
BK
GY
1
GY
BU
BK
BU
RD
BU
RD
WH
CAN_H
+5V_Out
CAN_L
GND
Error
Run
Addr
AM-CAN-OPEN
Node_ID
Hi Lo
0
Baudrate
GY BK
0
BU BN WH
0
5
Wiring example for a frequency inverter with integrated AM-CAN-OPEN module.
For detailed information see: Electrical installation.
Connection for termination The terminating resistor is available directly from Phoenix Contact under part number 1507816.
Plug pin assignment on the AM-CAN-OPEN
Pin color code Colour Signal
1
not connected
2
not connected
3 BU blue GND
4 BK black CAN_H
5 GY grey CAN_L
nc not connected
Operating Instructions AM-CAN-OPEN – model series Enclosure
L-BAL-E199-GB 1846 Index 005 Part.-No. 00163405-GB
21/28
