ZIEHL-ABEGG AM-CAN-OPEN User Manual

5 Electrical installation
5.1 Safety precautions
Danger due to electric current
•
Work on electric components may only be carried out by trained electricians or by persons
instructed in electricity under the supervision of an electrician in accordance with electrical
engineering regulations.
•
It is forbidden to carry out work on electrically live parts.
5.2 Voltage supply
The voltage supply to the add-on module is provided automatically by the connector to the base
board.
No other voltage sources are necessary.
5.3 Connections
The fans are connected at the appropriate screw terminals.
A detailed connection diagram can be found in the appendix.
5.3.1 Connection

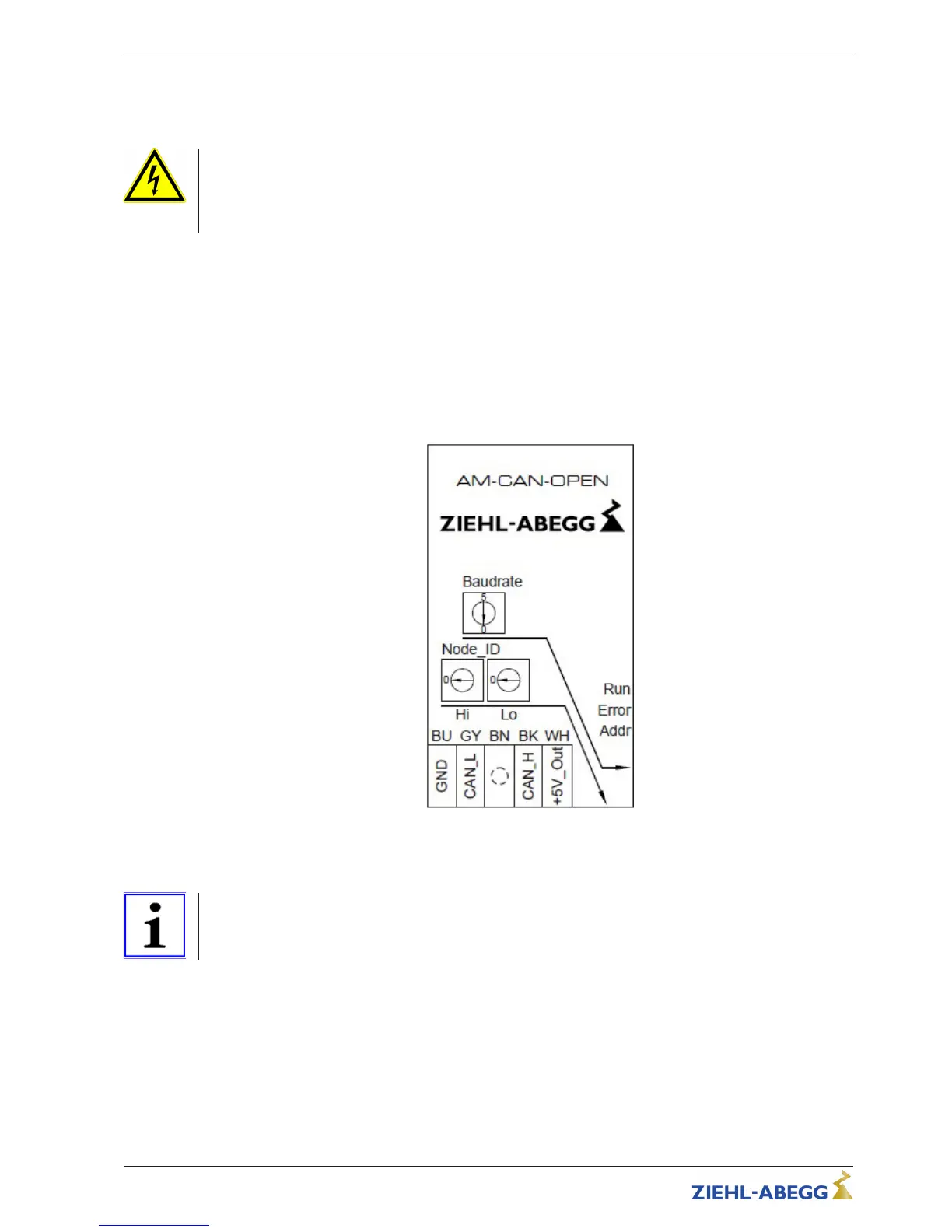

Terminal designations of the AM-CAN-OPEN module
Termination
The data cables CAN_L and CAN_H must be connected exclusively for termination.
Information
See chapter Enclosure -> Connection Diagram for a wiring example.
Operating Instructions AM-CAN-OPEN – model series Electrical installation
L-BAL-E199-GB 1846 Index 005 Part.-No. 00163405-GB
6/28
