4.5.2 Rope guard fastening in the case of a traction sheave diameter of 320 mm
Adjustability on both sides + 5°/- 30°. Normal wrap angles 30° - 185°.

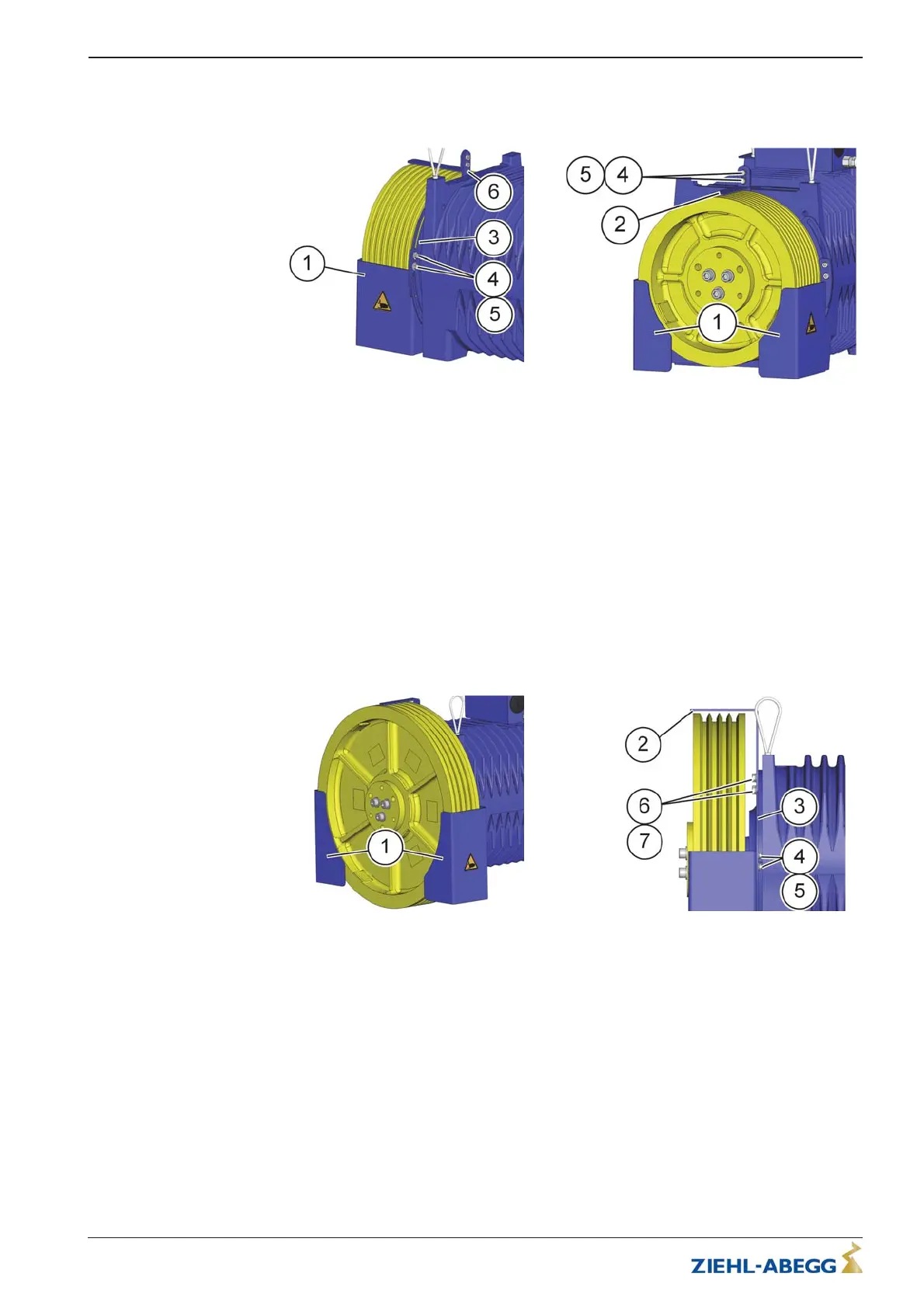

Figure 4-5-2-01 - Rope guard
for traction sheave diameter 320 mm
Figure 4-5-2-02 - Rope guard
optionale 3rd rope retainer
The rope guard (1) is fastened in each case with two hexagon head screws M6 x 12 - 8.8 (4) and
washers (5) to the relevant fixing plate (3).
Through the elongated holes in the fixing plate (3) enables the required distance to the ropes to be
set at the hexagon head bolts M6 x 12 - 8.8 (4).
Tightening torque M6 - 8.8: 9.5 Nm
The 3. rope retainer (2) is fastened with two hexagon head bolts M6 x 12 - 8.8 (4) and washers (5)
to the fixing plate (6).
The slotted hole in the 3. rope retainer (2) enables the required distance to the ropes to be set at
the hexagon head screws M6 x 12 - 8.8 (4).
Tightening torque M6 - 8.8: 9.5 Nm
4.5.3 Rope guard fastening in the case of a traction sheave diameter of 400 mm and 500 mm
Adjustability on both sides + 5°/- 30°. Normal wrap angles 30° - 185°.
Figure 4-5-3-01 - Rope guard
for traction sheave diameter 400 mm - 500 mm
Figure 4-5-3-02 - Rope guard
optionale 3.rd rope retainer
The rope guard (1) is fastened in each case with two hexagon head screws M6 x 12 - 8.8 (4) and
washers (5) to the relevant fixing plate (3).
Through the elongated holes in the fixing plate (3) enables the required distance to the ropes to be
set at the hexagon head bolts M6 x 12 - 8.8 (4).
Tightening torque M6 - 8.8: 9.5 Nm
The third rope retainer (2) is fastened with two hexagon head screws M8 x 16 - 8.8 (6) and
washers (7) to the housing.
The slotted hole in the 3. rope retainer (2) enables the required distance to the ropes to be set at
the hexagon head screws M8 x 16 - 8.8 (6).
Tightening torque M8 - 8.8: 23 Nm
Translation of the original operating instructions
ZAtop – model series SM200.40E/SM200.45E Mechanical installation
