8 Service and maintenance
8.1 General notes on maintenance
Observe the safety-at-work regulations!
Disassembly of the elevator machine is not permissible.
Never use a high-pressure cleaner (for example steam jet cleaner) for cleaning the elevator
machine!
Take note of abnormal operating noise.
The bearings have a lifetime lubrication. There is no possibility to relubricate. Maintenance is not
necessary for the bearings.
To check the brake wear the following instructions have to be referred:
It is not possible to adjust the brakes. The brakes cannot be readjusted. Replace the both brake rotors
when the maximum air gap has been reached.
The wear to the brake is checked with the brake closed, therefore:
Make sure that all moving parts have stopped, secure them mechanically if required!
Make sure that the elevator can not be moved from any other person than the one who does the
check!
8.2 Inspection intervals
During commissioning or
after the first 3 months
every year
Distance of the rope guard x x
Check vibration isolation
The thickness of the vibration isolation must be the
same on the right and left.
xx
Checking the air gap of the brake x x
Visual inspection of the mounting screws on the hous-
ing, brakes and traction sheave.
The locking compound must be free of damage.
xx
Check the traction sheave if worn out
x
Check the microswitch/inductive proximityswitch
x
Table 8-2
Note: All fixing screws on the housing, brakes and traction sheave are marked with locking varnish.
That means a loosened screw is optically visible. If a screw does get turned, it must be tightened
using the prescribed tightening torque, the old locking varnish needs to be removed and marking has
to be made again.
8.2.1 Checking the air gap

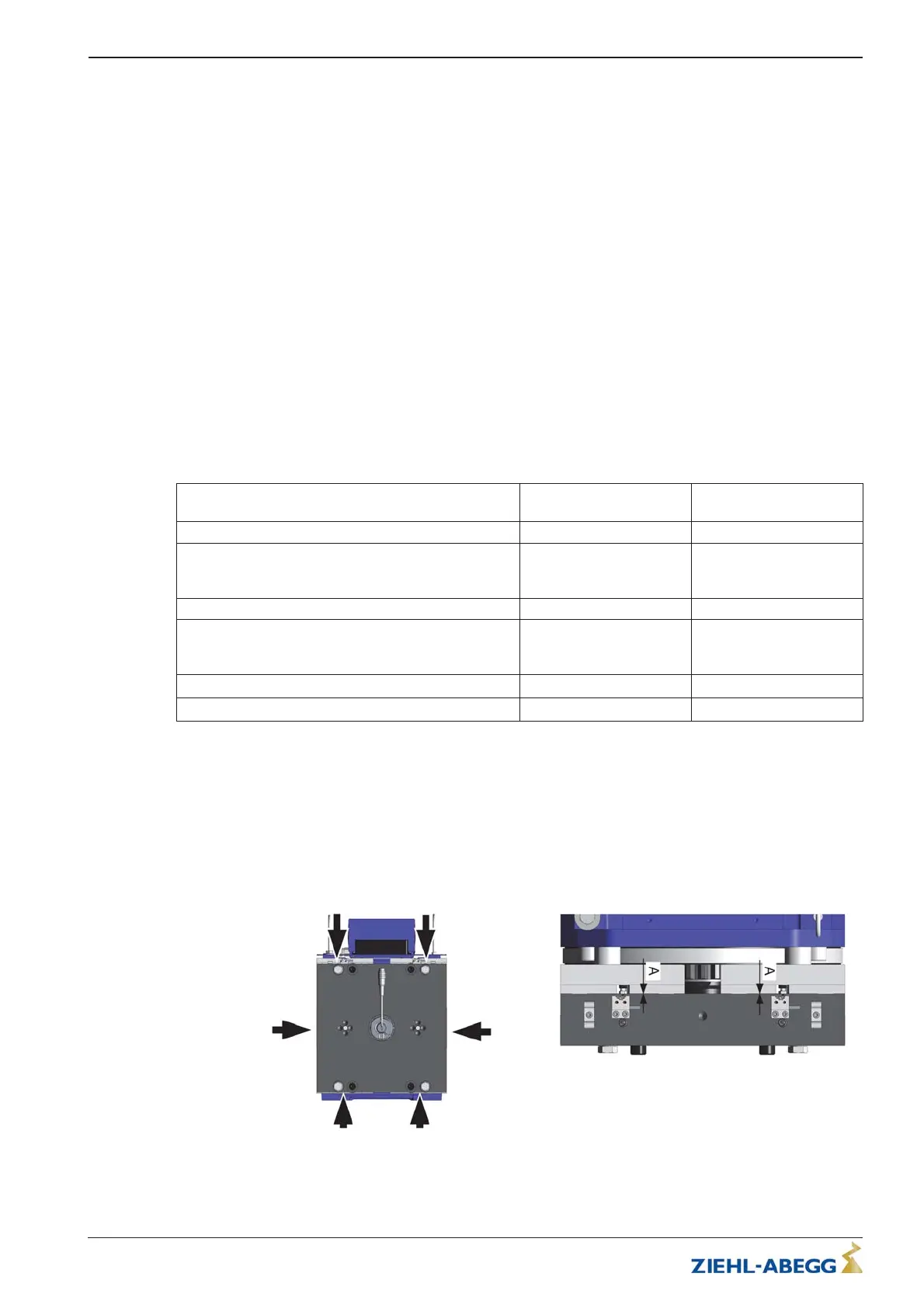

Figure 8-2-1-01 - Air gap measurement position Figure 8-2-1-02 - Air gap measurement
Translation of the original operating instructions
ZAtop – model series SM200.40E/SM200.45E Service and maintenance
A-TBA21_01-GB 2021/30 Index 003 Part.-No. 01013507-GB (EU-BD 1112)
