3.2 Rating plate
The name plate for the ZAtop SM200.40E/SM200.45E elevator machines specify two values as
nominal values for maximum / average nominal power, maximum / average nominal current, max-
imum / average nominal torque and on time at maximum / average load.
The first values in each case represent the maximum load for operation of the elevator (descending
with empty car or ascending with full car). The second values stand for the average load for operation
of the elevator.
The name plate is on the brake-side on the left and right on the housing of the ZAtop
SM200.40E/SM200.45E.

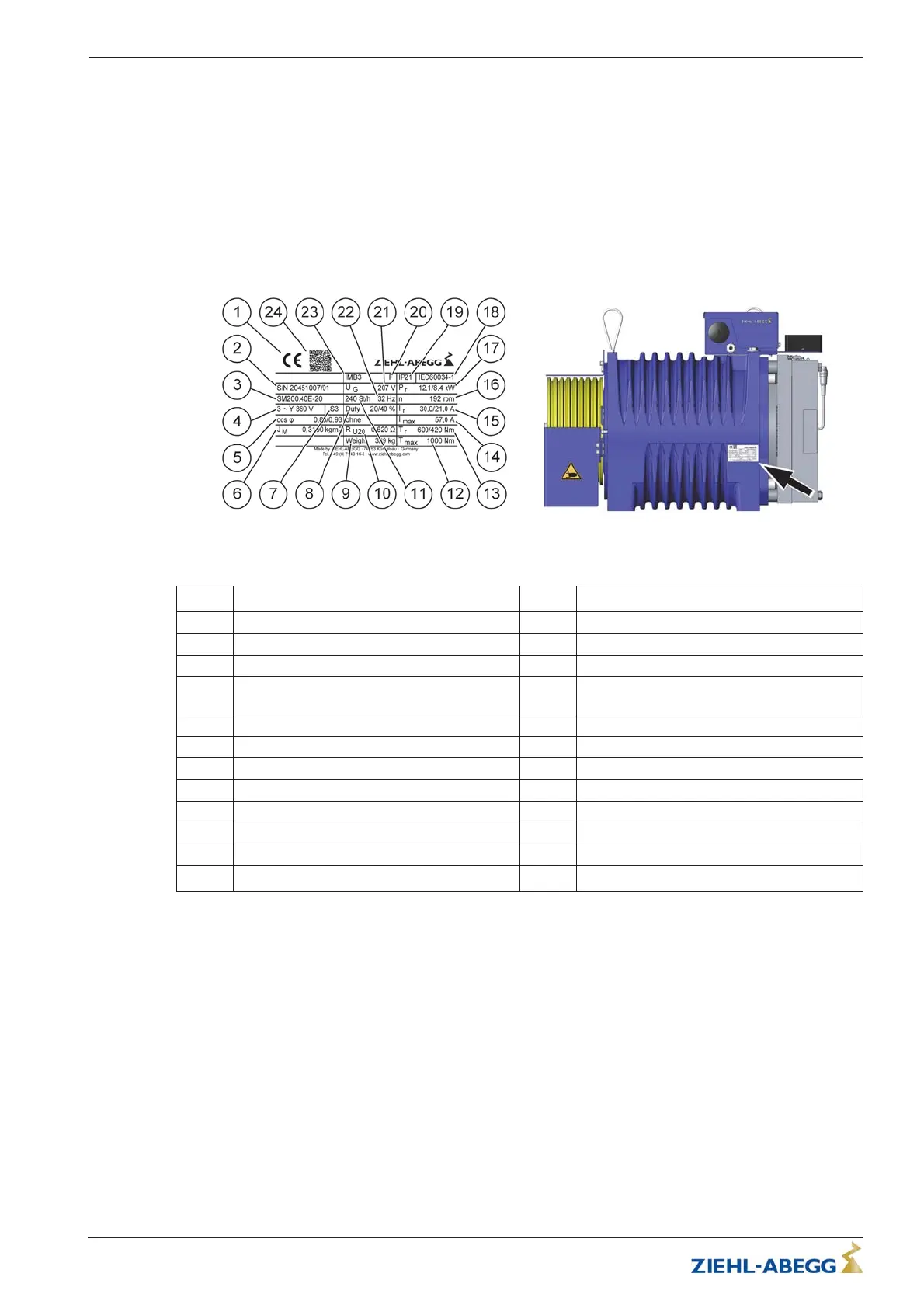

Figure 3-2-01
Example name plate ZAtop SM200.40E/SM200.45E
Figure 3-2-02
Name plate position
no.
Designation
no.
Designation
1CE mark
13 T
r
- Rated torque [Nm]
2 S/N - Motor number
14 I
max
- Acceleration current [A]
3 Type - Motor type and size
15 I
r
- Rated current [A]
4 Network form / Connection type /
Rated voltage
[V] 16 n - Rated speed [rpm]
5cos φ - Power factor
17 P
r
- Rated power [kW]
6J
M
- Moment of inertia kg m
2
18 Specifications of relevant standard
7Mode
19 IPxx - Protection class
8Duty - On time
20 Insulation class
9 Weight - Weight [kg] 21 U
G
- Generator voltage [V]
10 R
U20
- Winding resistance [Ω] 22 Rated frequency [Hz]
11 St/h - Trips per hour
23 IPxx - Design
12 T
max
- Acceleration torque [Nm] 24 QR code
Table 3-2
Values for maximum load for operation of elevator (trip with full cabin down and with full cabin
up):
600 Nm; 20 % on time; 12.1 kW; 30 A
Values for average load for operation of elevator:
420 Nm; 40 % on time; 8.4 kW; 21 A
Note:
The higher current value should be used when selecting the frequency converter and the cross-
section of the motor cable.
Translation of the original operating instructions
ZAtop – model series SM200.40E/SM200.45E Product overview
A-TBA21_01-GB 2021/30 Index 003 Part.-No. 01013507-GB (EU-BD 1112)
8/64
