3.3 Transport
•
ZIEHL-ABEGG SE elevator machine are packed by the manufacturer for the types of transport and
storage agreed upon.
"
Check packing and elevator machine for possible damage and report the forwarding agency about
any damages caused by transport. Shipping damages are not covered by our guarantee!
"
Avoid excessive vibration and shockloads!
"
Extreme heat or cold (transport temperature -20 ° C to +60 °C) must be avoided!
3.3.1 Transport
"
Transport the elevator machine in the original packing.
3.3.2 Lifting

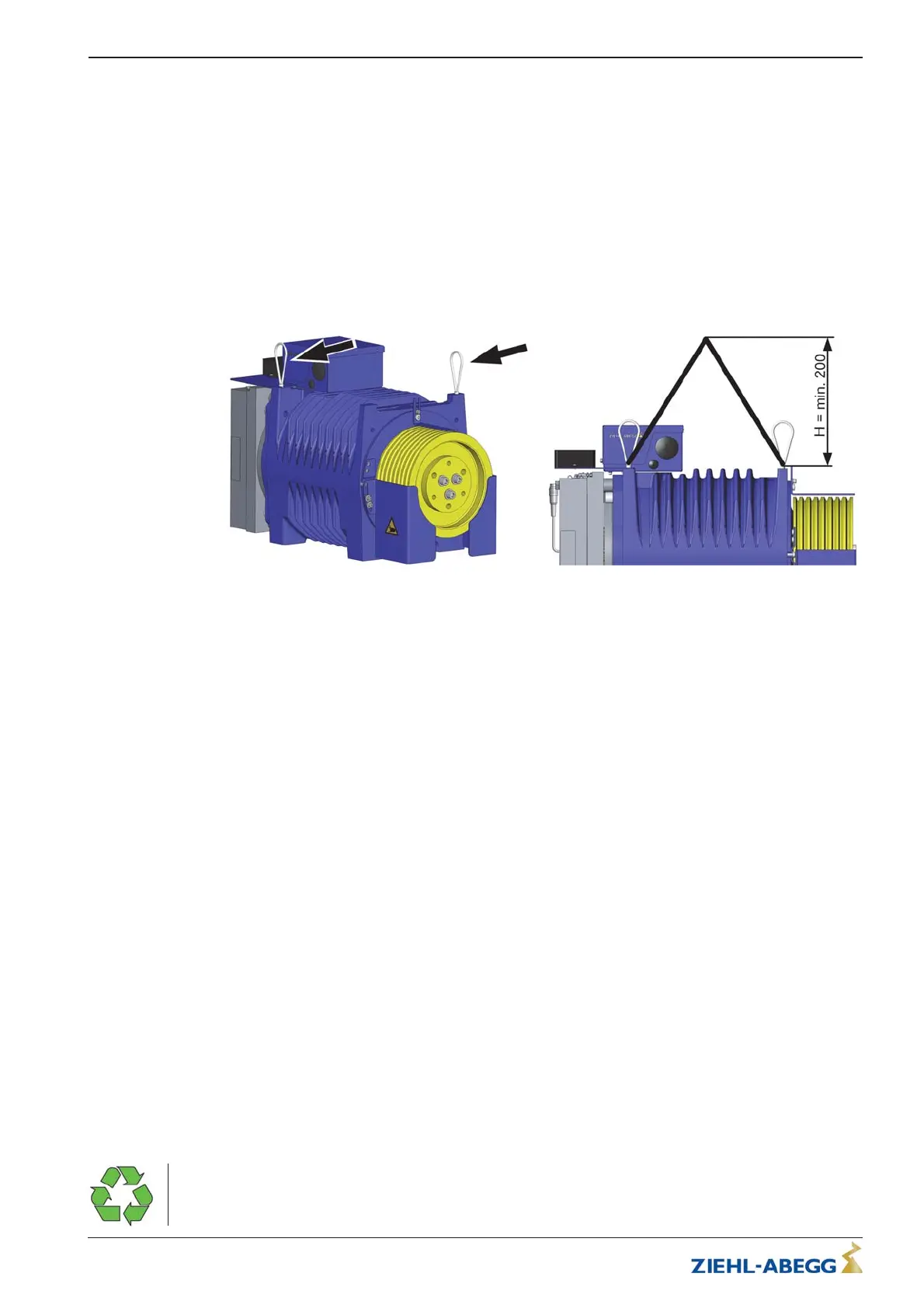

Figure 3-3-2-01 - Position of attachment points
Figure 3-3-2-02 - Diagonal pull lifting gear
Lift the elevator machine:
"
Only at the designated attachment points (see Figure 3-3-2-01).
"
At all attachment points at the same time.
"
Using suitable lifting gear.
"
taking into account the distance H (see Figure 3-3-2-02).
"
Correctly taking into account the centre of gravity.
"
Without additional loads.
3.4 Storage
"
Store the elevator machine in the original packaging in a dry area protected from the weather or
protect it from dirt and weather until final mounting.
"
Leave the VCI paper on the grooved surface of the traction sheave as corrosion protection until the
elevator machine is installed.
"
Extreme heat or cold (storage temperature -20 °C to +60 °C) must be avoided!
"
High humidity which can lead to condensation must be avoided.
"
Avoid aggressive conditions (for example salt spray)!
"
Maximum storage duration: 12 months
- Release brake
- Turn motor shaft manually
- Listen for unusual bearing noises
If the maximum storage duration is exceeded, the following procedure must be carried out after 12
months at 2-3 month intervals to prevent damage to the bearings:
- Release brake
- Turn motor shaft manually at least 3 turns in both directions to ensure even distribution of the
bearing grease
If you encounter any irregularities, please contact ZIEHL-ABEGG SE customer service.
3.5 Disposal / recycling
Disposal must be carried out professionally and environmentally friendly in accordance with the legal
stipulations.
Translation of the original operating instructions
ZAtop – model series SM200.40E/SM200.45E Product overview
A-TBA21_01-GB 2021/30 Index 003 Part.-No. 01013507-GB (EU-BD 1112)
9/64
