GUID-78C41F8E-C7EB-48DA-9351-AF54DCD3D504 V1 EN

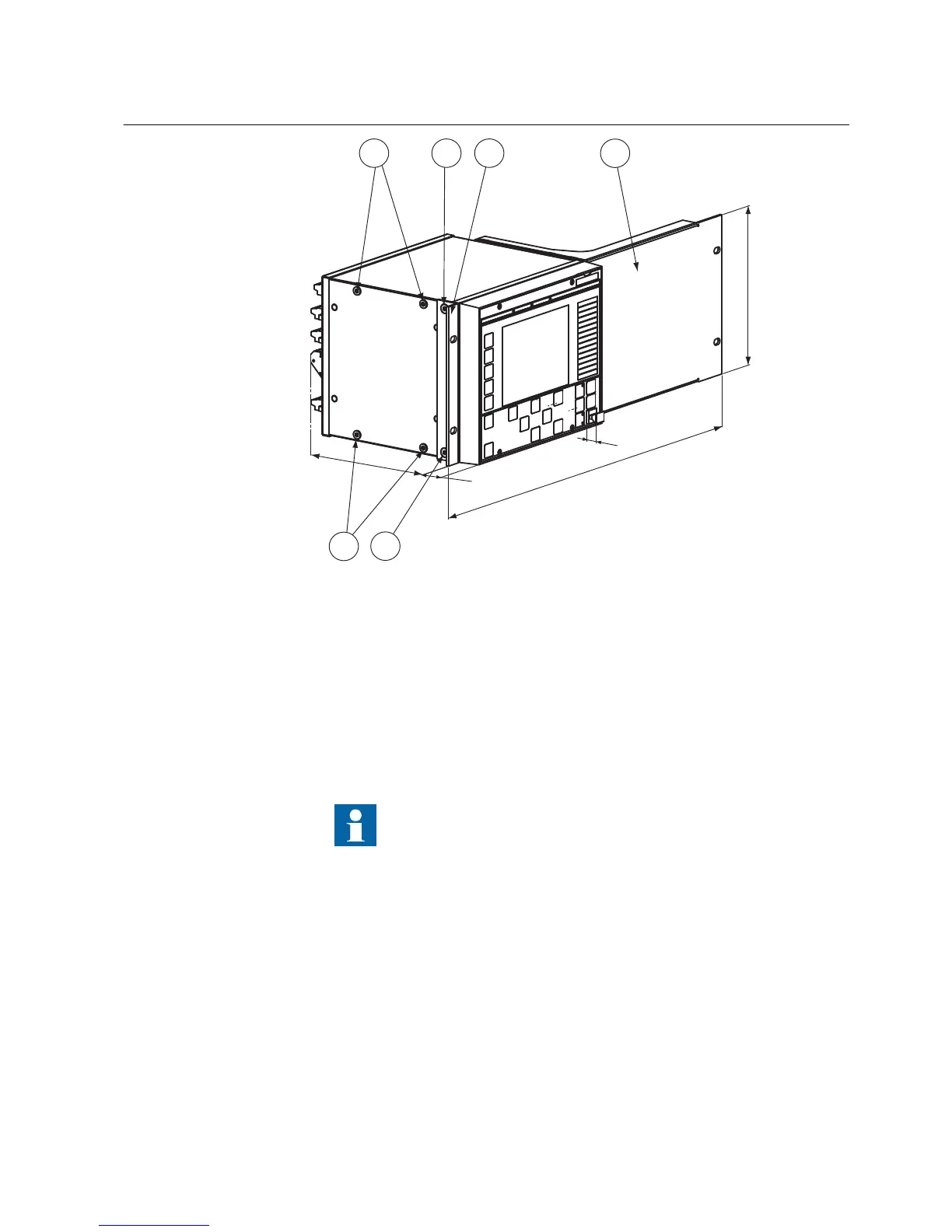

Figure 7: Rack mounted IED
A
224 mm 1 Plastic plugs
B 25.5 mm 2 Screws
C 482.6 mm (19") 3 Left mounting bracket
D 13 mm 4 Right mounting bracket
E 177 mm (4U)
Check the allowed minimum bending radius from the optical cable
manufacturer.
4.3.3.2 Rack mounting two IEDs
1. Remove the plastic plugs from the side of the case on both of the two IEDs.
2. Locate the pins on the two middle mounting brackets to the holes on the sides
of the two IEDs.
3. Mount the upper and lower mounting brackets to the two IEDs using the
screws at the required location.
1MRS755958 C Section 4
Mounting
630 series 21
Installation Manual
