ABB 630 series Installation Manual

8.1.2 Rear side of the IED
Rdy1Bat1
X327
X430 X329
X321 X324
X316
X319
X101
X102
X304
Hi
+/~
-
/~
Me
Lo
-
-
GUID-C8D14F98-507B-4E4A-A86D-F231FB7A98AD V1 EN

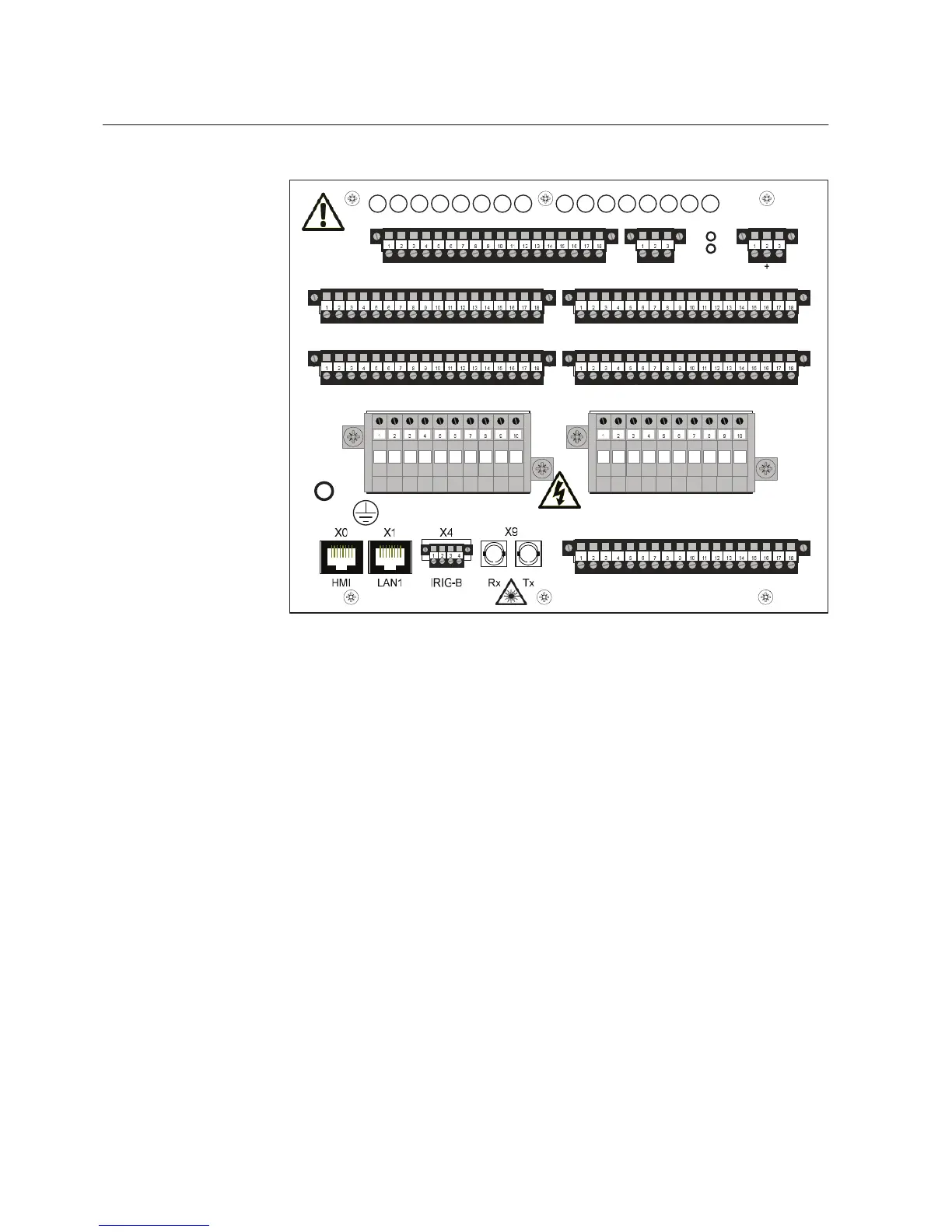

Figure 34: Rear view of 4U half 19”
Section 8 1MRS755958 C
Technical data
68 630 series
Installation Manual

ABB 630 series Specifications

General

Frequency	50/60 Hz
Protection Functions	Overcurrent, earth fault
Communication Protocols	Modbus
Enclosure	IP20
Type	Protection relay
