1.1 Features of the Linking Device
The LD 810HSE Ex is a gateway between an FF High Speed Ethernet (FF-HSE) subnet
and FF-H1 links. It supports device redundancy. The Linking Device is registered as class
42c of the HSE profile, therefore providing the following functions:
• It supports up to four separate galvanically isolated FF-H1 links. In each of these
links, the Linking Device operates as Link Master as well as SM Time Publisher.
• Identification of devices connected to the H1 links
• Configuration of connected H1 devices through System Management and Network
Management via HSE
• Access to the function blocks of connected H1 devices via HSE
• Republishing of process data between H1 links
• Republishing of process data from H1 to HSE and vice versa
• Distribution of alarms and events sent by H1 devices

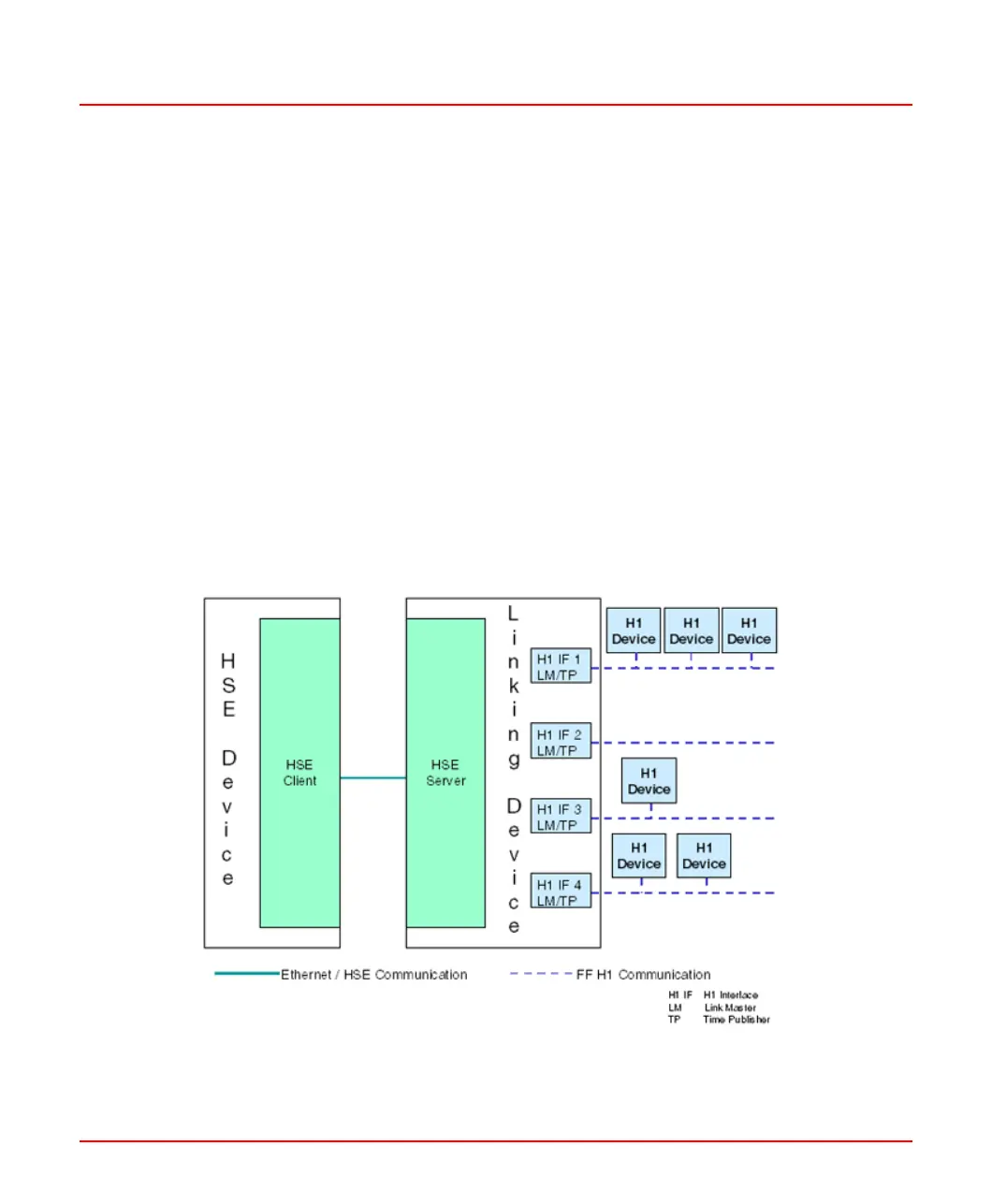

Figure 1.1: Linking Device Communication
2PAA114135-610 19
1 Introduction
1.1 Features of the Linking Device

ABB Ability 800xA Series Specifications

General

System Type	Distributed Control System (DCS)
Architecture	Client-server
Redundancy	Supports redundant controllers, communication networks, and I/O modules
Operating System	Microsoft Windows Server
Communication Protocols	OPC, Modbus, IEC 61850, PROFIBUS, Foundation Fieldbus
Integration	Supports integration with third-party systems and ABB products
Scalability	Highly scalable, from small to large installations
Cybersecurity	Built-in cybersecurity features including access control and network security
User Interface	Graphical user interface
Application Support	Supports a wide range of industrial applications including process control and safety
