E-Clipse Bypass Configurations for ACH550 Drives 103
Technical Data

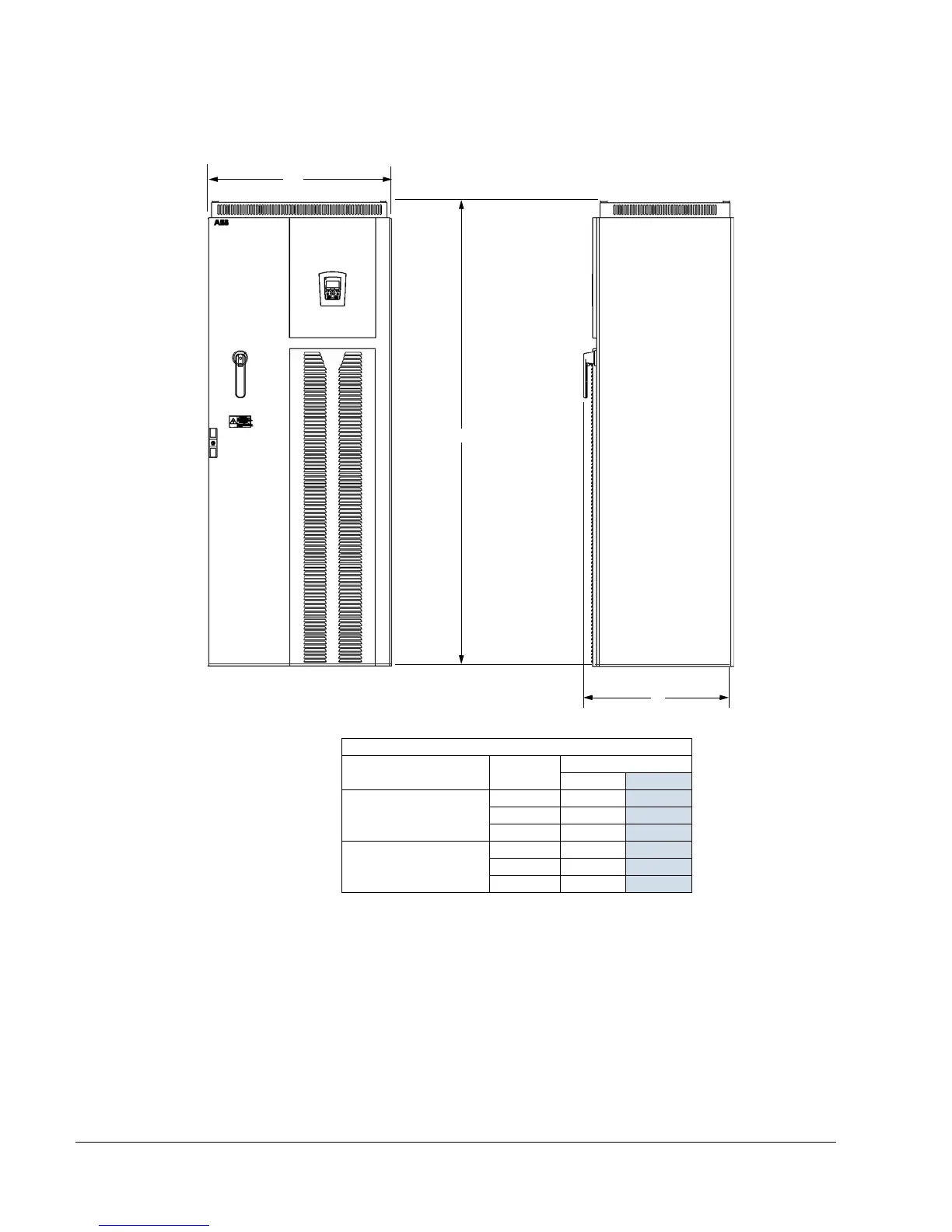

Outside Dimensions – B4
Outside dimensions for the B4 cabinet are defined below.
* Keep a minimum of 2 inches of free space on each side and 8 inches of free space above and below all units from non-heat
producing sources. Double these distances from heat producing sources
Applicable Standards
The E-Clipse Bypass configuration conforms to all standards listed for the ACH550-
UH.
Outside Dimensions by Frame Size
Enclosure Ref.
B4
mm in
IP 21 / UL type 1
W 806
31.7
H 2065
81.3
D 659 25.9
IP 54 / UL type 12
W 806 31.7
H 2377
93.6
D 659
25.9
BP0017
W
H
D

ABB ACH550 series Specifications

General

Enclosure	IP21, IP55
Output Voltage	0 to Supply Voltage
Frequency Range	0 to 500 Hz
Control Method	Scalar control, vector control
Braking Chopper	Optional
Communication	Modbus RTU, Profibus, CANopen, Ethernet
Storage Temperature	-40°C to +70°C
Relative Humidity	5 to 95 % RH, non-condensing
Altitude	Up to 1000 m (derating above 1000 m)
Cooling Method	Air-cooled
