18 E-Clipse Bypass Configurations for ACH550 Drives

Installation

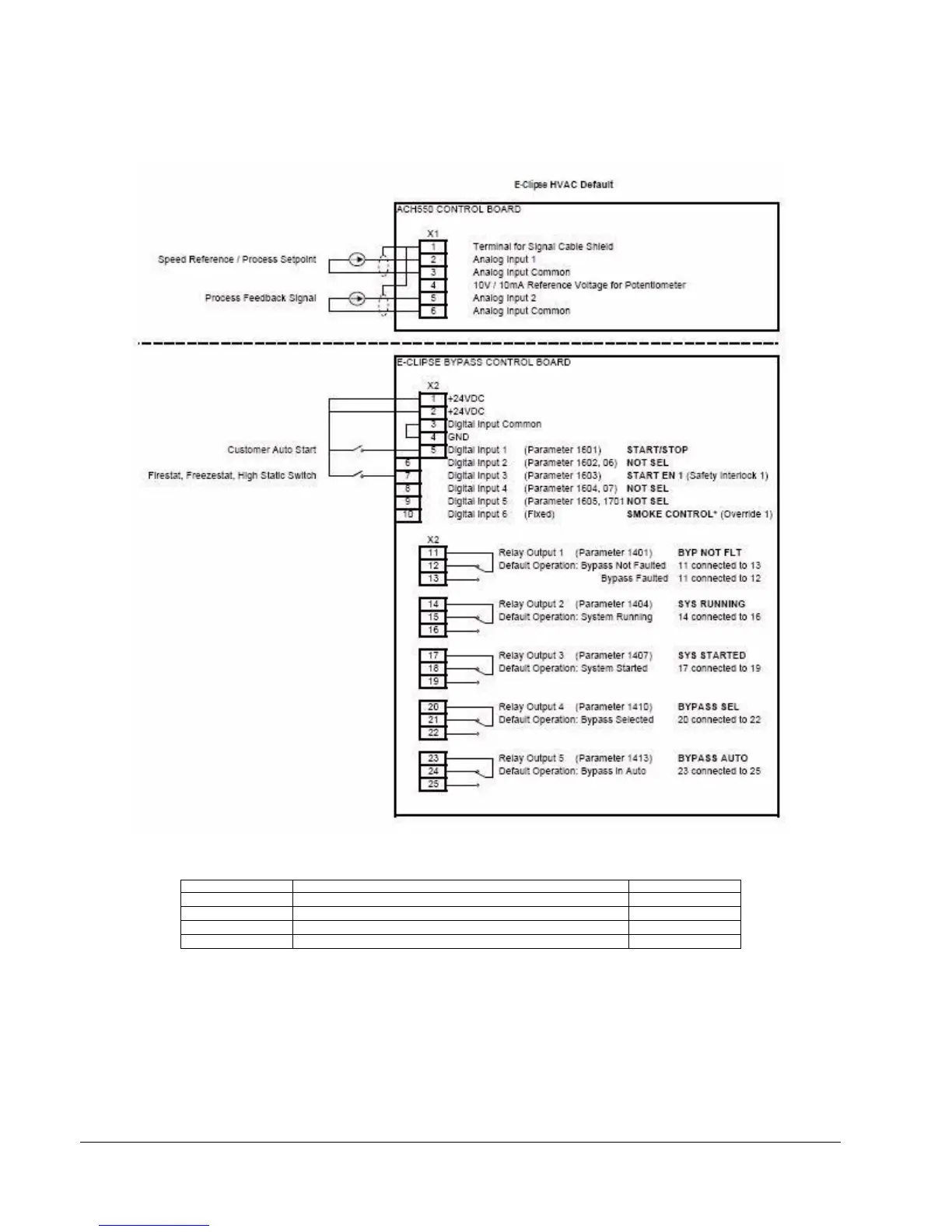

Basic Control Connections for E-Clipse HVAC Default

E-Clipse HVAC Default

Parameters Changed Relative to E-Clipse HVAC Default

* Smoke Control (Override1) is a fixed input. Closing Digital Input 6 will place the E-Clipse Bypass in

Smoke Control mode which may reassign the function of the other Digital Inputs. Refer to the

Smoke Control (Override1) documentation.

Parameter Number Description Setting

Questions and Answers:

Need help?

Do you have a question about the ABB ACH550 series and is the answer not in the manual?

General

Enclosure	IP21, IP55
Output Voltage	0 to Supply Voltage
Frequency Range	0 to 500 Hz
Control Method	Scalar control, vector control
Braking Chopper	Optional
Communication	Modbus RTU, Profibus, CANopen, Ethernet
Storage Temperature	-40°C to +70°C
Relative Humidity	5 to 95 % RH, non-condensing
Altitude	Up to 1000 m (derating above 1000 m)
Cooling Method	Air-cooled
