ABB ACH550 series User Manual

E-Clipse Bypass Configurations for ACH550 Drives 97
Technical Data
Dimensions and Weights (Supplement to ACH550-UH User’s Manual)
Mounting Dimensions

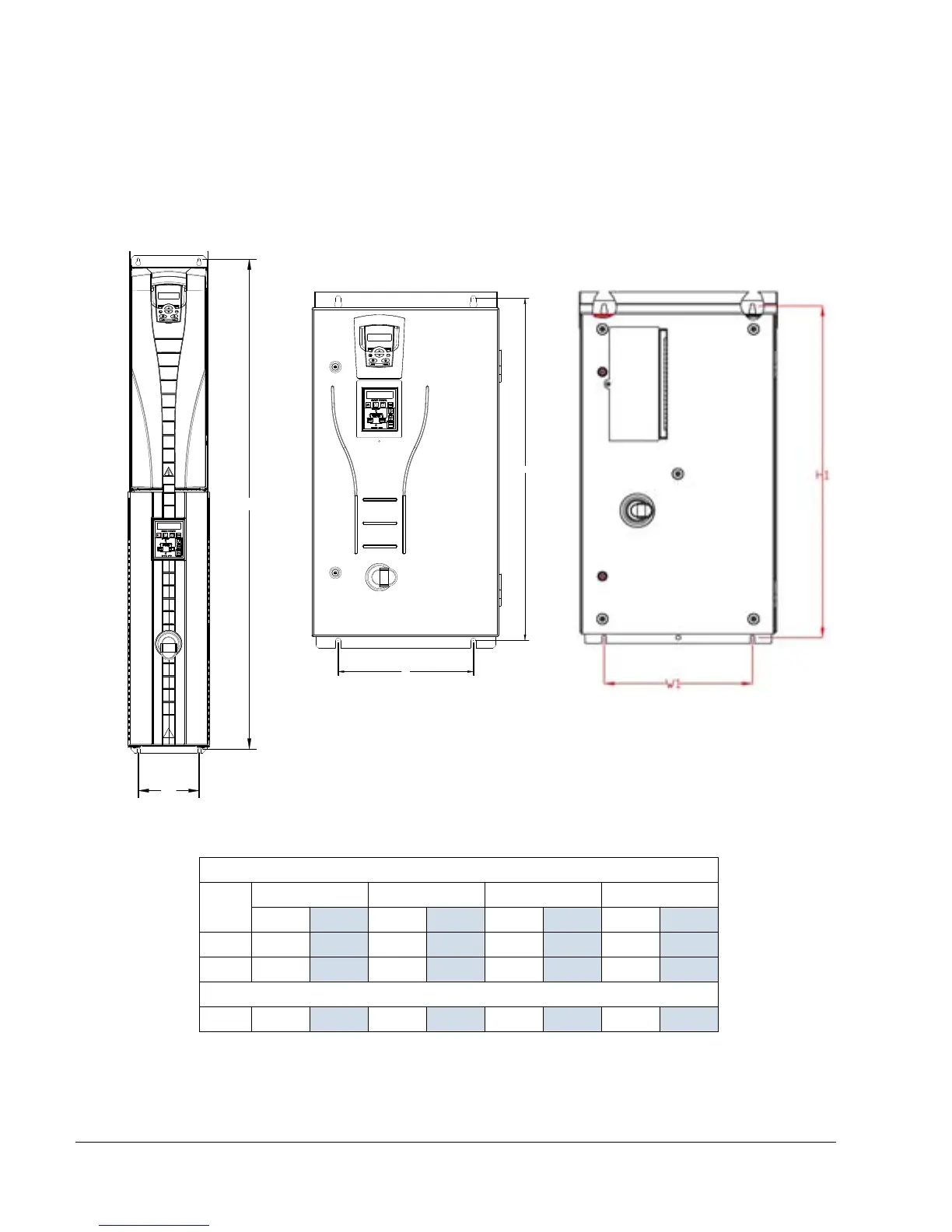

The following diagram and tables provide mounting point dimensions for wall
mounted cabinets.
Vertical Enclosure, V1…V4
IP 21 / UL type 1 – Mounting Dimensions for each Frame Size
Ref.
V1 V2 V3 V4
mm
in mm in mm in mm in
W1* 136
5.4 136 5.4 214 8.4 214 8.4
H1* 1004 40 1103 43.4 1180 47 1285 51
Mounting Hardware
M6
1/4 M6 1/4 M6 1/4 M6 1/4
H1
W1
BP0064-1
Standard E-Clipse Bypass
Vertical E-Clipse Bypass
BP0063-1
H1
W1
UL TYPE 3R E-Clipse Bypass

ABB ACH550 series Specifications

General

Enclosure	IP21, IP55
Output Voltage	0 to Supply Voltage
Frequency Range	0 to 500 Hz
Control Method	Scalar control, vector control
Braking Chopper	Optional
Communication	Modbus RTU, Profibus, CANopen, Ethernet
Storage Temperature	-40°C to +70°C
Relative Humidity	5 to 95 % RH, non-condensing
Altitude	Up to 1000 m (derating above 1000 m)
Cooling Method	Air-cooled
