Installation instructions 91
Connecting a PC
WARNING! Do not connect the PC directly to the control panel connector of the
control unit as this can cause damage.
To be able to connect a PC to the drive, you need an assistant control panel (ACS-AP-x or
ACH-AP-H). It is also possible to use CCA-01 configuration adapter.

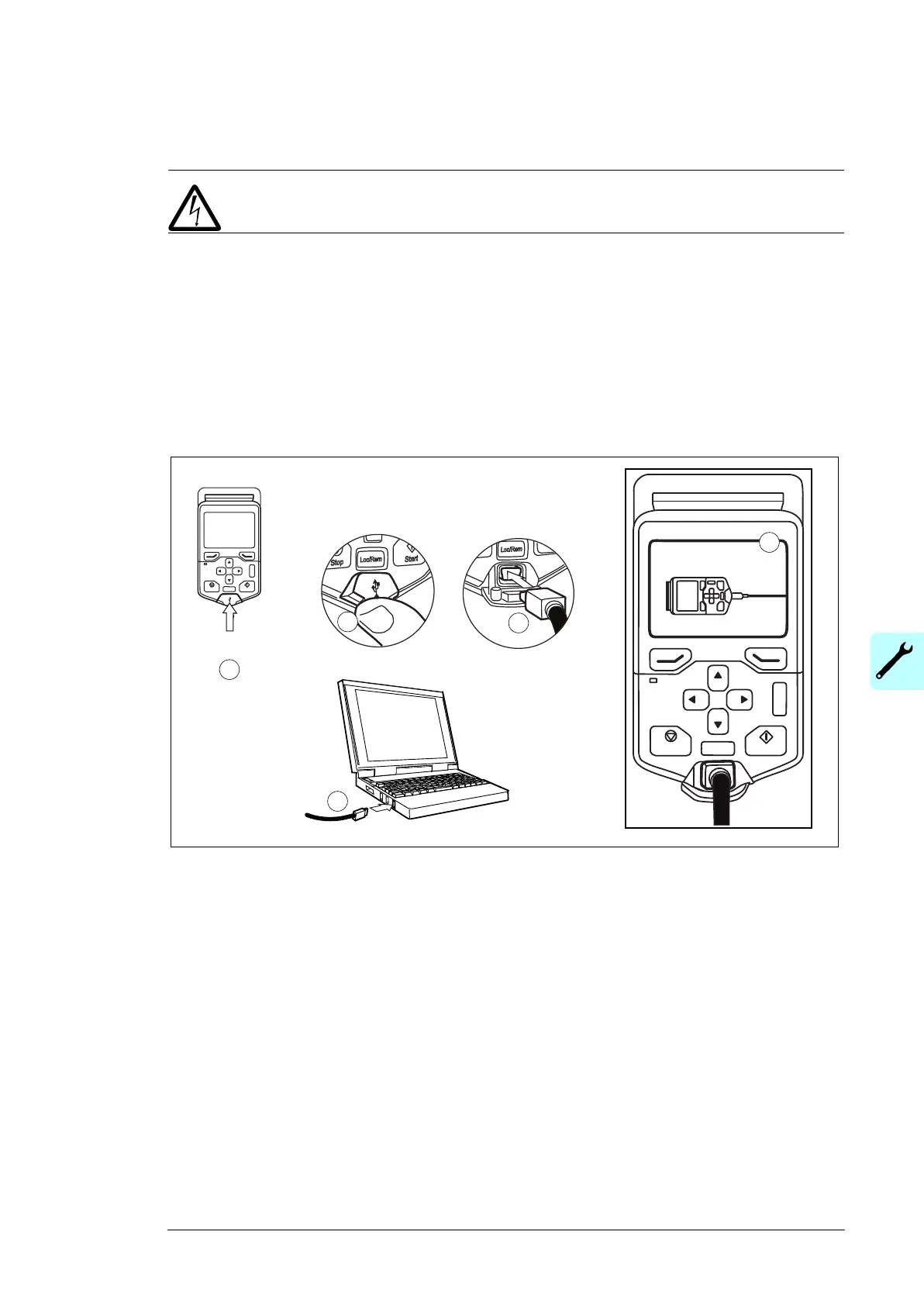

To connect a PC to the control panel with a USB data cable (USB Type A <-> USB Type
Mini-B):
1. Lift the USB connector cover on the control panel from bottom upwards.
2. Insert the USB cable Mini-B plug in the control panel USB connector.
3. Insert the USB cable A-plug in the USB connector of the PC (a). -> The panel displays:
USB connected (b).
Note: When a PC is connected to the control panel, the control panel keypad is disabled.
In this case, the control panel acts as a USB-RS485 adapter.
For information on using the Drive composer PC tool, see Drive composer PC tool user's
manual (3AUA0000094606 [English]).
?
Start
Stop
Loc/Rem
USB connected
