In-/output signals
addition to this an extension of I/O´s by SDCS-IOE 1
is possible.

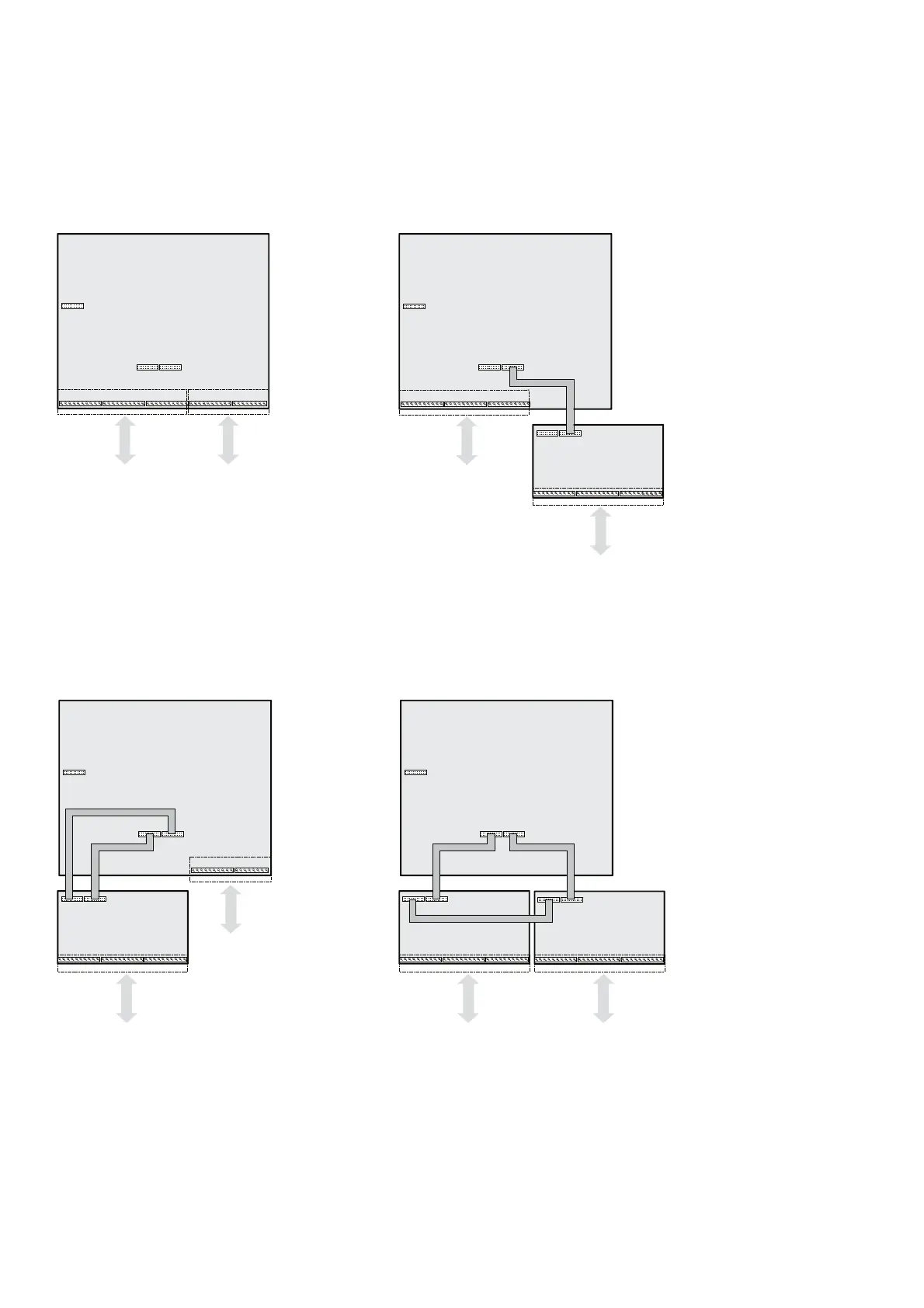

Fig. 2.5/1: I/O´s via SDCS-CON-2
Analogue I/O´s: standard
Digital I/O´s: not isolated
Encoder input: not isolated
Fig. 2.5/2: I/O´s via SDCS-CON-2 and SDCS-IOB-2
Analogue I/O´s: standard
digital I/O´s: all isolated by means of
optocoupler/relay; the signal
status is indicated by LED
Fig. 2.5/3: I/O´s via SDCS-CON-2 and SDCS-IOB-3
Analogue I/O´s: more input capacity
digital I/O´s: not isolated
encoder input: isolated
current source for: PT100/PTC element
Fig. 2.5/4: I/O´s via SDCS-IOB-2 and SDCS-IOB-3
Analogue I/O´s: more input capacity
digital I/O´s: all isolated by means of
optocoupler/relay; the signal
status is indicated by LED
current source for: PT100/PTC element
The converter can be connected in 4 different ways to
a control unit via analogue/digital links. Only one of
the four choices can be used at the same time. In
X3: X4: X5: X6: X7:
X2: X1:
X17:
SDCS-CON-2
1 2
X3: X4: X5:
X2: X1:
X17:
SDCS-CON-2
X3: X1:
SDCS-IOB-2
1
4
X1: X2:
SDCS-IOB-3
X6: X7:
X2:
X17:
X1:
3
2
SDCS-CON-2
X2:
SDCS-IOB-3
X2:
X17:
SDCS-CON-2
X1:
SDCS-IOB-2
X1:
X1:
X3:
3 4
2.5 Options for DCS 600 MultiDrive converter modules
