Panel (control and display panel)
The CDP 312 control and display panel communicates
with the power converter via a serial connection in
accordance with the RS 485 standard at a transmission
rate of 9.6 kBaud. It is an option for the converter unit.
After completion of commissioning, the panel is not
necessarily required for diagnostic. The basic unit has a
7-segment display indicating errors.

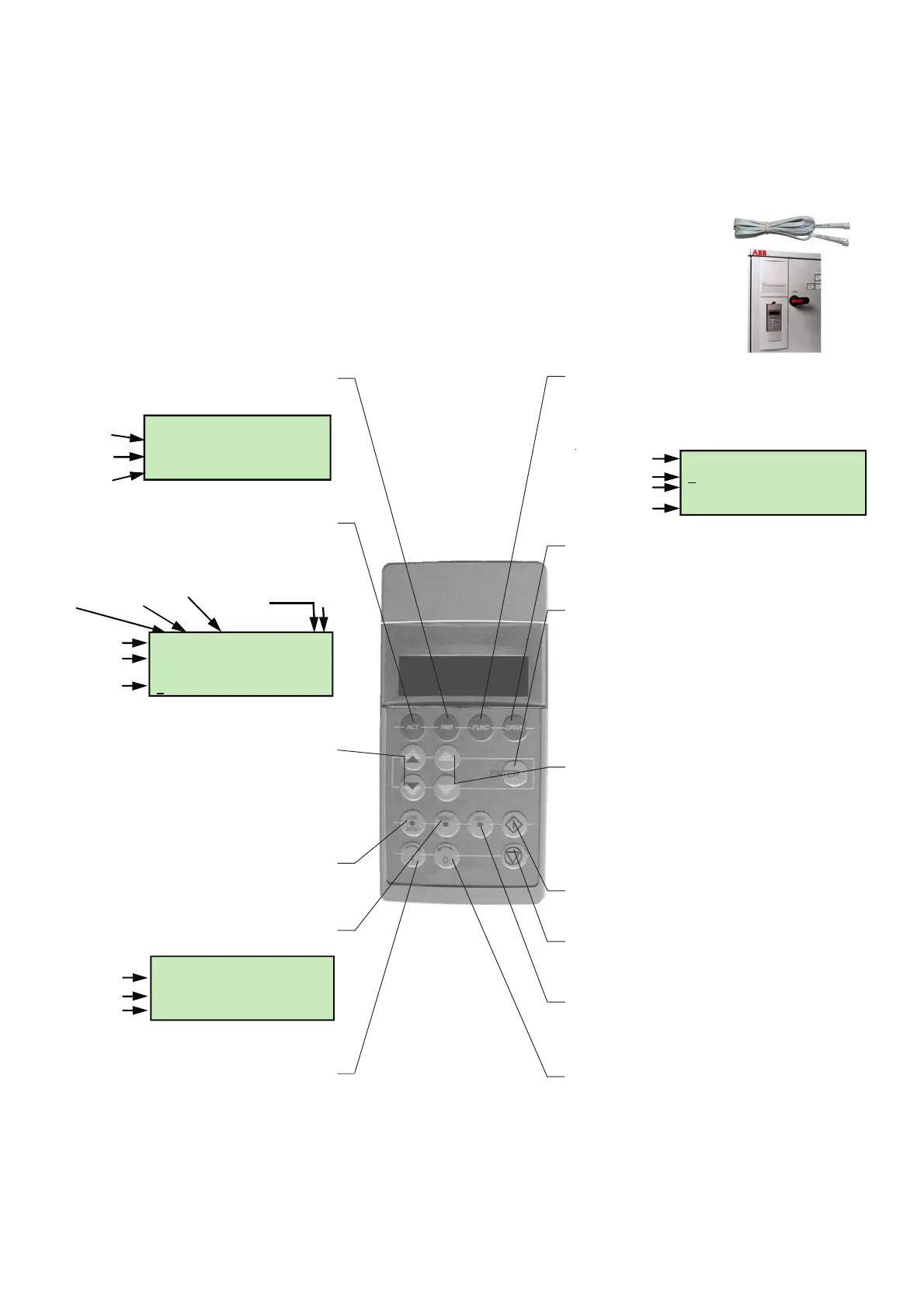

Fig. 2.5/8: Function keys and various displays on the removable
control and display panel.
Actual
Selects the display of feedback values plus the
signal group and the error memory group.
Parameters
For selecting and adjusting
all parameters and signals.
Function
Selects the “functions” operating mode; can be used
to perform special functions such as uploading and
downloading of parameter sets.
Drive
for extensions
Twin arrow keys
are used to change the group. In the parameter and
reference presetting modes, you can alter the param-
eter value or the reference setting ten times faster by
means of the twin arrow keys than by means of the
single arrow key.
Arrow keys
are used to select parameters within a group. You al-
ter the parameter value or the reference setting in
the parameter and reference presetting modes. In
the feedback signal display mode, you select the line
you want.
Enter
is used in the following modes:
Parameter setting: enter new parameter value
Actual value
signal display: enter the current signal selec-
tion mode
Signal selection: accept selection and return to
the feedback value signal dis-
play mode
Local/Remote
is used to select local (control
panel) or remote control.
Reset
Fault acknowledge key.
Reference
is used to activate the reference presetting mode.
Start
starts the drive in local mode.
Stop
shuts the drive down if you are in local mode.
On
in local mode switches the main contactor on.
Off
in local mode switches the main contactor off.
Features
• 16 membrane pushbuttons in three function groups
• LCD display has four lines with 20 characters each
• Language: English
• Options for the CDP 312:
– cable, separated from the power converter for
utilization; 3 m long
– kit for mounting the panel in the switchgear
cubicle door
Status row
Functions to be
selected
Display contrast
setting
0 L 0,0 rpm 00
U
PLOAD <==
DOWNLOAD ==>
CONTRAST
Group
and name
Subgroup
and name
0 L 0,0 rpm 00
17 RAMP GENERATOR
08 ACCEL 1
20.0 s
Value
0 L 0,0 rpm 00
SPEEED ACT 0,0 rpm
CONV CUR 0 A
U ARM ACT 0 V
ID number
of the
drive
selected
Control
location
L = local
= remote
Main contactor
status
0 = open
1 = closed
Speed
reference
rpm
Run status
1 = Run
0 = Stop
Status row
Actual signal
name and value
Cursor shows
the row selected
0 L 0,0 rpm 00
1 LAST FAULT
Emergency stop
3212:59:35:56
1 = last fault
2 = last-but-one fault
99 = last fault
Total time after
switch-on
HHHH:MM:SS.ss
Name of Fault
or alarm
To Next Page
