ABB DCS 600 MultiDrive Manual

II F 2-24
3ADW000072R0501_DCS600_System_description_e_e
Fig. 2.6/5: Classification
Not applicable
First environment (residential area with light industry) with restricted distribution
Not applied, since general distribution sales channel excluded
satisfied
satisfied
The paragraphs below describe selection of the electri-
cal components in conformity with the EMC Guide-
line.
The aim of the EMC Guideline is, as the name implies,
to achieve electromagnetic compatibility with other
products and systems. The guideline ensures that the
emissions from the product concerned are so low that
they do not impair another product's interference
immunity.
In the context of the EMC Guideline, two aspects must
be borne in mind:
• the product's interference immunity
• the product's actual emissions
The EMC Guideline expects EMC to be taken into
account when a product is being developed; however,
EMC cannot be designed in, it can only be quantita-
tively measured.
Note on EMC conformity
The conformity procedure is the responsibility of both
the power converter's supplier and the manufacturer of
the machine or system concerned, in proportion to
their share in expanding the electrical equipment in-
volved.
EMC filters
You will find further in-
formation in publica-
tion:
Technical Guide
chapter: EMC Com-
pliant Installation and
Configuration for a
Power Drive System
MM

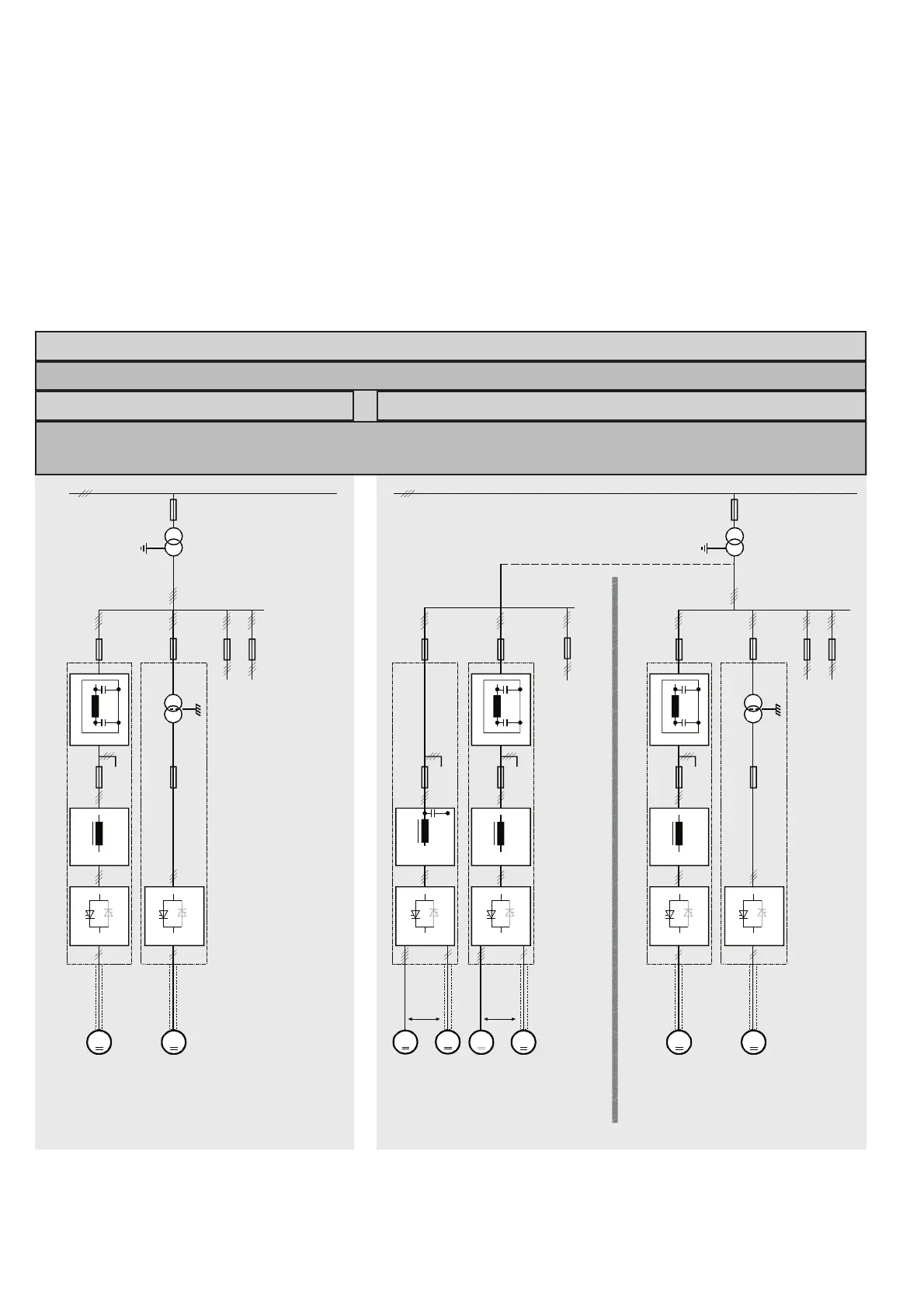

Mains filter
Converter
Line reactor
Supply transformer for a residential
area (rating normally
≤
1,2 MVA)
Earthed public 400-V
network with neutral
conductor
Medium-voltage network
Earthed
neutral
To other loads, e.g. drive systems
An isolating transformer
with an earthed screen
and earthed iron core
renders mains filter and
line reactor superfluous.
Operation at public
low-voltage network
together with other
loads of all kinds.
Residential area
To other loads which have to be protected from the system disturbances caused by
power converters (HF interference and commutation notches)
Converter
MM
MM
MM
alternative alternative
Line reactor +
Y-capacitor
Medium-voltage network
Supply transformer for a residential
area (rating normally
≤
1.2 MVA)
Earthed
neutral
Earthed public 400-V
network with neutral
conductor
To other loads, e.g. drive systems
Mains filter
Line reactor
Converter Converter
Mains filter
Line reactor
Converter Converter
An isolating transformer
with an earthed screen
and earthed iron core
renders mains filter and
line reactor superfluous.
Operation at public
low-voltage network
together with other
loads of all kinds.
To other loads, e.g. drive systems
To other loads which have to be protected from the system disturbances caused by
power converters (HF interference and commutation notches)
Earthed public 400-V
network with neutral
conductor
Operation at public
low-voltage network
together with other
loads of all kinds.
Light industry
Residential area
