2.1 Environmental Conditions
System connection
Voltage, 3-phase: 230 to 1000 V acc. to IEC 60038
Voltage deviation: ±10% continuous; ±15% short-time *
Rated frequency: 50 Hz or 60 Hz
Static frequency deviation: 50 Hz ±2 %; 60 Hz ±2 %
Dynamic: frequency range: 50 Hz: ±5 Hz; 60 Hz: ± 5 Hz
df/dt: 17 % / s
* = 0.5 to 30 cycles.
Please note: Special consideration must be taken for voltage deviation
in regenerative mode.
Degree of protection
Converter Module and options
(line chokes, fuse holder,
field supply unit, etc.): IP 00
Enclosed converters: IP 20/21/31/41
Paint finish
Converter module: NCS 170 4 Y015R
Enclosed converter: light grey RAL 7035

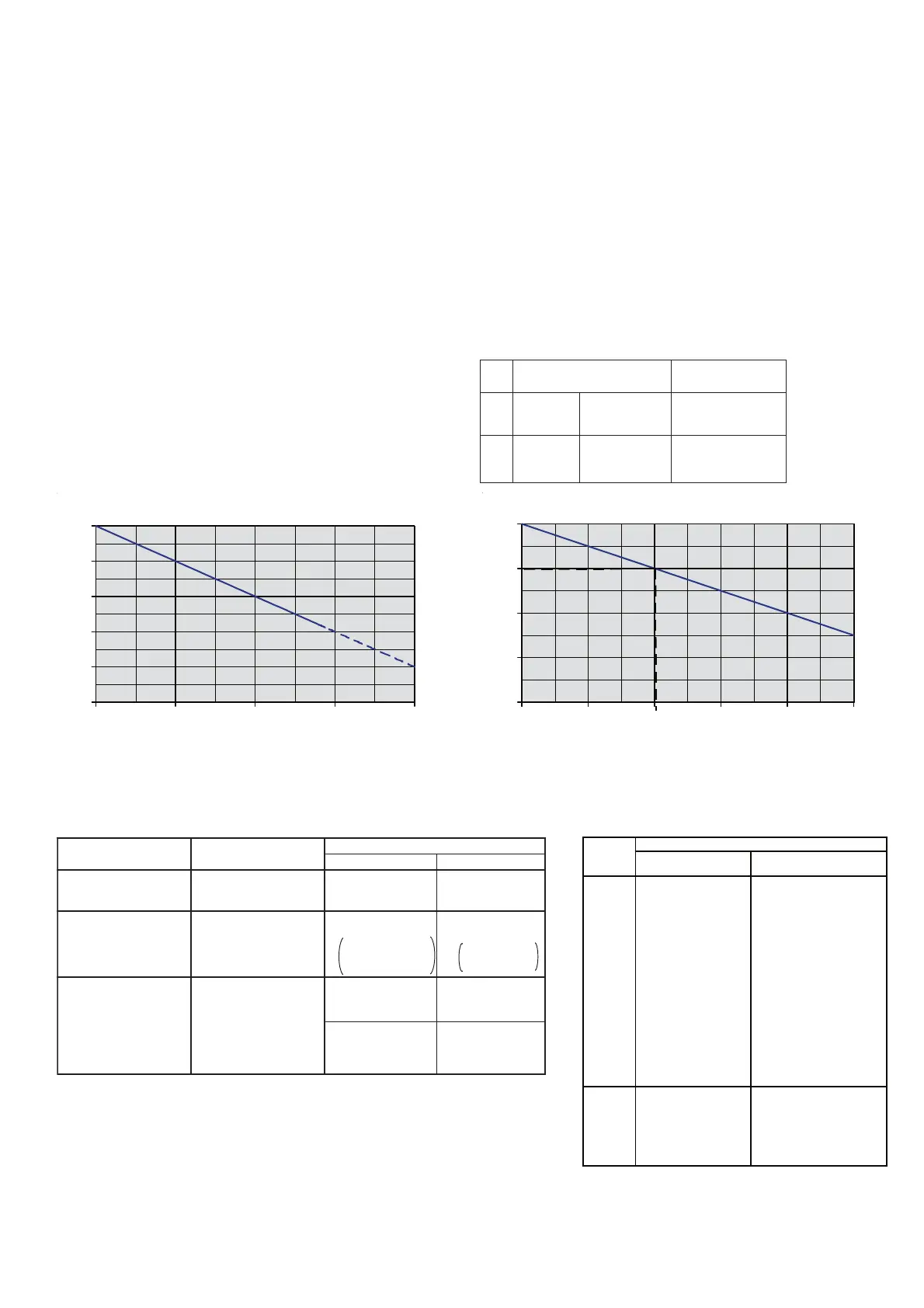

Fig. 2.1/1: Effect of the site elevation above sea level
on the converter’s load capacity.
Current reduction to (%)
Fig. 2.1/2: Effect of the ambient temperature on the
converter module load capacity.
Current reduction to (%)
Regulatory Compliance
The converter module and enclosed converter components are designed for use
in industrial environments. In EEA countries, the components fulfil the require-
ments of the EU directives, see table below.
North American Standards
In North America the system components fulfil
the requirements of the table below.
70
80
90
100
110
30 35 40 45 50 55
°C
50
60
70
80
90
100
1000 2000 3000 4000 5000
m
Environmental limit values
Permissible cooling air temperature
- at converter module air inlet: 0 to +55°C
with rated DC current: 0 to +40°C
w. different DC curr. acc. Fig. 2.1/2: +30 to +55°C
- Options: 0 to +40°C
Relative humidity (at 5...+40°C): 5 to 95%, no condensation
Relative humidity (at 0...+5°C): 5 to 50%, no condensation
Change of the ambient temp.: < 0.5°C / minute
Storage temperature: -40 to +55°C
Transport temperature: -40 to +70°C
Pollution degree (IEC 60664-1, IEC 60439-1): 2
Site elevation:
<1000 m above M.S.L.: 100%, without current reduction
>1000 m above M.S.L.: with current reduct., see Fig. 2.1/1
Size Sound pressure level L
P
Vibration
(1 m distance)
as module enclosed conv. as module enclosed conv.
C1 59 dBA 57 dBA g, 2...150 Hz
C2 75 dBA 77 dBA g, 2...150 Hz
A5 73 dBA 78 dBA g, 2...150 Hz
A6 75 dBA 73 dBA g, 2...150 Hz
A7 82 dBA 80 dBA g, 2...150 Hz
0.5 g, 5...55 Hz
1 mm, 2...9 Hz
0.3 g, 9...200 Hz
evitceriDnoinUnaeporuEecnarussAs'rerutcafunaM
sdradnatSdezinomraH
eludomretrevnoCretrevnocdesolcnE
evitceriDyrenihcaM
CEE/73/89
CEE/86/39
fonoitaralceD
noitaroprocnI
1-40206NE
]1-40206CEI[
1-40206NE
]1-40206CEI[
evitceriDegatloVwoL
CEE/32/37
CEE/86/39
ytimrofnoCfonoitaralceD
1-1-64106NE
]1-1-64106CEI[
]--CEI[87105NE
lanoitiddaees
46606CEI
1-40206NE
]1-40206CEI[
1-93406NE
]1-93406CEI[
evitceriDCME
CEE/633/98
CEE/86/39
ytimrofnoCfonoitaralceD
llatahtdedivorP(
snoitcurtsninoitallatsni
elbacgninrecnoc
dnagnilbac,noitceles
detacidedrosretlifCME
).dewolloferaremrofsnart
3-00816NE ➀
]3-00816CEI[
3-00816NE ➀
]3-00816CEI[
➀ htiwecnadroccani
230000WDA3
➀ ecnadroccani
/230000WDA3htiw
190000WDA3
