ABB IRB 6700 - 200/2.60 User Manual

3.3.3 Inspecting the oil level in axis-2 gearbox

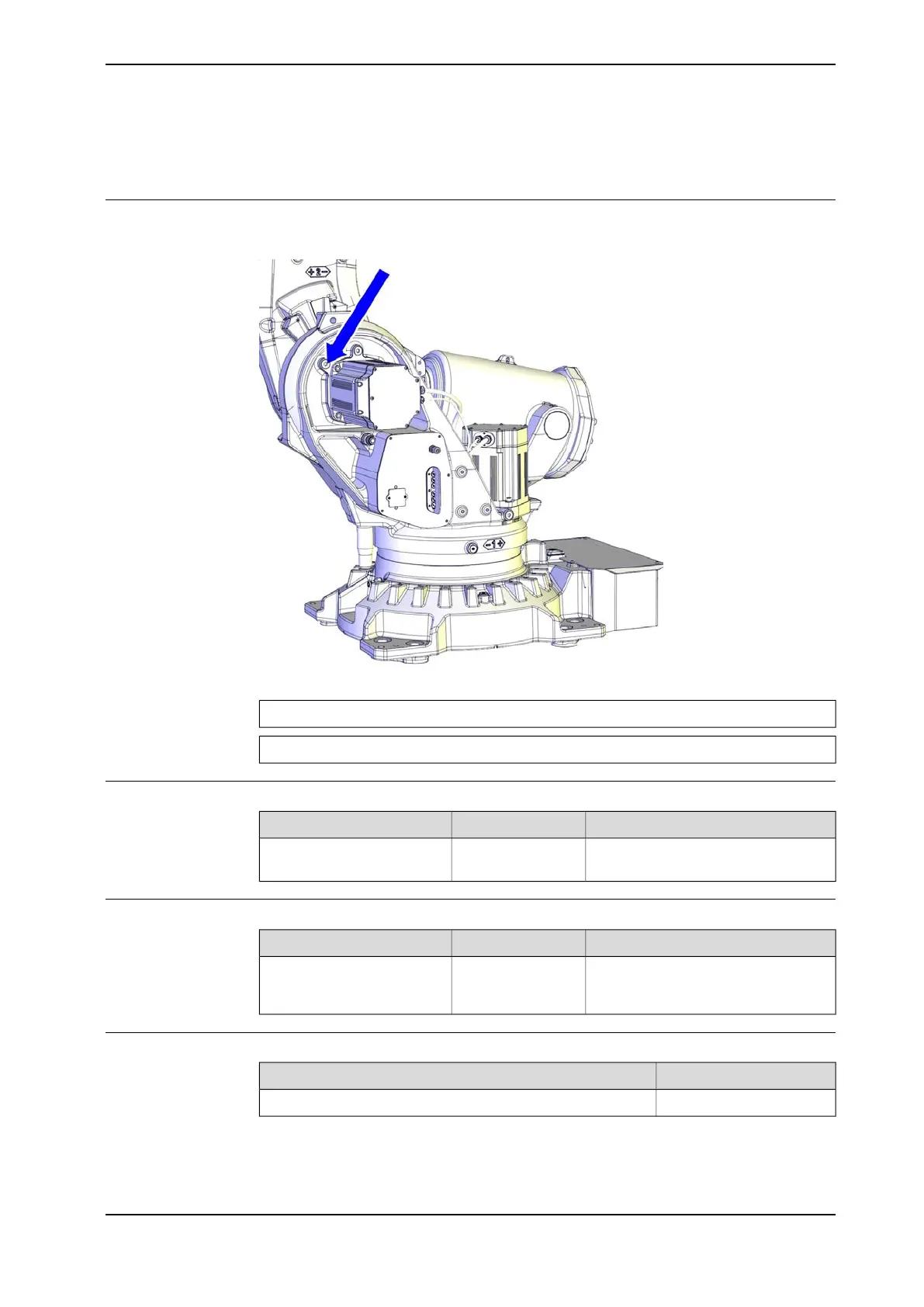

Location of oil plug
The gearbox has a level plug that is located as shown in the figure.
xx1200000952
Tightening torque: 24 Nm
Tightening torque: 24 Nm
Required tools
NoteArticle numberEquipment, etc.
Content is defined in section Standard
toolkit on page 829.
-Standard toolkit
Required consumables
NoteArticle numberConsumables
Information about the oil is found in
Technical reference manual - Lubrica-
tion in gearboxes.
-Lubricating oil
Required documents
Document numberDocument name
3HAC042927-001Technical reference manual - Lubrication in gearboxes
Continues on next page
Product manual - IRB 6700 123
3HAC044266-001 Revision: N
© Copyright 2013 - 2018 ABB. All rights reserved.
3 Maintenance
3.3.3 Inspecting the oil level in axis-2 gearbox
