4.6.5 Restoring the balancing device
Overview
This section details how to restore the balancing device and how to remove the
press tool from the device.
DANGER
There is a high tensioned spring inside the balancing device, incorrect handling
may cause injuries and damage property.
Press tool and hydraulic cylinder

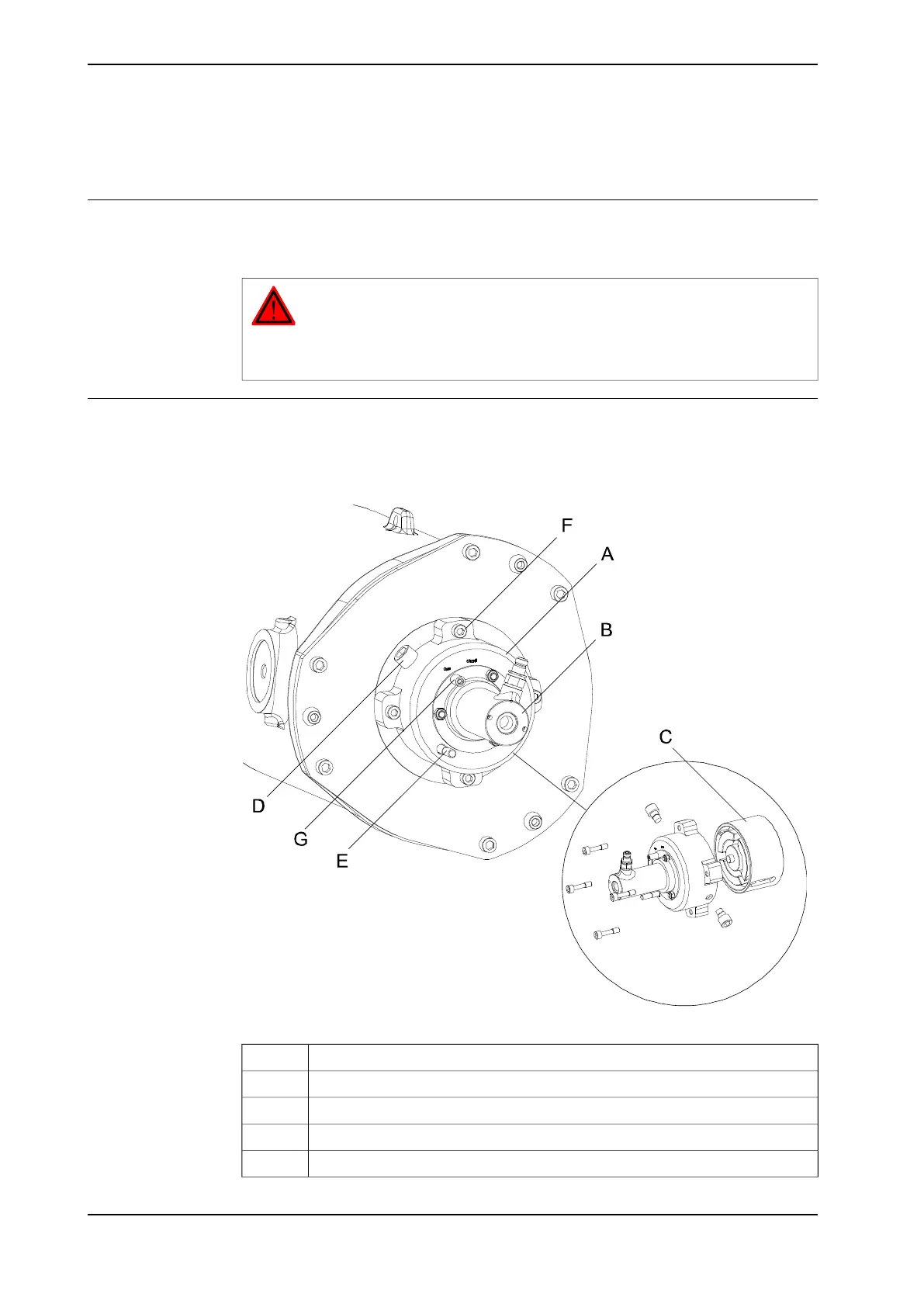

The figure below shows the hydraulic cylinder mounted on the press tool.
The press tool includes two press devices that are used to different models of the
balancing device.
xx0200000174
Press blockA
Hydraulic cylinderB
Press deviceC
Bolt, press deviceD
Moving pin with markingE
