3.3.12 Inspecting the additional mechanical stops

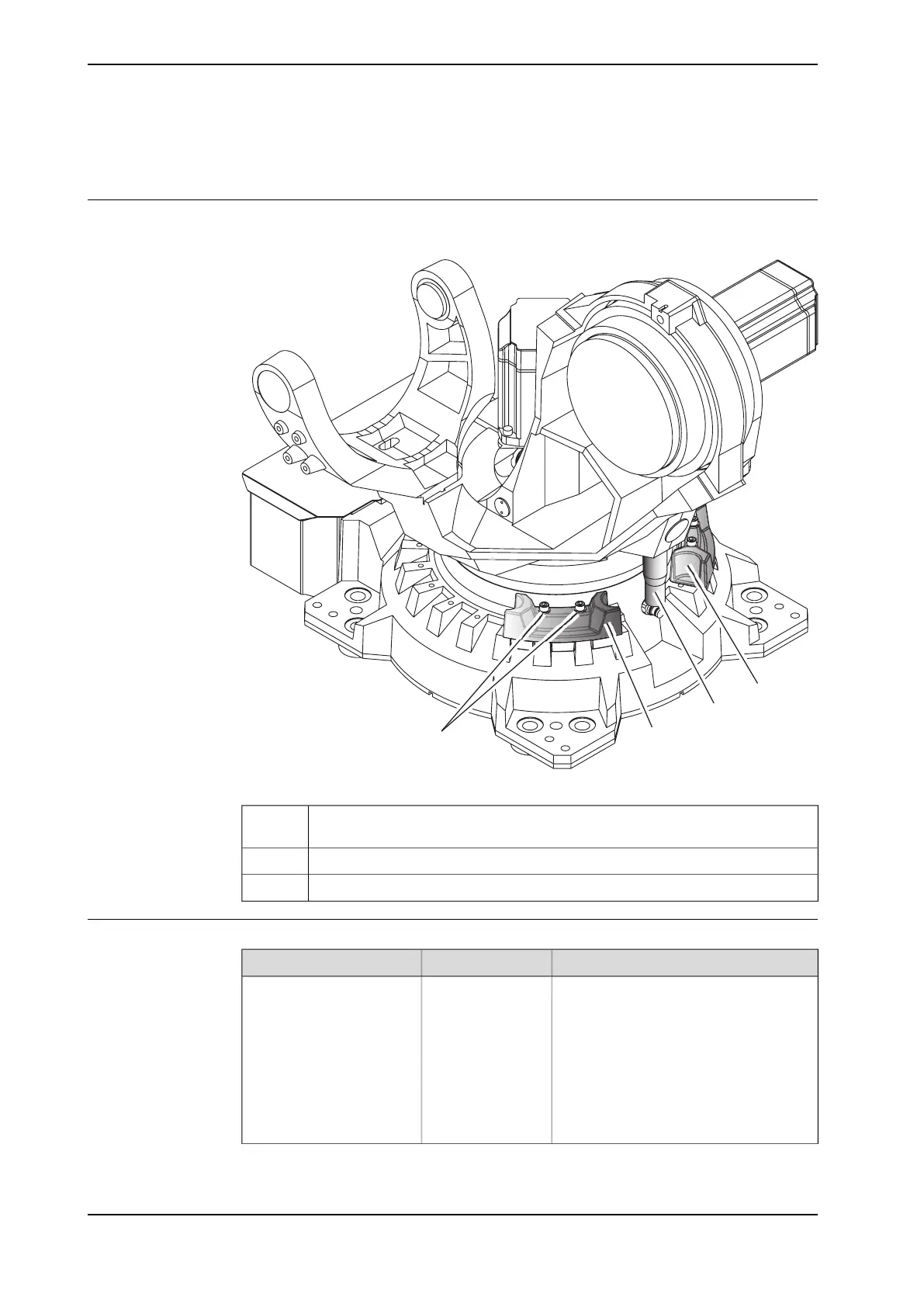

Location of mechanical stops
The figure shows the location of additional mechanical stops.
A
B
C
B
xx1300001971
Attachment screws M12x70 quality 12.9 Gleitmo 603 (2 pcs per additional
mechanical stop)
A
Movable mechanical stopB
Mechanical stop pin axis-1C
Required equipment
NoteArticle numberEquipment etc.
IRB6700 235/2.65, 205/2.80, 175/3.05,
150/3.20, 200/2.60, 155/2.85
3HAC055744-001Movable mechanical stop
axis 1
Limits the robot working range by 15°.
Includes attachment screws and an as-
sembly drawing.
• Mechanical stop
• Attachment screws M12x70 quality
12.9 Gleitmo 603 and washers
• Document for mechanical stop
Continues on next page
148 Product manual - IRB 6700
3HAC044266-001 Revision: N
© Copyright 2013 - 2018 ABB. All rights reserved.
3 Maintenance
3.3.12 Inspecting the additional mechanical stops
