4.5 Upper and lower arms
4.5.1 Replacing the upper arm
Location of the upper arm

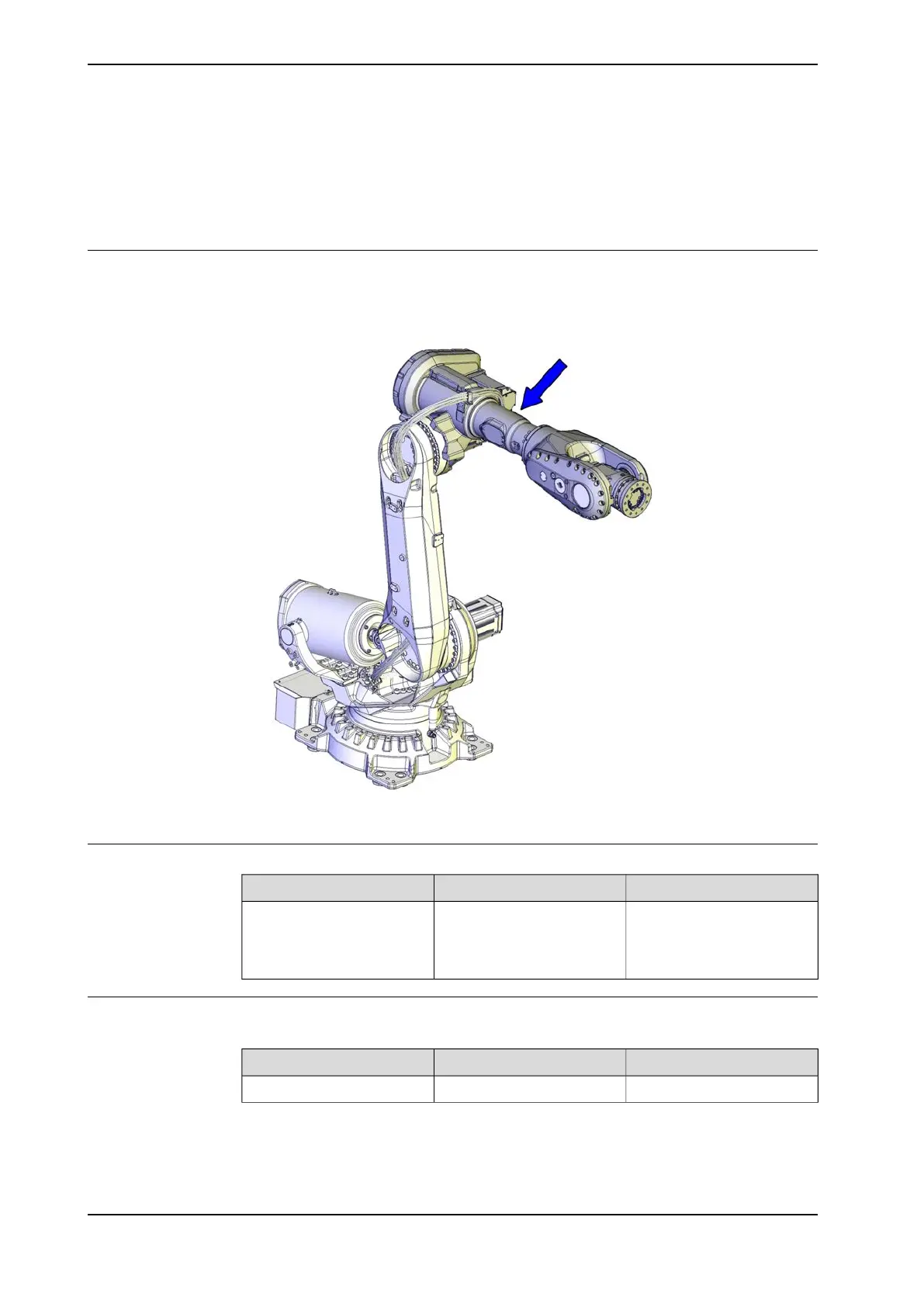

The upper arm is located as shown in the figure. These sections describe how to
replace the complete upper arm, which includes the wrist unit.
xx1300000483
Spare part
NoteSpare part numberSpare part
See Product manual, spare
parts - IRB 6700/IRB 6700Inv.
Upper arm
Product manual, spare
parts - IRB 6790
Consumables
Parts needed to be replaced after removal.
NoteArticle numberEquipment, etc.
Used to lubricate o-rings.3HAB3537-1Grease
