Prepared by, date:
We reserve all rights in this document and in the information contained therein.Reproduction, use or
disclosure to third parties without express authority is strictly forbidden. © Copyright 2003 ABB
Page
50
50
Total
Latest revision:
Approved by, date:

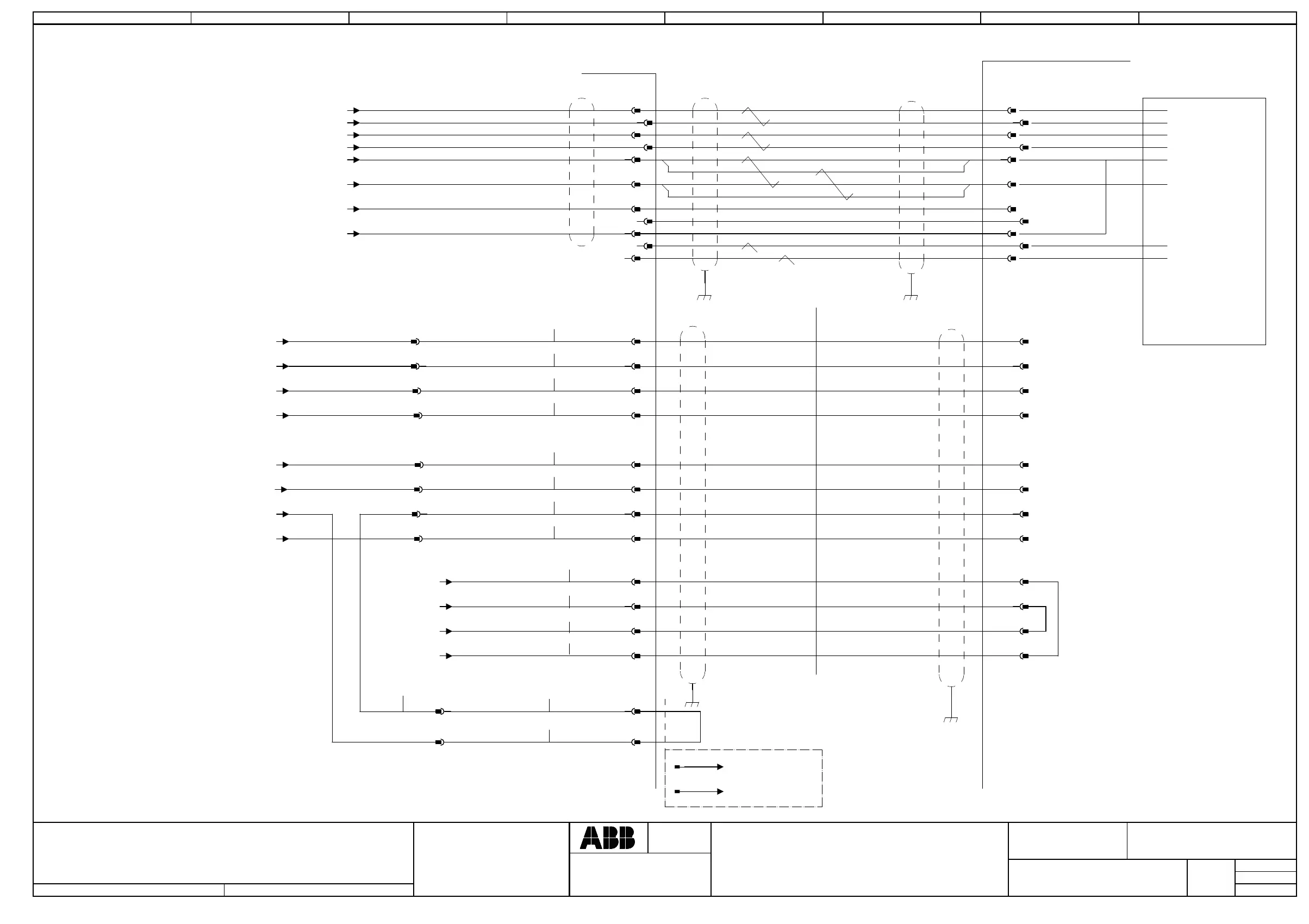

CONTROL CABLE IRB 1410, 1600, 260
Location:
Plant:
=
+
+
Sublocation:
CAB
Document no.
Next
Rev. Ind
Lab/Office:
Status:
CNYAWU2
11
7
8
3HAC031403-003
Approved
4
1
2
3
5
6
DRIVE
MODULE
SDI
SDI-N
SDO
0V
24V
0V
BATSUP
BATLD
MANIPULATOR
SDO-N
SERIAL
MEASUREMENT
BOARD
WH
WH
WH
WH
BN
GN
BU
OG
GY
RD
SAFETY UNIT
A21-X5
CONTACTOR UNIT
AXIS COMPUTER BOARD
A42-X4
C1
C2
B4
B3
B7
B2
B9
C10
C8
C9
B8
C7
=MAN+R1.1400-MP
K
H
D
B
L
J
G
F
E
C
A
=MAN+R1.1400-SMB
6
BU
BU
BU
4
2
5
3
1
-BR.XS/BR.XP1
8
7
-493
1
-Ext_PTC
2
2
2
-W625
-W624
35
34
-XS9
-_433
AWG16
BU
GYBU
GYGN
OGBU
OGBK
OGRD
GYWH
GYRD
GY
OGGN
OG
OGWH
GYBK
-_434
AWG16
-_435
AWG16
-_436
AWG16
-_437
AWG16
-_439
AWG16
-_440
AWG16
-_438
AWG16
A
-XS/XP2
C
E
F
G
J
L
C7
-XS/XP1
B16
B12
BU
BU
BU
BU
K
H
D
B
D4
D3
D1
D2
B15
C1
C2
B14
B13
-497
-495
-496
-498
35
-XP9
34
-PTC_RET
/
15;6
-PTC
/
15;6
-MRC_0V;3
/
39;6
-MRC_0V;2
/
39;6
-24V_SMB1
/
39;6
-MRC_0V;1
/
39;6
-MRCI1_N
/
39;6
-MRCI1
/
39;6
-MRCO1_N
/
39;6
-MRCO1
/
39;6
-0V BRAKE;1
/
11;3
-0V BRAKE;2
/
11;3
-BRAKEREL2
/
15;6
-BRAKEPB
/
11;3
-BRAKEREL1
/
15;6
-EXT.LAMP
/
15;5
-LIM_2B
/
12;7
-LIM_2A
/
12;7
-LIM_1B
/
12;7
-LIM_1A
/
12;7
-PTC_RET1
/
27.a;8
-PTC1
/
27.a;8
49
Table of Contents
Page tree
1
CAB
1
1 TITLE PAGE
1
2 TITLE PAGE
2
3 Table of contents:
3
4 Table of contents:
4
5 REVISION INFORMATION
5
6 Front View
6
7 Top View
7
8 Side View
8
9 BLOCK DIAGRAM
9
10 MAIN POWER INPUT
10
11 POWER SUPPLY DSQC 661 AND 662
11
12 EMERGENCY STOP
12
13 RUN CHAIN OPERATING MODE SELECTOR, 2 MODES
13
14 SAFETY STOP
14
15 POWER UNIT SERVO DISCONNECTOR
15
16 RUN CHAIN EXT OPERATING MODE SELECTOR, 2MODES
16
17 FPU, FLEXPENDANT
17
18 MAIN COMPUTER DSQC 639
18
19 MAIN COMPUTER DSQC 639
19
20 Fieldbus adapter. Ethernet/IP, Profibus, Profinet IO
20
21 PROFIBUS DP M/S
21
22 DEVICENET SINGLE/DUAL ADAPTER
22
23 ETHERNET IP CARD
23
24 DEVICENET LEAN
24
25 DEVICENET ADAPTER
25
26 DSQC 652
26
27 DSQC 652
27
27.a OPTION: SAFETY AND I/O INTERFACE
28
28 DIGITAL PART OF COMBI I/O AND DIGITAL I/O UNIT
29
29 DIGITAL I/O UNIT
30
30 COMBI I/O UNIT
31
31 RELAY I/O UNIT
32
32 RELAY I/O UNIT
33
33 REMOTE I/O UNIT
34
35 ENCODER UNIT
35
36 CC-Link
36
37 AXIS COMPUTER UNIT
37
38 CUSTOMER CONNECTOR
38
39 AXIS COMPUTER UNIT
39
40 RECTIFIER AND BLEEDER
40
41 FAN UNIT
41
42 REMOTE SERVICE
42
43 SERVO DRIVE SYSTEM IRB 120
43
44 CONTROL CABLE IRB 120
44
45 SERVO DRIVE SYSTEM IRB 140
45
46 CONTROL CABLE IRB 140
46
47 SERVO DRIVE SYSTEM IRB 360
47
48 CONTROL CABLE IRB 360
48
49 SERVO DRIVE SYSTEM IRB 1410, 1600, 260
49
50 CONTROL CABLE IRB 1410, 1600, 260
50
Page list
