When the device is already connected to PCM600 and the communication is
established, PCM600 can read the configuration directly from the physical device.
This is useful when an order-specific device is used. The order configuration is
written to the device at the factory and PCM600 is able to access it.
If the device is not configured or it contains an invalid configuration, select Write
to IED before any other operations in the online mode. If the device has a valid
configuration, select Read from IED directly after the device instance has been
created to retain the communication parameter’s value. In Parameter Setting tool,
the communication parameters are then updated according to the device
configuration. Otherwise, the Parameter Setting tool contains the default data, for
example, the default IP Address 192.168.2.10.
3.4.1 Inserting an IED in offline mode
1. In the Plant Structure view, right-click the bay and select New/Remote I/O
IEDs/RIO600.
The Configuration mode selection page dialog box opens.
2. Under Configuration mode, select Offline Configuration and click Next.

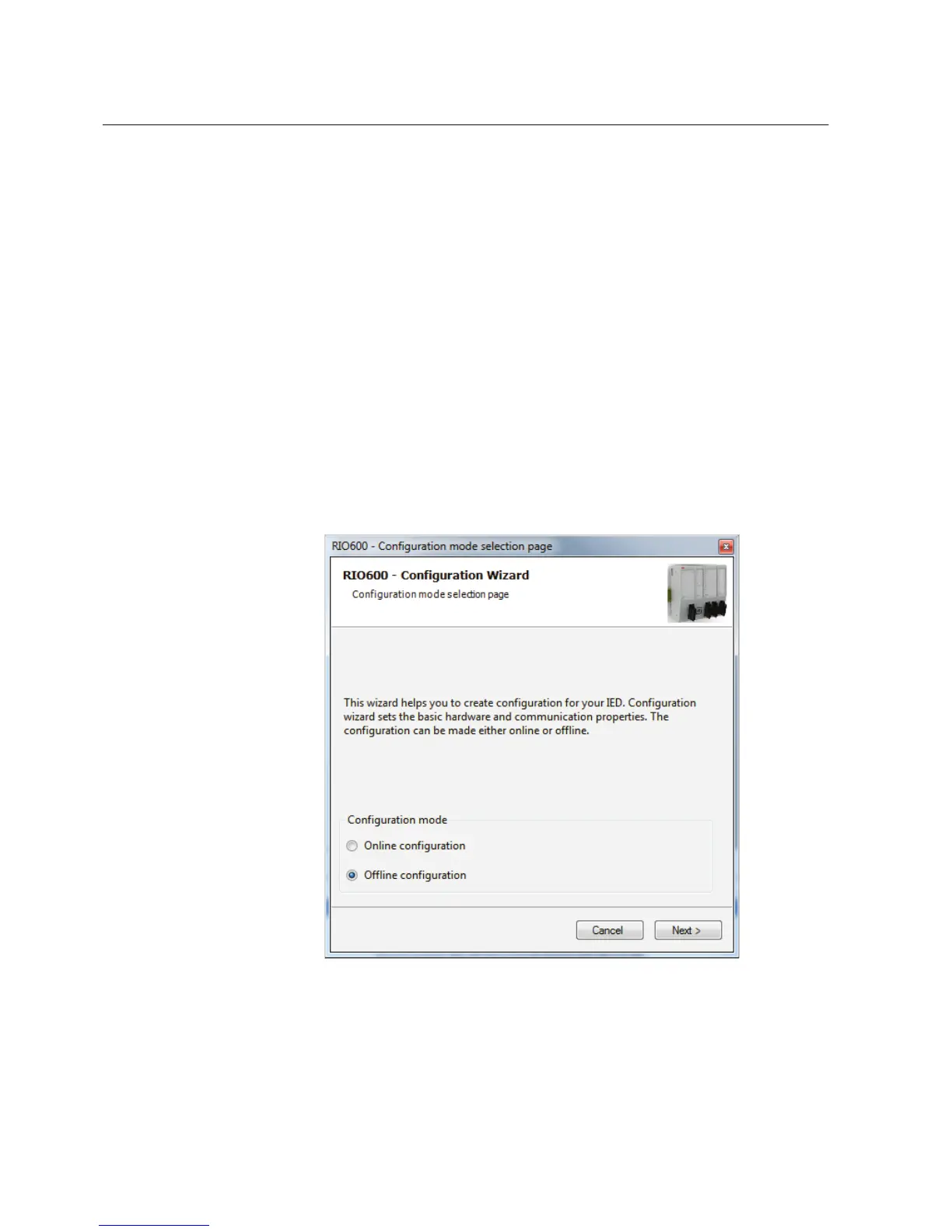

GUID-C9A317A6-0D51-4745-B3BA-48F0E125FF2B V1 EN
Figure 16: Selecting offline configuration mode
3. In the IED protocol list, select for example IEC 61850 and click Next.
Section 3 1MRS757489 A
Setting up a project
18 RIO600
Configuration Manual
