Section 5 Using the Signal Matrix tool
5.1 Starting the Signal Matrix tool
The purpose of SMT with RIO600 is to map signals from other IEDs to the
RIO600 binary outputs and thus connect the two devices over the IEC 61850
communication link.
In a PCM600 project, the other IEDs see the RIO600 binary inputs in the SMT
GOOSE page after the system configuration.
GUID-538E3515-62DA-42BF-B653-D4AA7D2251DA V1 EN

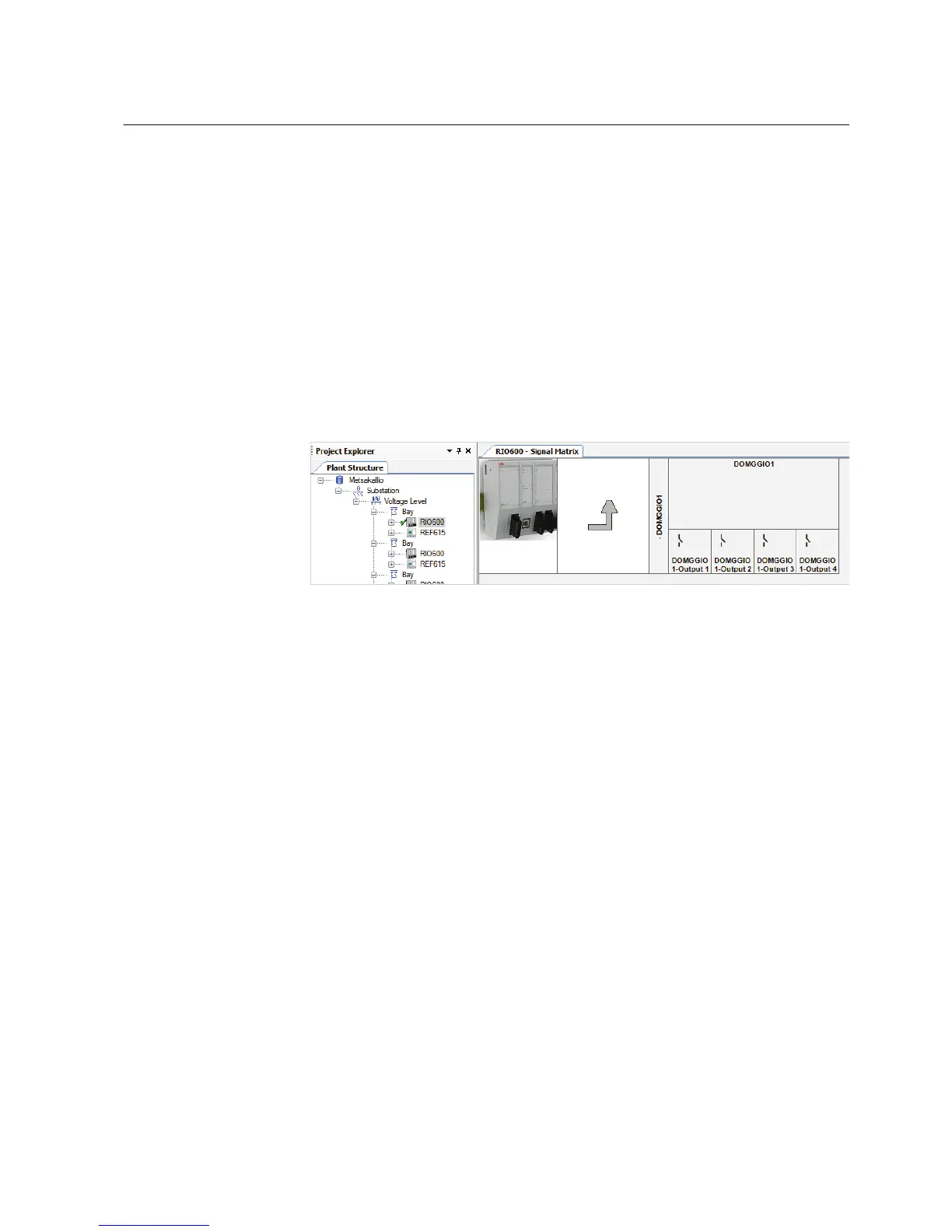

Figure 45: Signal Matrix tool before GOOSE engineering
• In the Plant Structure, right-click a device and select Signal Matrix.
1MRS757489 A Section 5
Using the Signal Matrix tool
RIO600 43
Configuration Manual
