8.3 Creating GOOSE datasets
The RIO600 Connectivity Package provides automatically the default GOOSE
datasets. The connectivity package collects all the available inputs and module
health data to these datasets. They can be directly taken into use in IET600 by
creating a GOOSE Control Block and linking the available dataset to it. In case the
user wants to create their own datasets, it is recommended to delete the existing
ones and create a new one.
RIO600 supports maximum of two datasets in the application. If the
RIO stack contains more than five binary I/O modules, there are
two default datasets instead of only one dataset.
1. Select the IEDs tab in the navigation pane.
2. Click the IED node to select a Publisher IED.
3. Click the Datasets tab in the editor pane.
4. To add a new data set, right-click on the area containing the data set names
and select Insert new row.

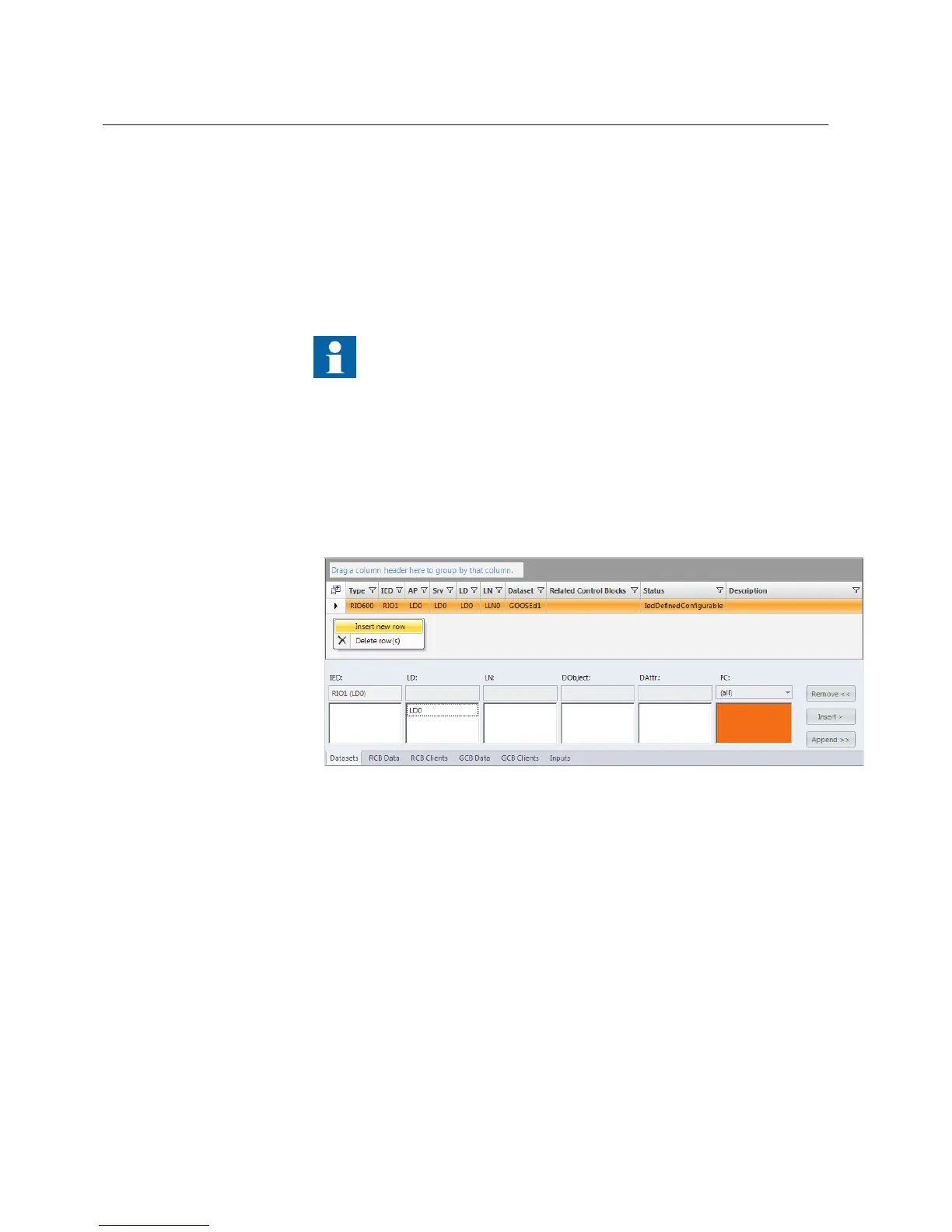

GUID-72438822-9B69-4BFE-8339-60BF3F2C4DEA V1 EN
Figure 76: Creating new row under Datasets tab
5. In the Create New Dataset dialog box, define a dataset name and click OK.
A row representing the new dataset is created under the Dataset tab.
Section 8 1MRS757489 A
GOOSE engineering
