2.1. All parameters of a device like RIO600
2.2. A selected group of parameters like General Parameters
2.3. A selected parameter like IRF channel number
3. Under Parameter option, check the box Copy IED values to PC value field
to update the IED value column after the configured values are read from the
device.
4. Click OK to read the parameters from the device.
4.3 Setting communication and synchronization
parameters
1. In the Plant Structure view, go to RIO600/IED Configuration/HW
Configuration/LECM to set the communication parameters.
GUID-93006CF0-AED8-4CE8-B67F-C3019156CA0C V1 EN

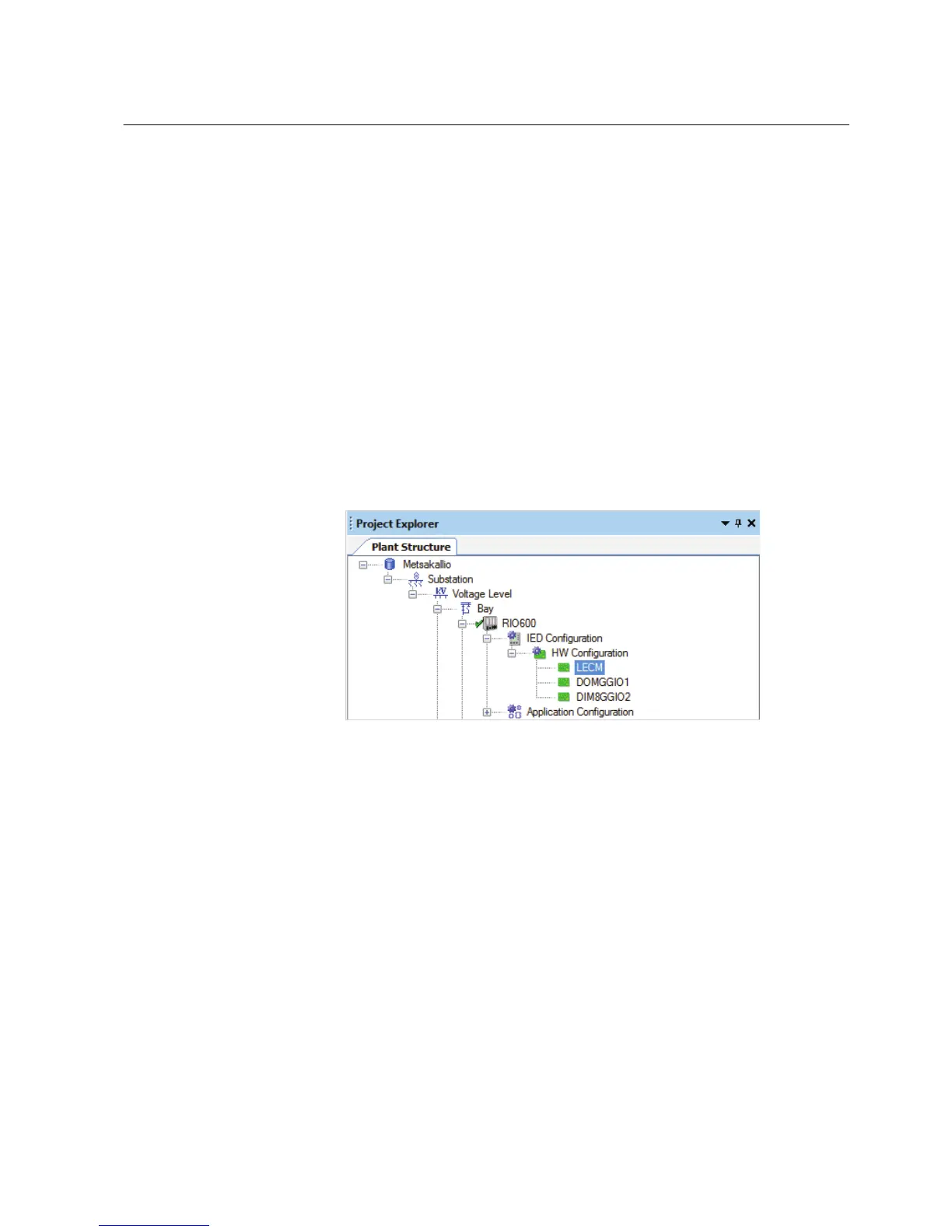

Figure 40: Selecting LECM to set communication parameters
2. Right-click LECM and select Parameter Setting to display the general,
communication and synchronization parameters in the Parameter Setting tool.
1MRS757489 A Section 4
Using the Parameter Setting tool
RIO600 39
Configuration Manual
