Operation Manual / TPL73-B.. - 85-B11/ -B12
8 Disassembly and assembly / 8.4 Removing and installing the filter si-
lencer
© Copyright 2018 . All rights reserved. HZTL2480_EN Revision D July 2018
8.4 Removing and installing the filter silencer
Removing filter silencer
u Remove insulation where necessary.

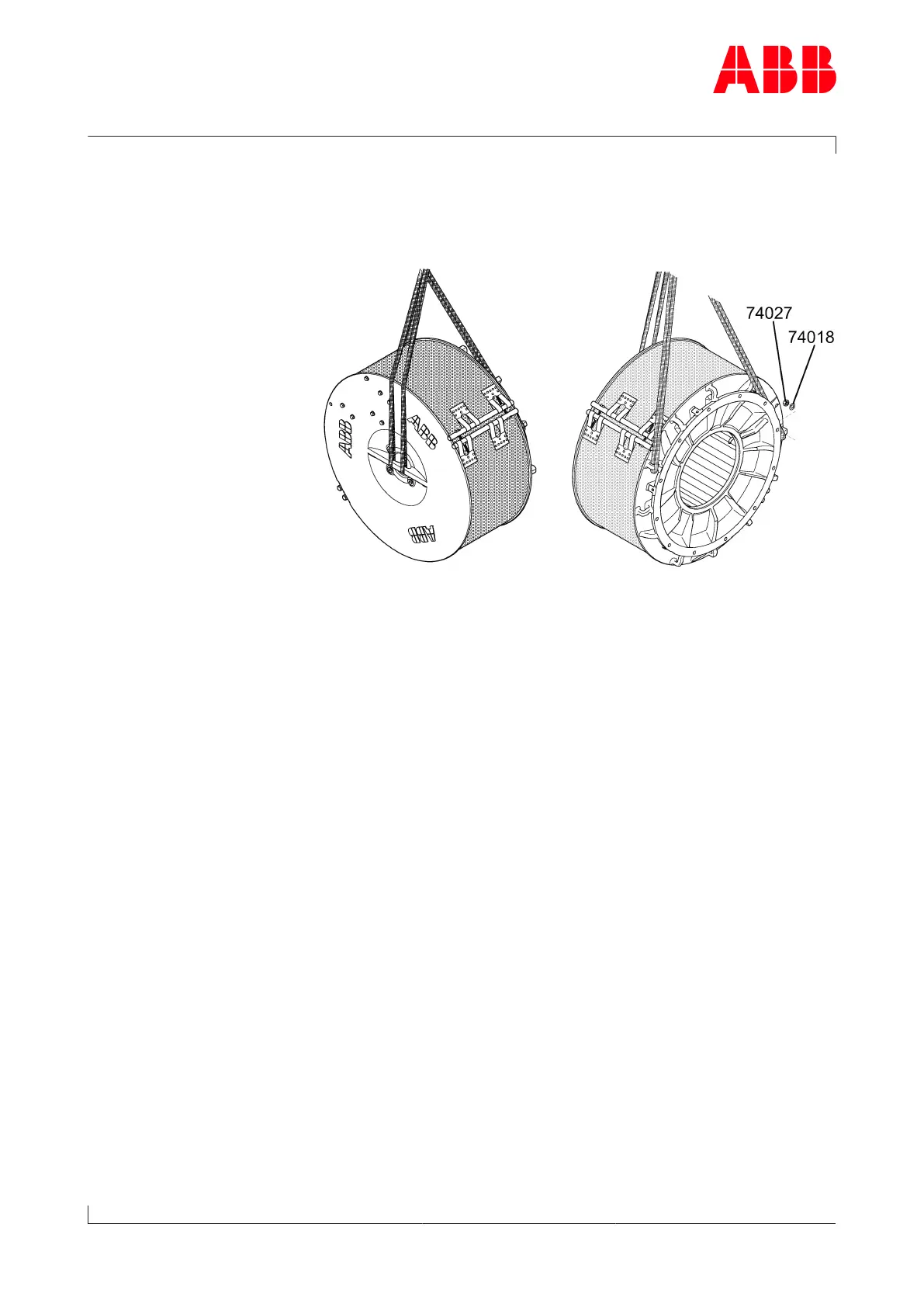

u Pass lifting gear through rib on filter silencer and through eyelets at
rear.
u Unscrew nuts (74027) and remove them together with washers
(74018).
u Remove filter silencer and it set down to one side.
Fitting the filter silencer
u Fit filter silencer in reverse order.
Page 99 / 151
