8.11 Dry-cleaning device

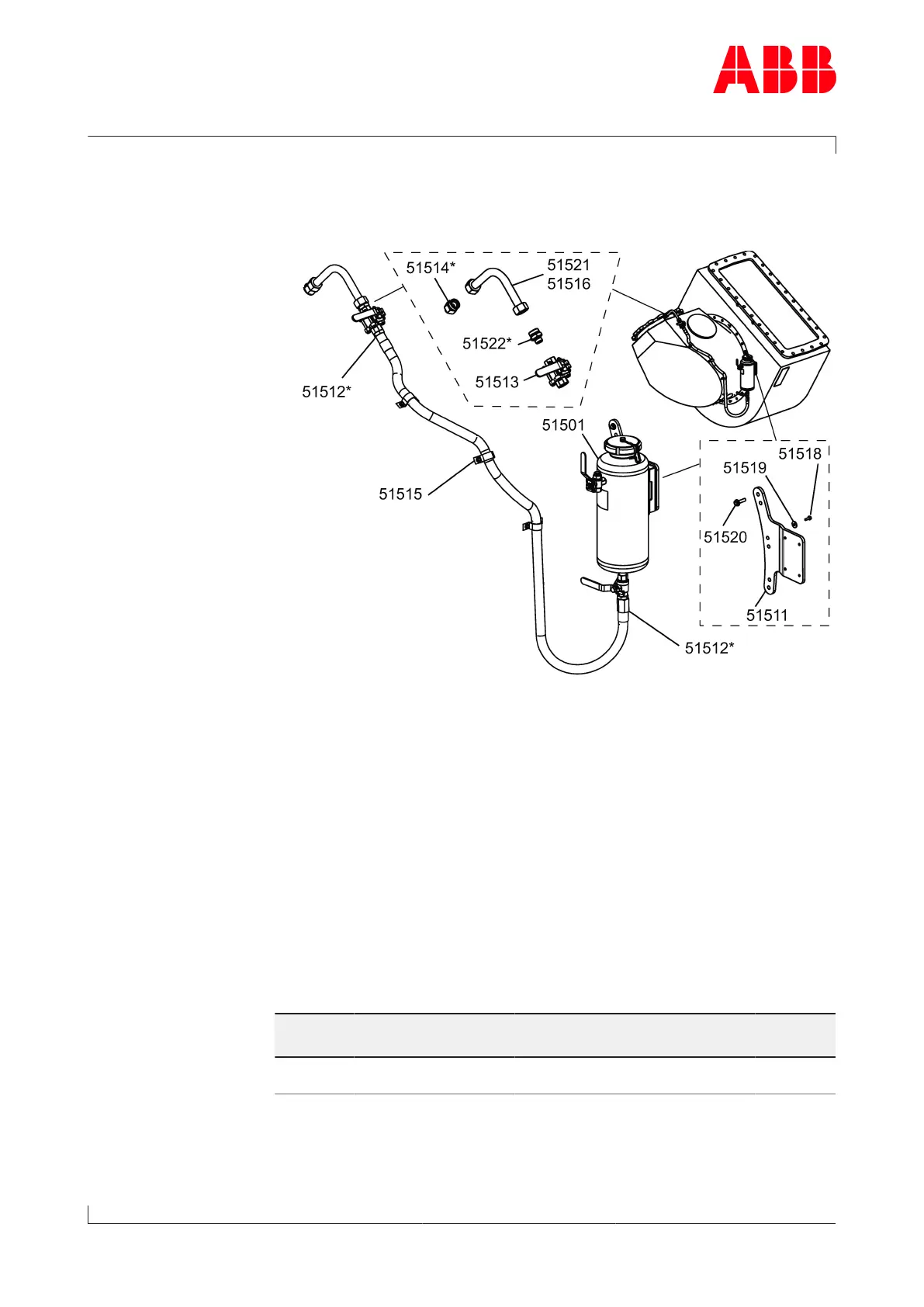

The assembly of the dry-cleaning device is described below.
Brush the thread of the parts marked with *) with high-temperature
grease.
u Fit the connecting plate (51511) onto the pressure vessel (51501) with
hexagon-head screws (51518) and washers (51519).
u Mount the connecting plate (51511) onto the gas outlet casing with
hexagon-head screws (51520).
u Fit the screw insert (51514*) onto the gas inlet casing.
u Fit the straight screw-in coupling (51522*) on the ball valve (51513)
and the pipe elbow (51521).
u Fit the pipe elbow (51521) onto the screw insert (51514*).
u Fit the hose (51512*) on the pressure vessel (51501) and on the ball
valve (51513).
u Fit clamps (51515) on the gas inlet casing.
Tightening torques [Nm]
51512
1)
51513
1)
51514 51515
51518
51520 51521 51522
1)
R3/4" –
G3/4"
G1/2" –
R1/2"
M18x1.5
80
M6
10
M8
25
M30x2
200
G1/2" –
G1/2A
1)
Screw in the screw connection hand tight at first, then tighten by another
2 to 3 turns.
