8.5 Axial clearance
WARNING
Physical hazards due to sharp edges on compressor wheel
The compressor wheel has sharp edges which can result in injury.
u Wear safety gloves.
Wear safety gloves to protect against mechanical hazards.

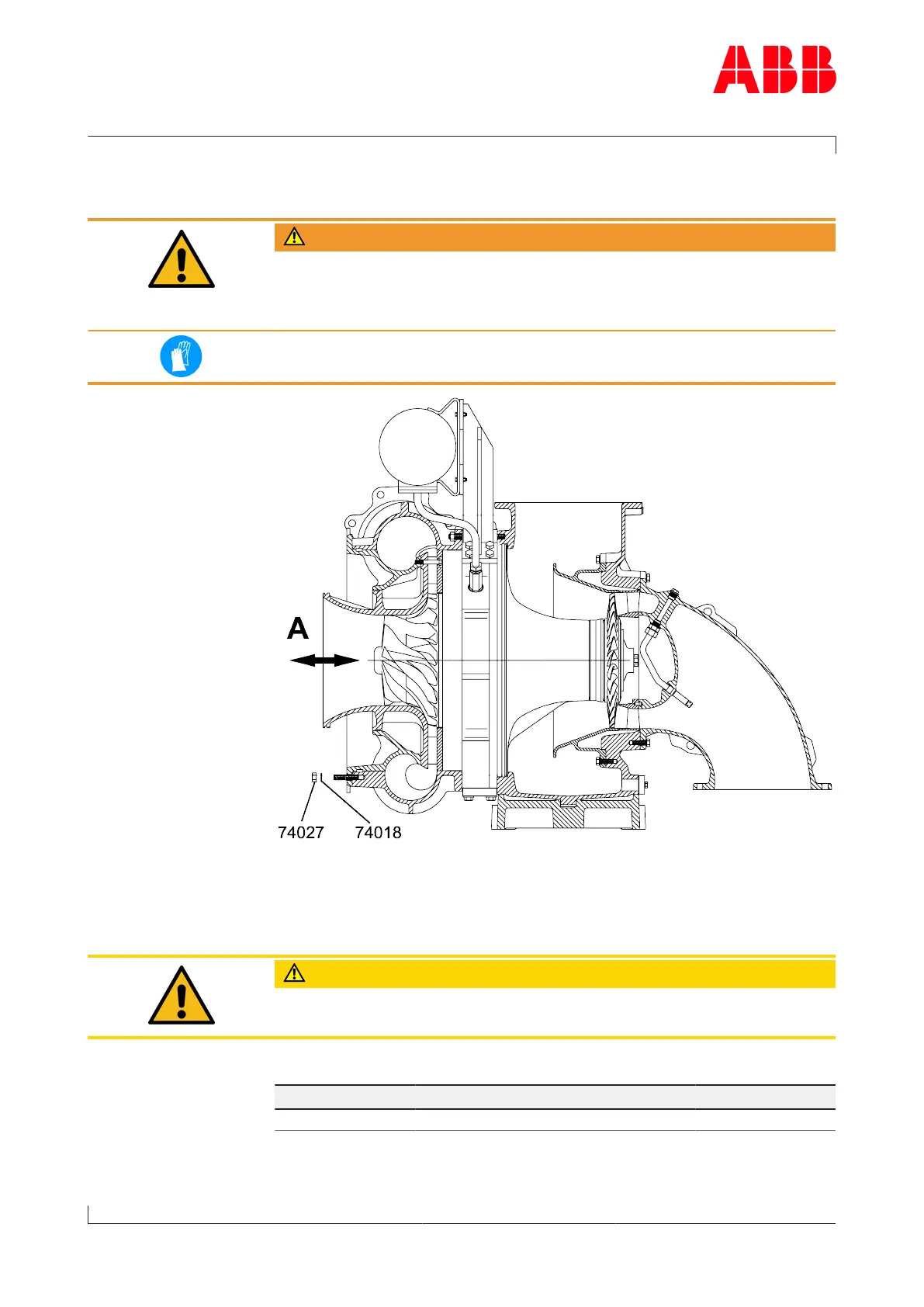

u Screw on at least four nuts (74027) along with washers (74018),
equally spaced around the circumference, and tighten them to secure
the partition wall axially.
u Measure and note the axial clearance (A).
CAUTION
If the axial clearance (A) is out of tolerance, an ABB Turbocharging Ser-
vice Station must be contacted.
Axial clearance A [mm]
TPL73-B TPL77-B TPL80-B TPL85-B
0.40 … 0.58 0.43 … 0.64 0.46 … 0.69 0.54 … 0.79
