Introduction 1 - 2 PN25080
TRIO-WIRL INSTRUCTION MANUAL
Remote Mounted Design: The converter remotely mounted up to 10m from the flowmeter primary..
1.2 Features
* No Moving Parts
* Common meter for liquid, gas and steam.
* DSP Converter with state-of-the-art digital filtering
technology provides immunity to the effects of
hydraulic noise and vibration.
* Selectable operating modes for volumetric or mass
flow rate.
* Configuration in hazardous areas by magnetic stick
without removing housing covers.
* Digital Communications using HART
®
, Profibus or
Foundation Fieldbus protocols.
* Common sensor and electronics for all size meters
* Optional integrated PT100 for temperature moni-
toring or mass calculations
* High accuracy / wide turndowns
1.3 Organization
The remainder of this instruction manual is organized
into four main sections:
* Swirlmeter (TRIO-WIRL S) Primaries
* Vortex (TRIO-WIRL V) Primaries
* TRIO-WIRL Converter
* Start-Up & Operation
Refer to the appropriate section for your meter fo
details on the following:
* Operating principles
* Assembly & Installation
* Electrical Interconnections
* Start-up Procedures

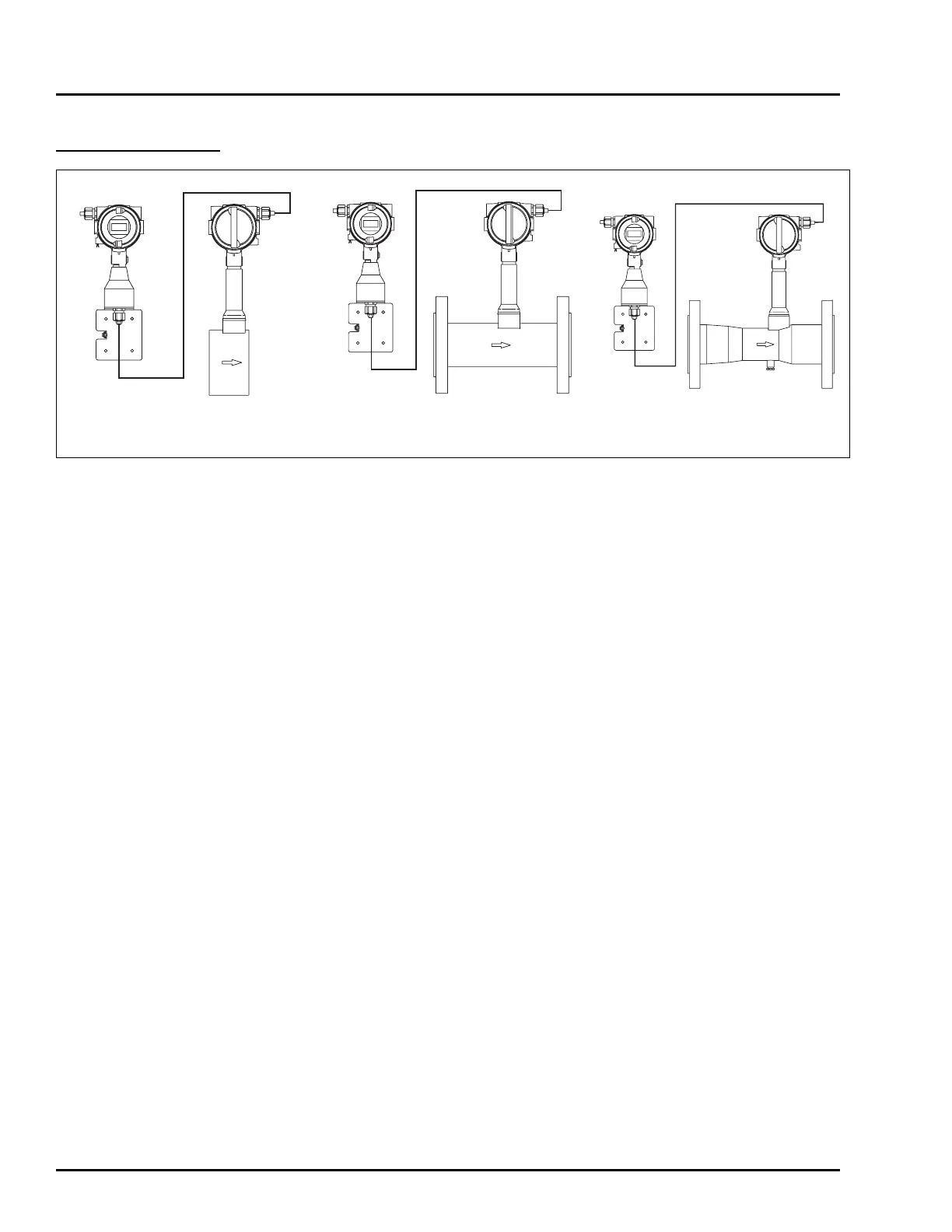

Vortex Flowmeter
TRIO-WIRL VR
Wafer Design
Vortex Flowmeter
TRIO-WIRL VR
Flanged Design
Swirl Flowmeter
TRIO-WIRL SR
Flanged Design
