TRIO-WIRL INSTRUCTION MANUAL
2.5.3 Saturated Steam [lb/h]
2.5.3.1 Example for Saturated Steam:
Find the flow range for a 2” /DN50 meter size at 60 psig.
1. Table 2-4 shows the range for a 2” / DN50 meter is 110 -
2120 lb/h (always use the next highest pressure rating).
Additional information: Sat. steam temp.= 307 °F

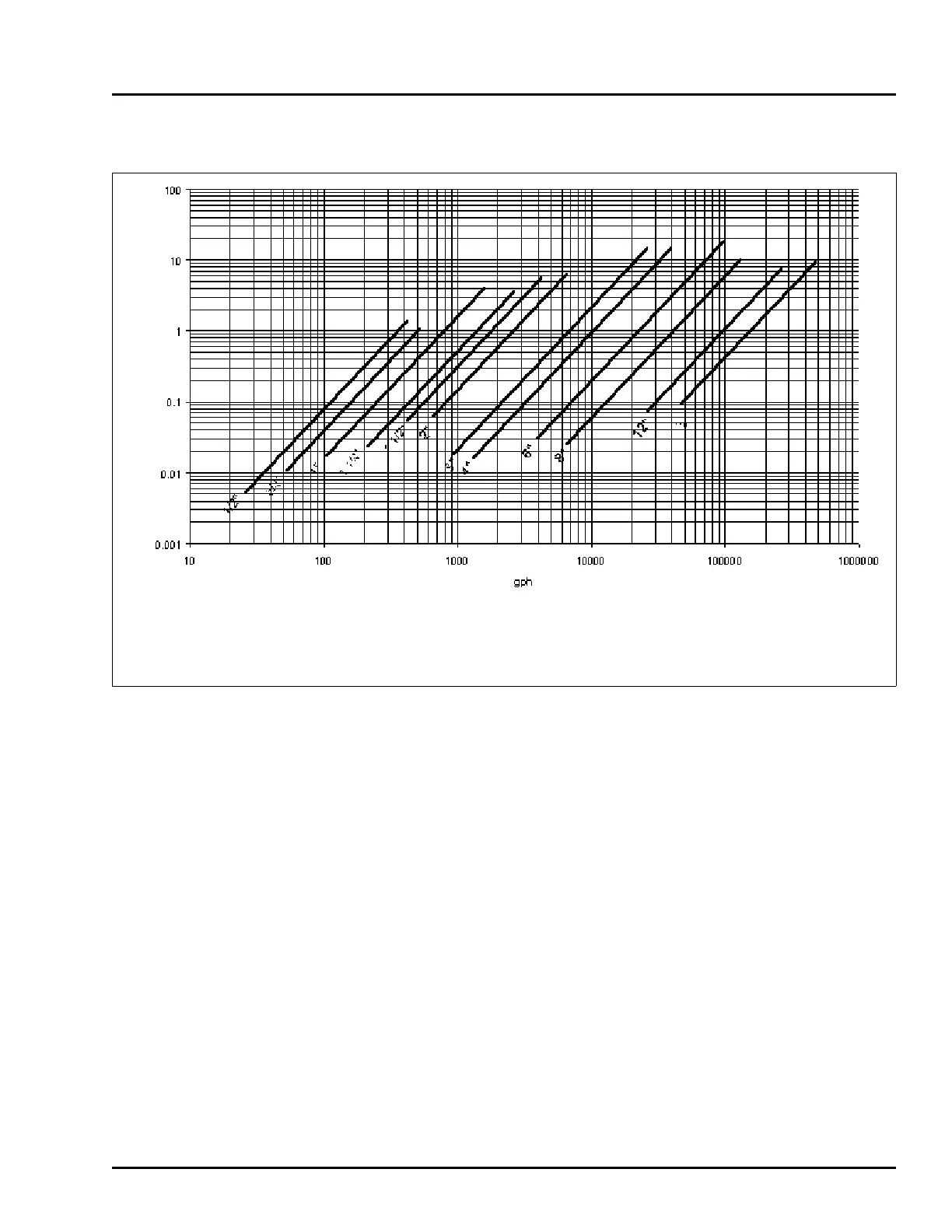

FIGURE 2-11 PRESSURE DROP, WATER ( @ Ρ = 8.34 LB/GAL )
∆p [psi]
1
6
"
