AG Duo Operation Manual
AR / 25.07.23 / Version 1 28
4.3.4 SWEEPING BRUSH ANGLE
To ensure that the brush sweeps old bedding away from the cubicles, only the front of the
brush should be in contact with the cubicle surface.

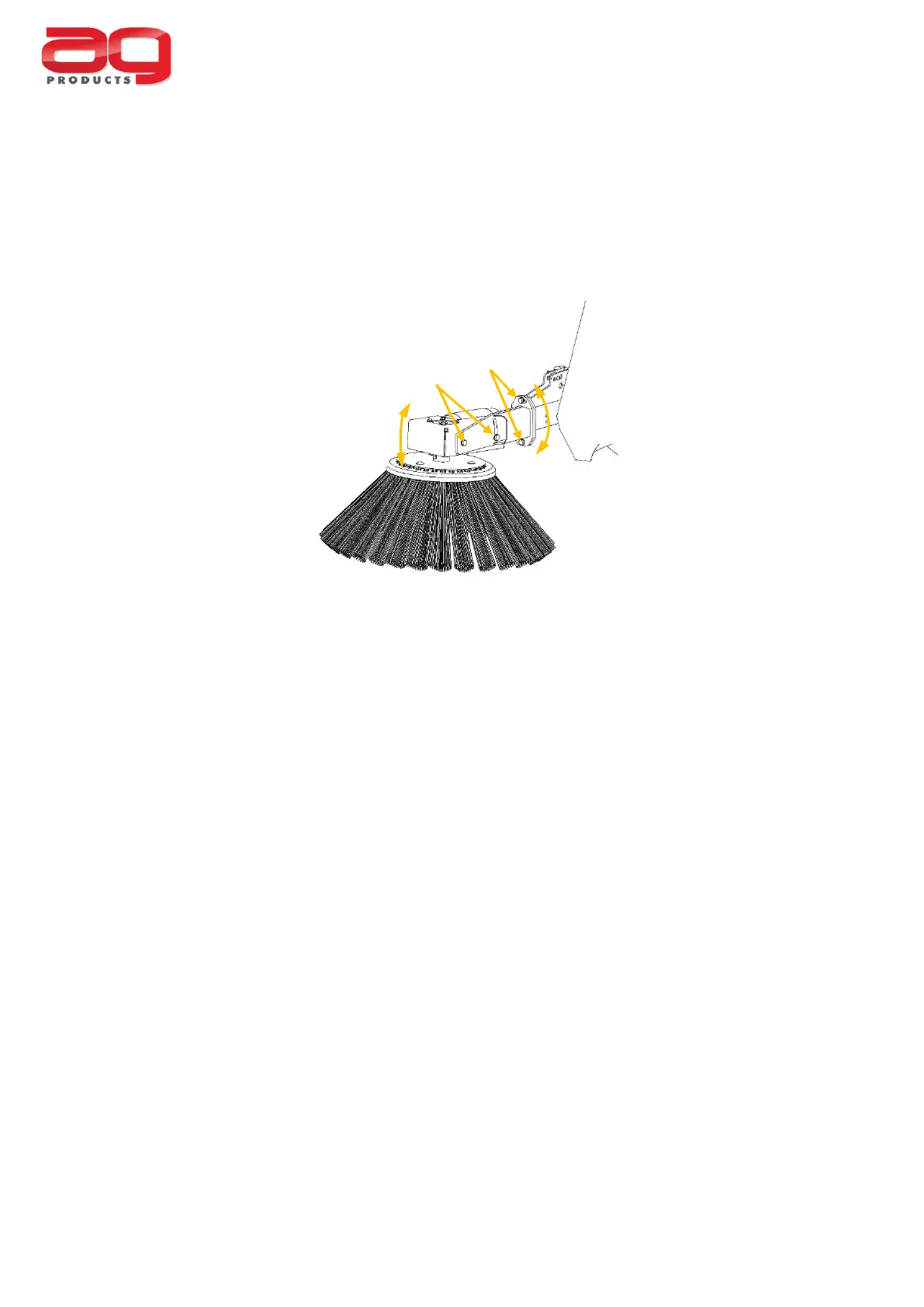

This can be achieved by adjusting the brush head using two adjustments. This adjustment
may be necessary if the height setting has been changed.
• Adjustment using the screws at position 1 tilts the brush from side to side. The
recommended position is with the brush set approximately parallel to the cubicle
surface.
• Adjustment using the screws at position 2 will tilt the brush head forwards and
backwards. The recommended position is with the brush tilted slightly forwards so
that only the front of the brush contacts the cubicle surface.
