AG Duo Operatio
n Manual
AR / 25.07.23
/ Version 1
46
6.5

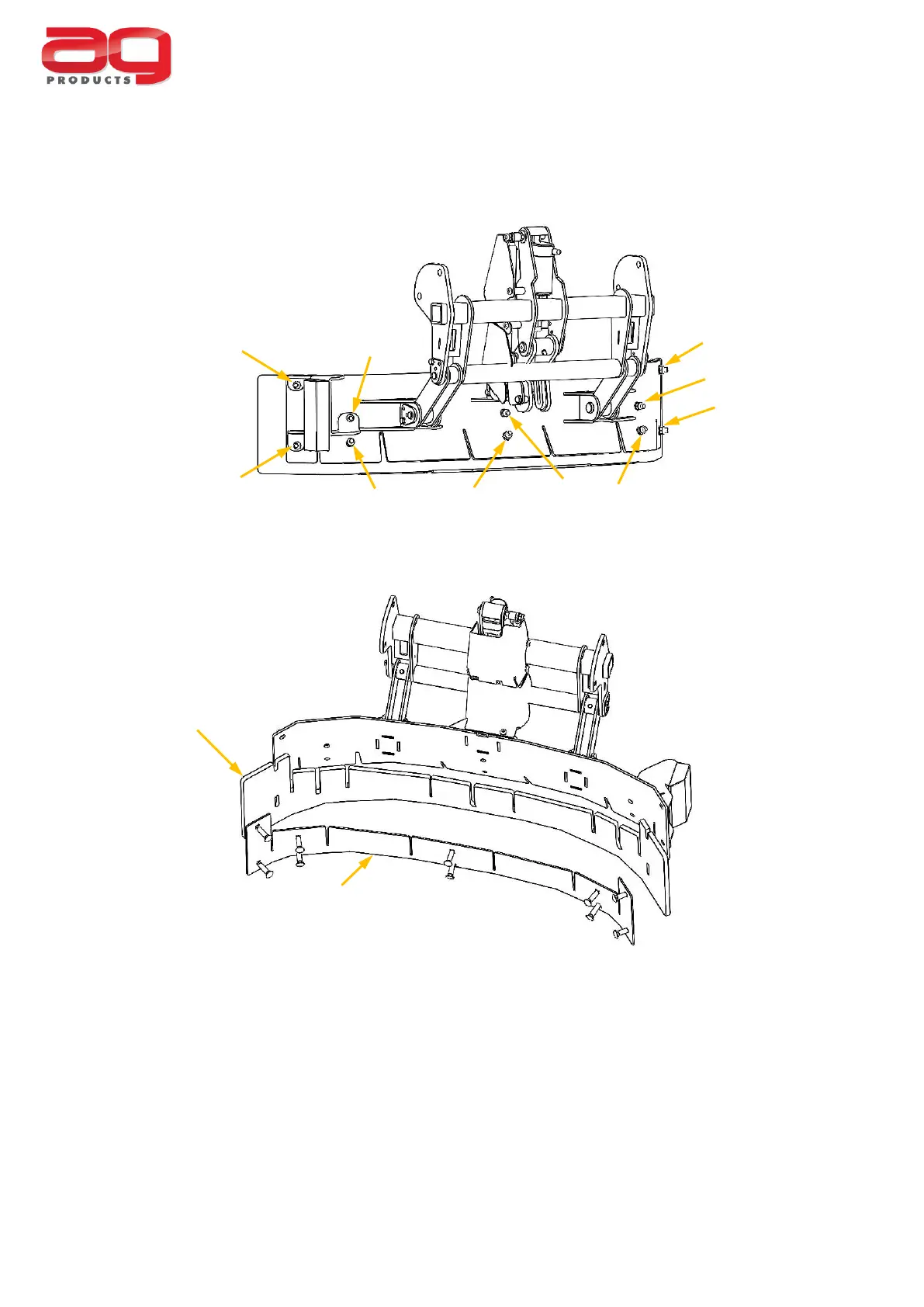

SCRAPER BLADE REPLACE
MENT
•
Remove the 10 nut
s as indicated
on the rear of the s
craper.
•
The metal front pla
te and the scraper b
lade can then b
e removed.
Scraper Blade
Front Plate
49
51
Table of Contents
Default Chapter
2
Table of Contents
2
1 Introduction
5
Foreword
5
Safety
5
Safety Principles
5
Intended Use
6
Misuse
6
Safety Signs
7
Isolating the Ag Duo
9
Applying the Parking Brake
10
Emergency Stop
11
Transport and Lifting
12
Before Operating the Ag Duo
15
When Operating the Ag Duo
15
When Servicing and Adjusting the Ag Duo
16
Additional Safety Measures When Handling the Battery
17
When Cleaning and Storing the Ag Duo
17
2 About the Ag Duo
18
Brush
18
Axle
18
Qr Code
19
Hopper Cover
19
Scraper
19
3 Specifications
20
Outline Dimensions
20
Technical Specifications
20
Airborne Noise Emissions
21
Machine Identification
21
4 Operation and Settings
22
Charging the Ag Duo Prior to Use
22
Controls
24
Adjustments
27
Metering Shutter
27
Conveyor and Auger Speeds
28
Sweeping Brush Height
30
Sweeping Brush Angle
32
Fault Conditions & Recovery
33
Overload Reset
33
Blockage Removal
33
Circuit Breaker
34
Emergency Stop
35
5 Maintenance
36
Service Schedule
36
In Storage
37
Greasing Points
38
Conveyor Belt Alignment and Adjustment
41
Conveyor Drive Belt Tension
43
Agitator and Auger Chain Adjustment
45
Scraper Blade Adjustment
46
6 Replacement of Service Items
47
Brush Replacement
47
Conveyor Belt Replacement
48
Conveyor Roller Replacement
48
Conveyor Side Skirt Replacement
49
Scraper Blade Replacement
50
Skid Block Replacement
51
Battery Replacement
52
7 Troubleshooting
53
8 Spare Parts Identification
55
Agitator, Auger & Chain Drive
56
Shutter
57
Conveyor
58
Brush & Arm
59
Wheels & Axles
60
Brush Actuator
61
Covers and Panels
62
Scraper (Option)
63
Electrical
64
9 Battery Charger Operating Manual
66
10 Terms, Conditions and Warranty
69
Standard Terms and Conditions
69
Quality of Translations
73
Safety
73
Ag Products Dealer Warranty Process
75
