AG Duo Operation Manual
AR / 25.07.23 / Version 1 42

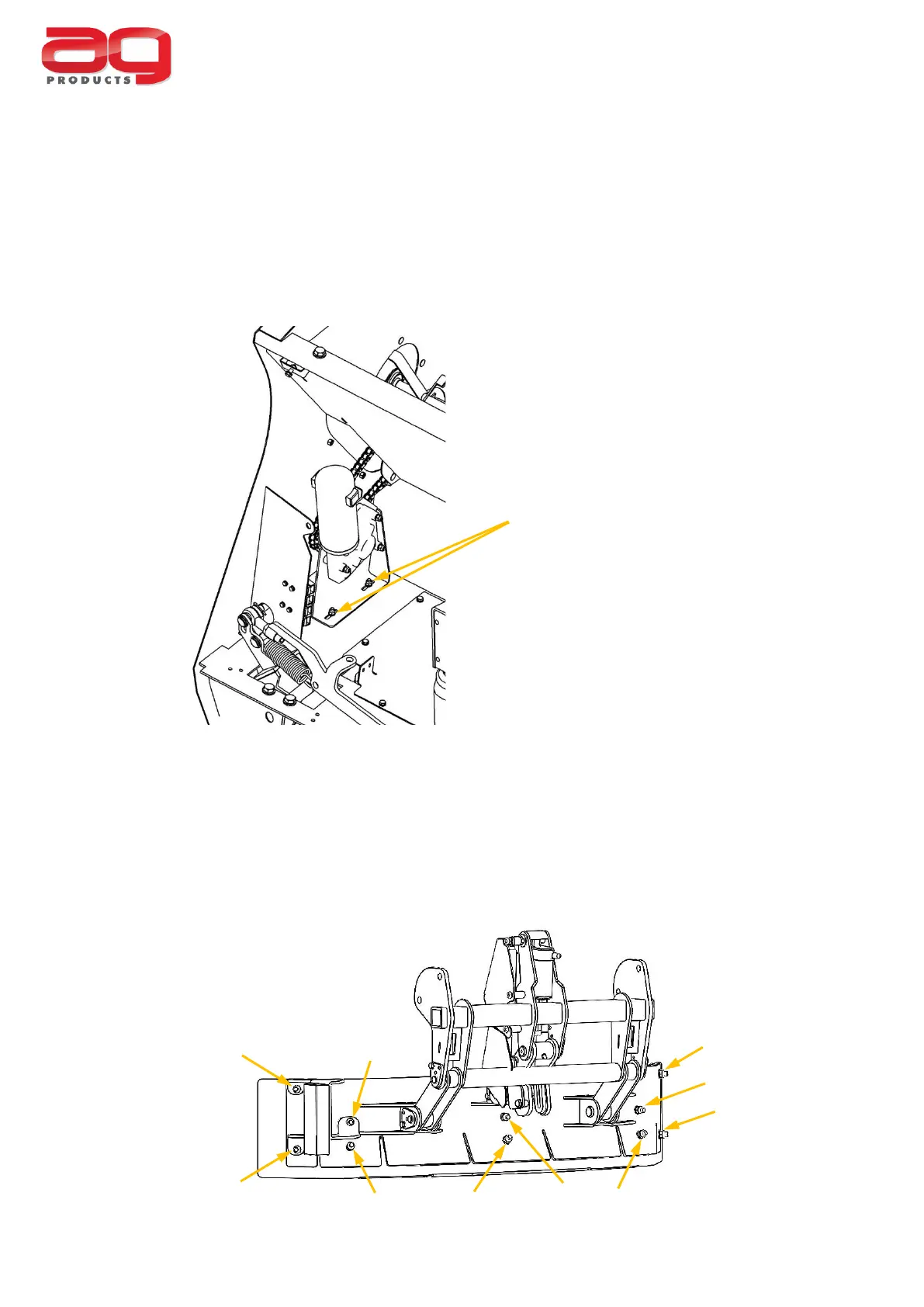

The agitator chain can be tensioned by loosening the four nuts at the corners of the chain
adjusting the plate and adjusting the position of the plate to achieve the correct chain mid-
span deflection as shown in the above diagram. Re-tighten the four nuts.
The auger chain can be tensioned by loosening the two nuts that secure the auger motor
bracket and adjusting the position of the bracket to achieve the correct chain mid-span
deflection as defined in the above diagram. To access the auger motor, remove the front
moulded black cover.
5.6 SCRAPER BLADE ADJUSTMENT
Some vertical adjustment of the Scraper Blade is available to compensate for blade wear.
Slacken the 10 nuts as indicated on the rear of the scraper to adjust.
