Chapter 8 I/O Modules

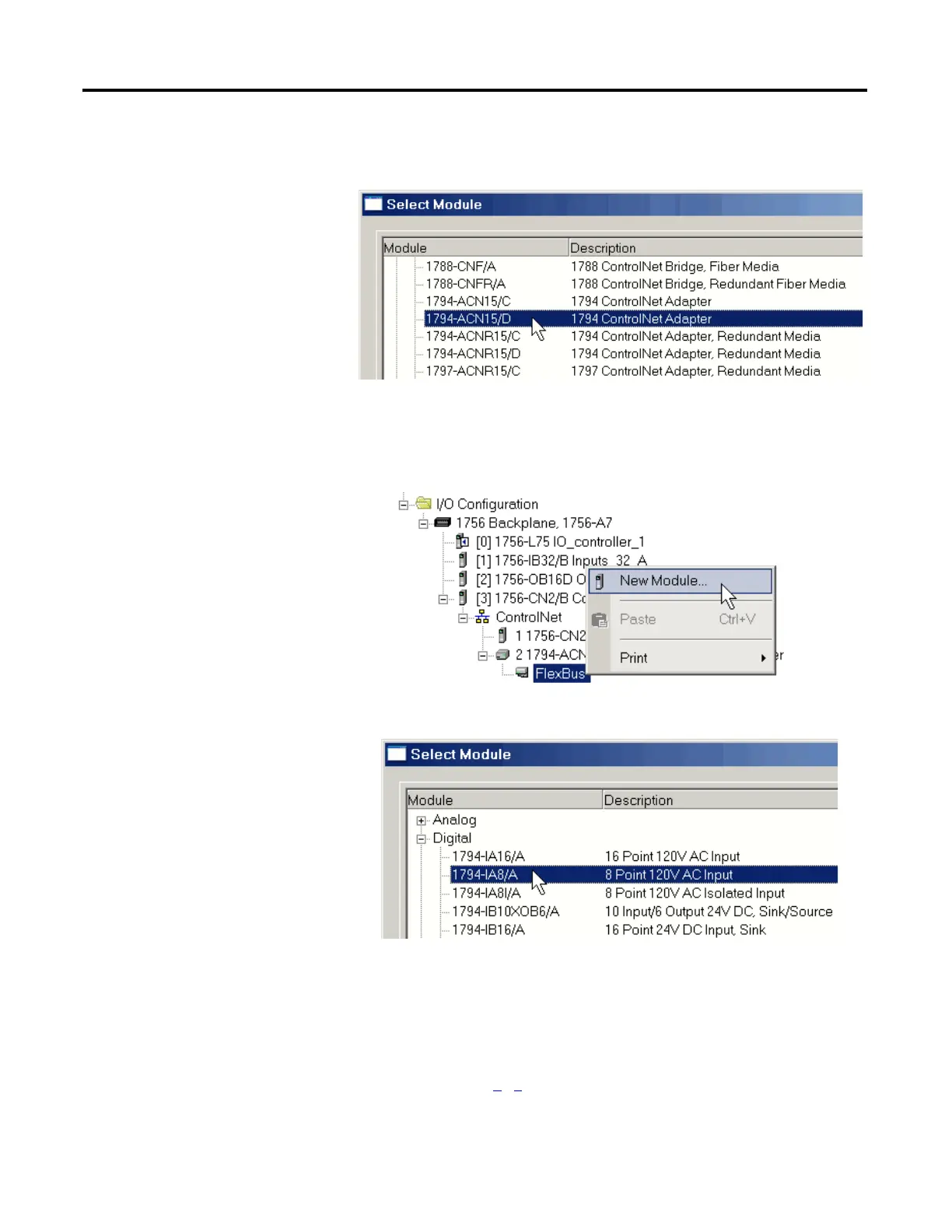

4. Add the communication adapter for the distributed I/O platform you are
using.
5. Specify the module and connection properties according to your network
configuration.
6. Right-click the bus of the newly-added communication adapter and
choose New Module.
7. Select the I/O module you want to add and click OK.
8. Specify the Module Properties according to your module and application.
For more information about the module configuration properties, see the
user manual for the I/O module you are adding.
9. Add any other I/O modules you are using in this bus.
10. Complete steps 1
…9 until your remote I/O network and distributed I/O
modules are configured in RSLogix 5000 software.
