32 Rockwell Automation Publication 1756-UM001M-EN-P - February 2012
Chapter 2 Install the 1756-L6x Controller
Lithium Batteries
Before You Begin
Complete these tasks using the appropriate resources listed as references
beforeyou install your controller and power supply.
1756-L6x Controller Parts
These sections describe parts that are included with the 1756-L6x controllers, as
well as available accessory parts.
These parts are included with your controller:
• Battery
– For series A controllers, catalog number 1756-BA1
– For series B controllers, catalog number 1756-BA2
– Key, catalog number 1747-KY

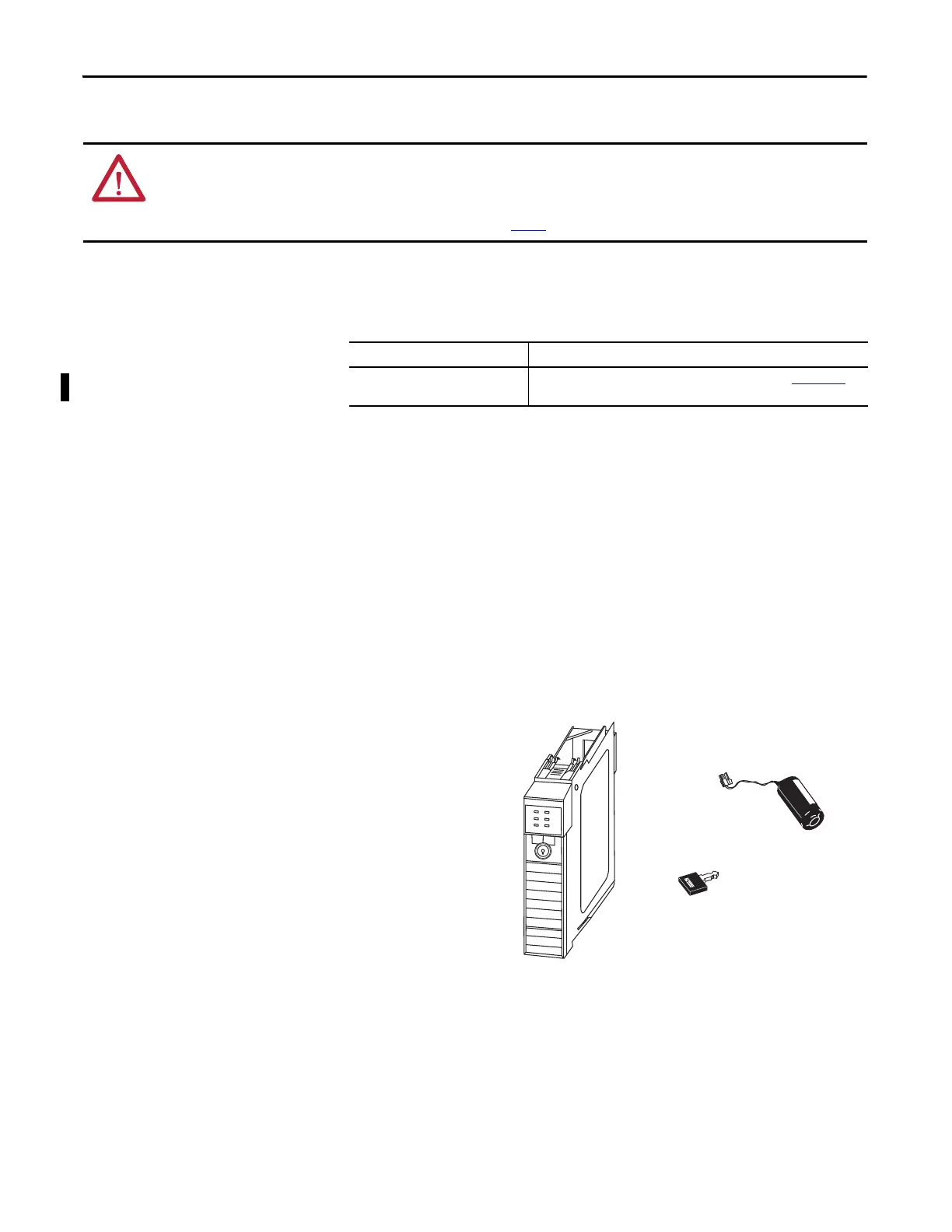

Figure 2 - Parts Included with the 1756-L6x Controller
WARNING: When you connect or disconnect the battery an electrical arc can occur. This could cause an explosion in
hazardous location installations. Be sure that the area is nonhazardous before proceeding.
For safety information about handling lithium batteries, including handling and disposal of leaking batteries, see
Guidelines for Handling Lithium Batteries, publication AG 5-4
.
Task Resources
Install a ControlLogix® Chasis and
Power Supply
Refer to ControlLogix Chasis and Power Supplies, publication 1756-IN005
Logix 5563
RUN
RUN
I/O
RS232
OK
BAT
FORCE
REM
PROG
1756-L6x Controller
1747-KY Key
1756-BA1 or 1756-BA2
